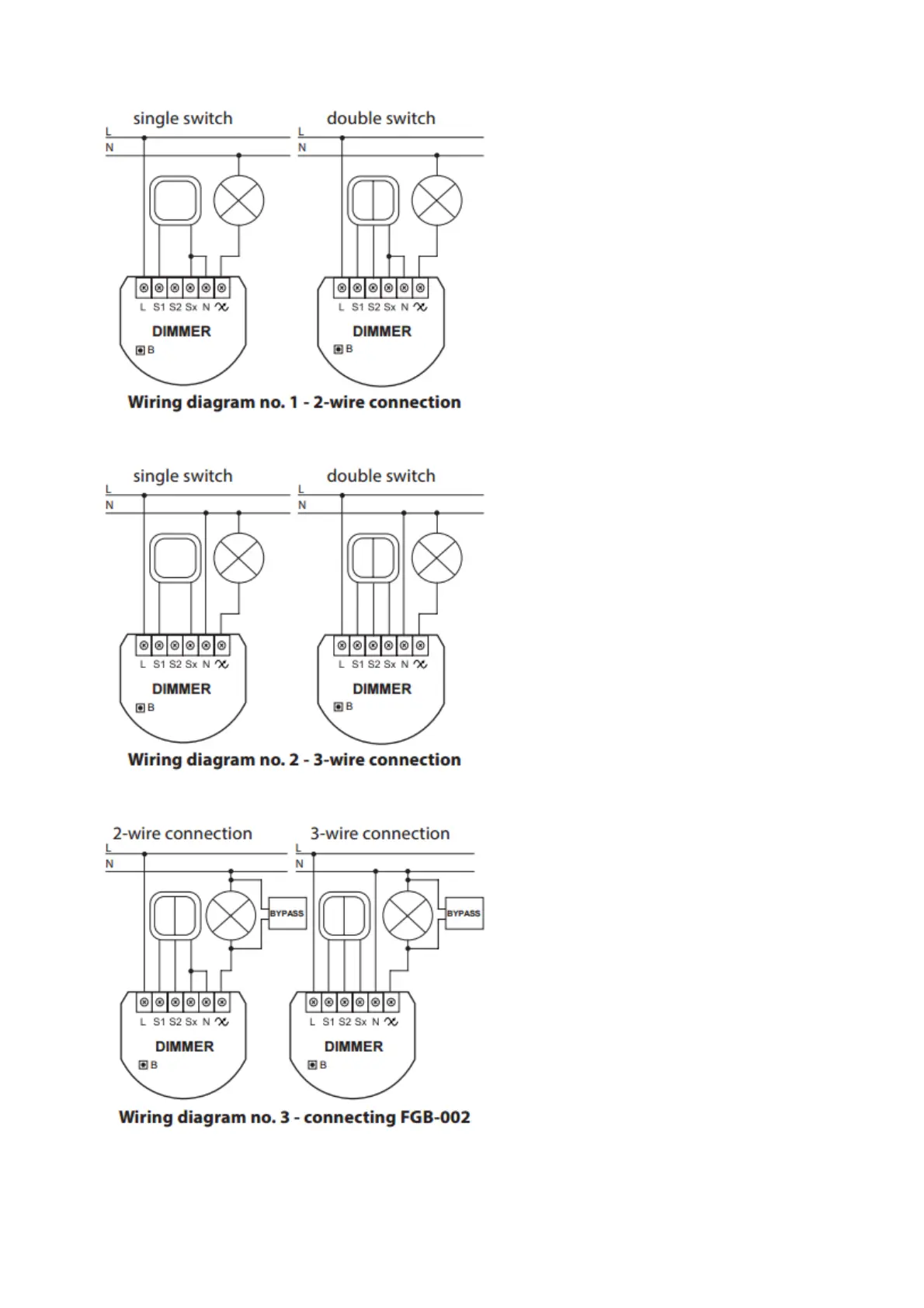

3. Connect with one of following the diagrams:
NOTE: Switch connected to the S1 terminal is a master switch. It activates the basic functionality of the Dimmer 2 (turning the light on/off, dimming) and starts the
learning mode (Add/Remove). The switch connected to the S2 terminal is an optional switch and pushing it without changing the configuration parameters will not
affect the status of the device. Functionality of the switches can be reversed by adjusting advanced parameter.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the FIBARO Dimmer 2 and is the answer not in the manual?

FIBARO Dimmer 2 Specifications

General IconGeneral
Wireless ProtocolZ-Wave
Dimming Range0-100%
Protection ClassIP20
Maximum Load250W (resistive load)
Operating Temperature0°C to 35°C
Z-Wave Frequency868.4 MHz (EU) / 908.4 MHz (US) / 921.4 MHz (ANZ)
Rated Load Current1.1 A
Output Power250 W (incandescent), 150 W (LED)
RangeUp to 50m outdoors
Dimensions42.5 mm x 38.25 mm x 20.3 mm
