FiberHome HG6143D User Manual

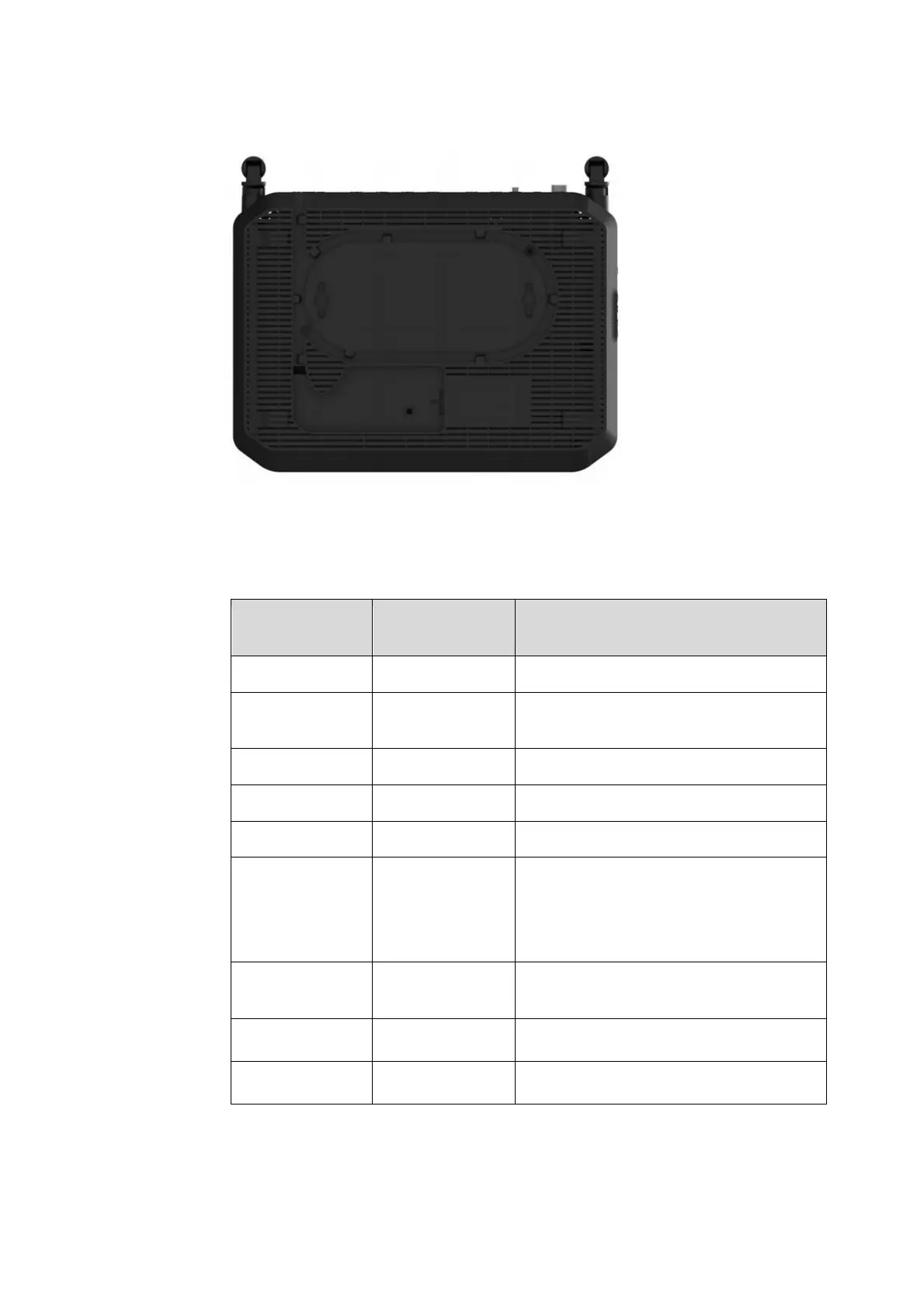

Figure 2-4 Bottom Panel of the HG6143D
Table 2-3 describes the interfaces and buttons on the HG6143D.
Table 2-3 Interfaces and Buttons on the HG6143D
Interface and
Button
Description
Function
Phone
Telephone interface
Connects to the subscriber's telephone.
LAN1 to LAN4
Ethernet port
Connects to the computer, IP router or IP set
top box.
USB
USB Host interface
Connects to the USB interface storage device.
Power
Power interface
Connects to the power adapter.
On/Off
Power switch
Turns on or off the power for the equipment.
Reset
Reboot button
Press down the button for no more than five
seconds to reboot the equipment; press it down
for a longer time to restore the factory settings
and reboot the equipment.
WLAN
WLAN function
button
Enables / disables the WLAN function.
WPS
WPS function
button
Enables / disables WLAN data encryption.
PON
Fiber interface
Connects with the optical fiber for uplink
access.
Indicator LEDs

FiberHome HG6143D Specifications

General

DSL WAN	-
Ethernet WAN	Yes
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
3G	No
USB version	2.0
RJ-11 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	4
Output current	1.5 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	17 W
Voice codecs	G.711a, G.711u, G.722, G.729A, G.729B
Product type	Tabletop router
Product color	Black
LED indicators	Power, USB, WLAN, WPS
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	- Mbit/s
Operating temperature (T-T)	-5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Antennas quantity	2

Weight and Dimensions

Depth	149 mm
Width	204 mm
Height	36.8 mm
Weight	339 g
