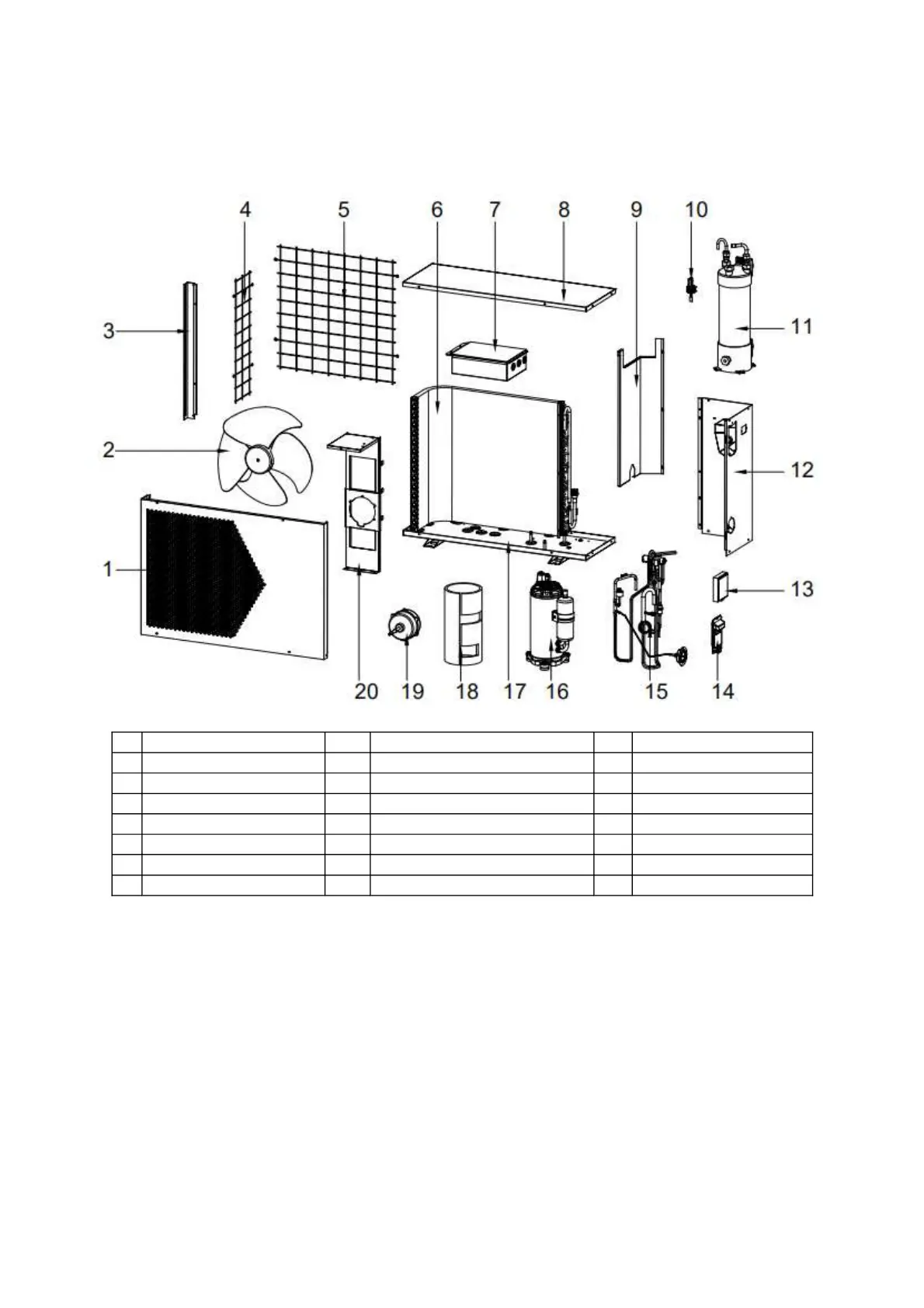

1. Exploded View
1 Front plate 9 Middle plate 17 Chassis component
2 Fan 10 Water flow switch 18 Silencer cotton
3 Stand pillar 11 Titanium heat exchanger 19 Motor
4 Protection net 1 12 Right plate 20 Motor support
5 Protection net 2 13 Controller box
6 Evaporator 14 Handle
7 Electrical box 15 Cooper pipe component
8 Top cover 16 Compressor
