Unit Sizing:
BTU/HR Input Diameter Of Vent Pipe To
Power Venter
Flue Pipe Transition Size
Diameter
50,000 3” 3” TO 4”
75,000 4” None Required
100,000 4” None Required
125,000 4” None Required
Maximum Pipe Length - (3) 90° Elbows, 30 feet of vent pipe and reducer or increaser if required.
Minimum Pipe Length - (1) 90° Elbow, 5 feet of vent pipe and a reducer or increaser if required.

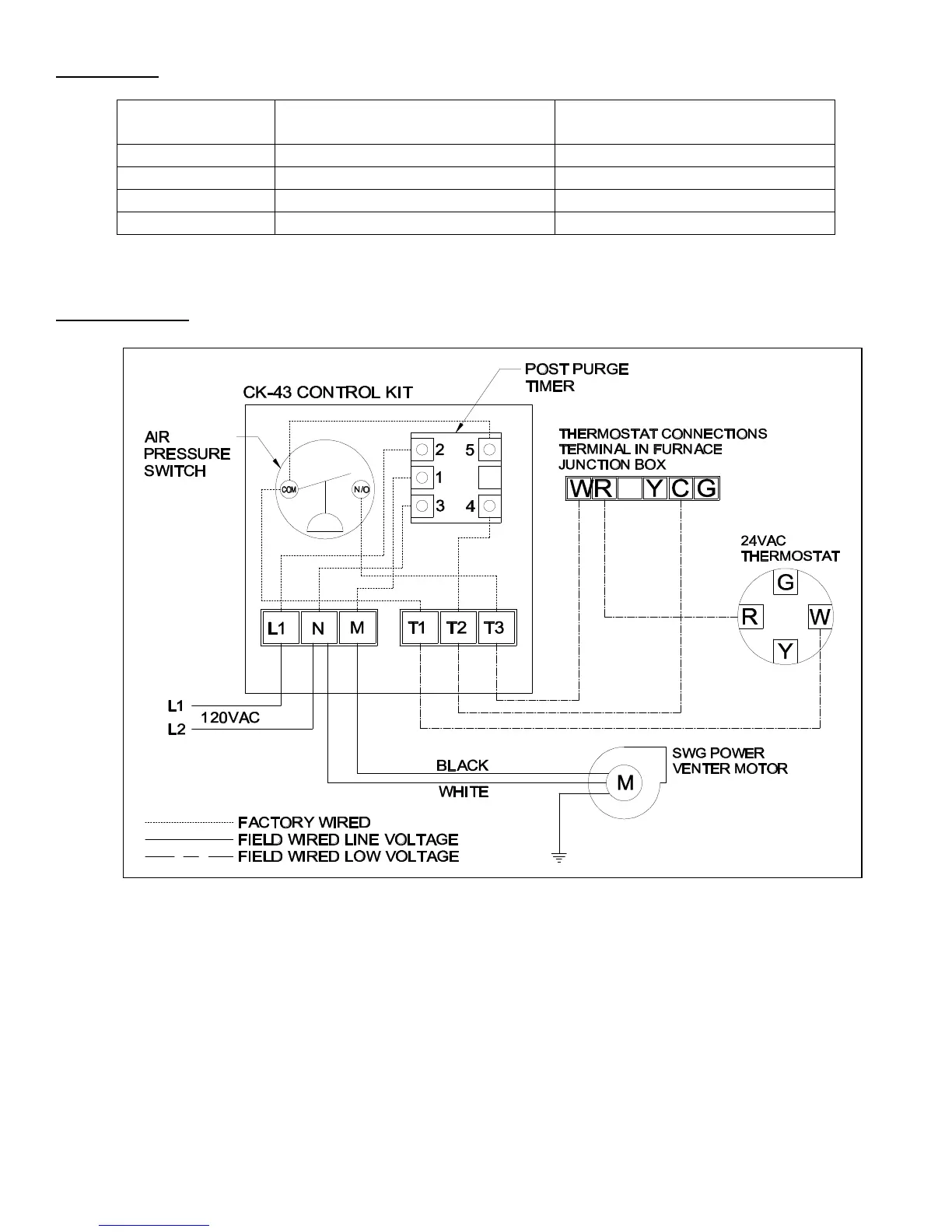

General Wiring
For complete installation information refer to the Field Controls SWG-4IC Power Venter Installation
Manual for details (P/N 46201400.)
