Field Controls CAS-4 - Page 10

page 10
Note: Pressure sensing tubes
of CK Control Kits needs to
be “teed” together the hooked
up to SWG, DI, or PV Unit.
Note: DIP 1 needs to be
“teed” into pressure
sensing tube on CAS 4.

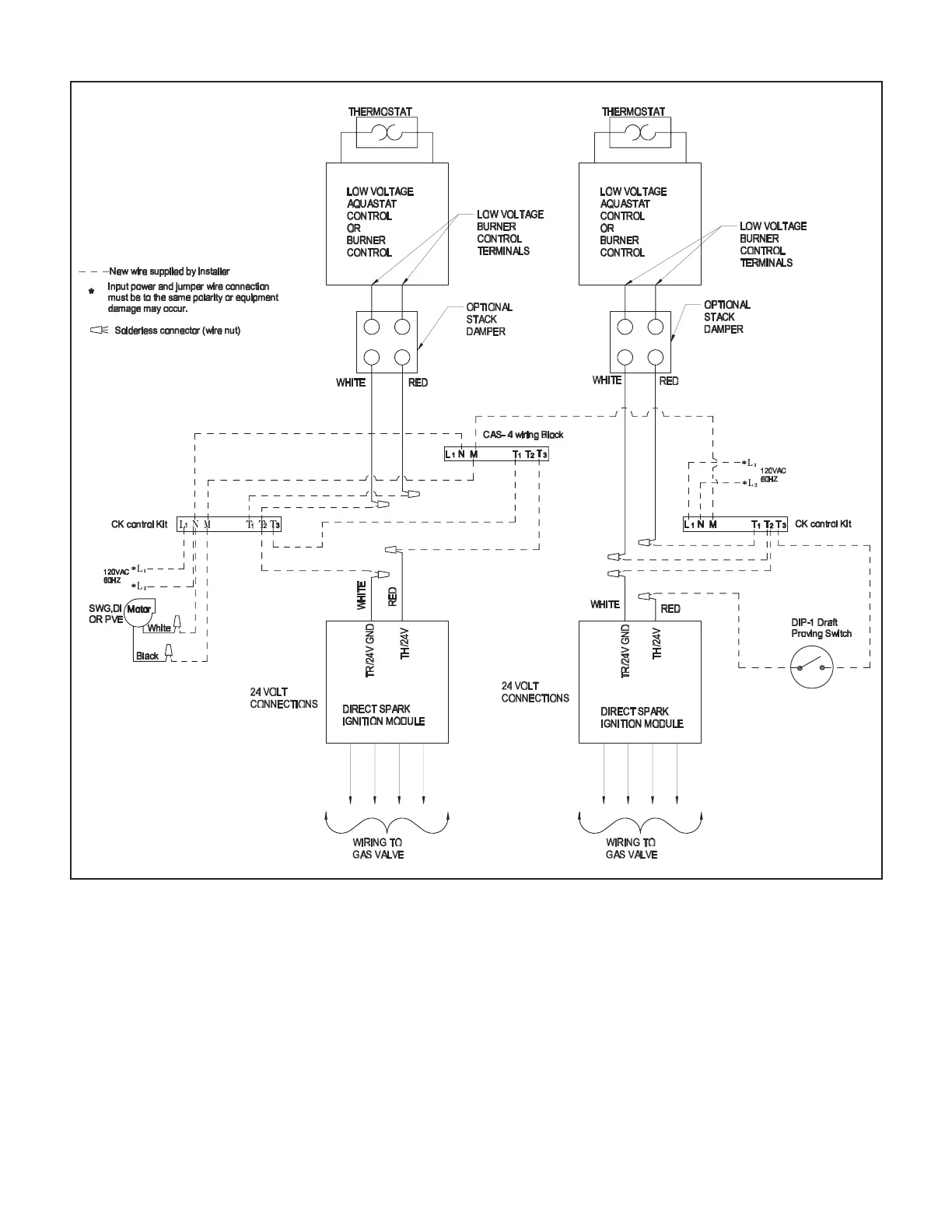

Figure 11- One Power Venter Two 24V Gas Appliances With DIP-1
