INSTALLATION
Align the holes in the circular cover plate with the holes in the motor mount bracket on the motor 1.
assembly. (See Figure 3)
Slide the motor assembly onto the protruding threaded studs on the power venter body with the exhaust 2.
chute pointing downward, and replace the nuts securely to the threaded studs. (See Figure 3)
Use the top knockout on the electrical box and reattach the flexible conduit and wires to the motor using 3.
the conduit connector and wire nuts. Secure the cover on the electrical box.
Seal around the edge of the motor mount bracket with the provided high temperature silicone sealant. 4.
Install the motor cover with the side louvers pointing downward. (See Figure 1)

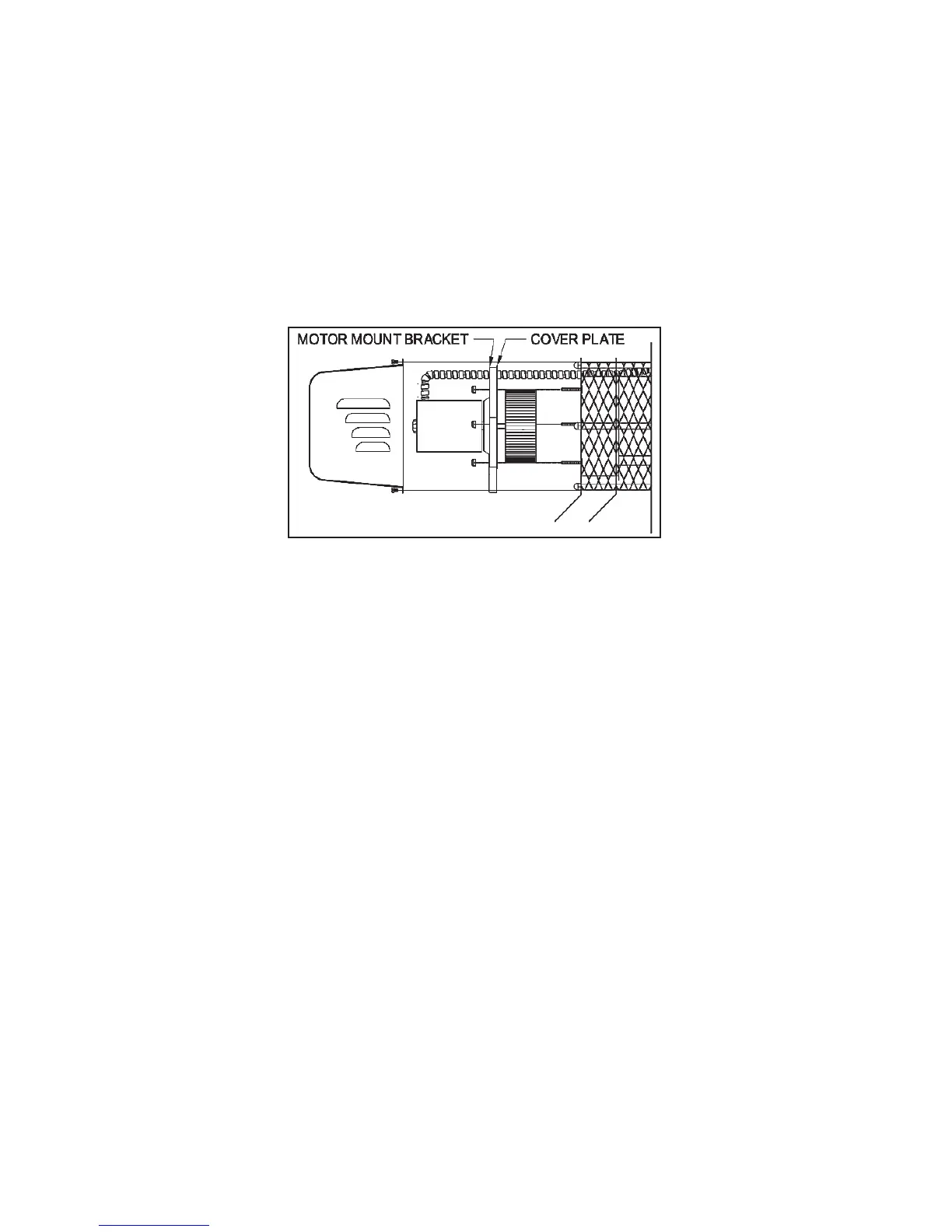

Figure 3
