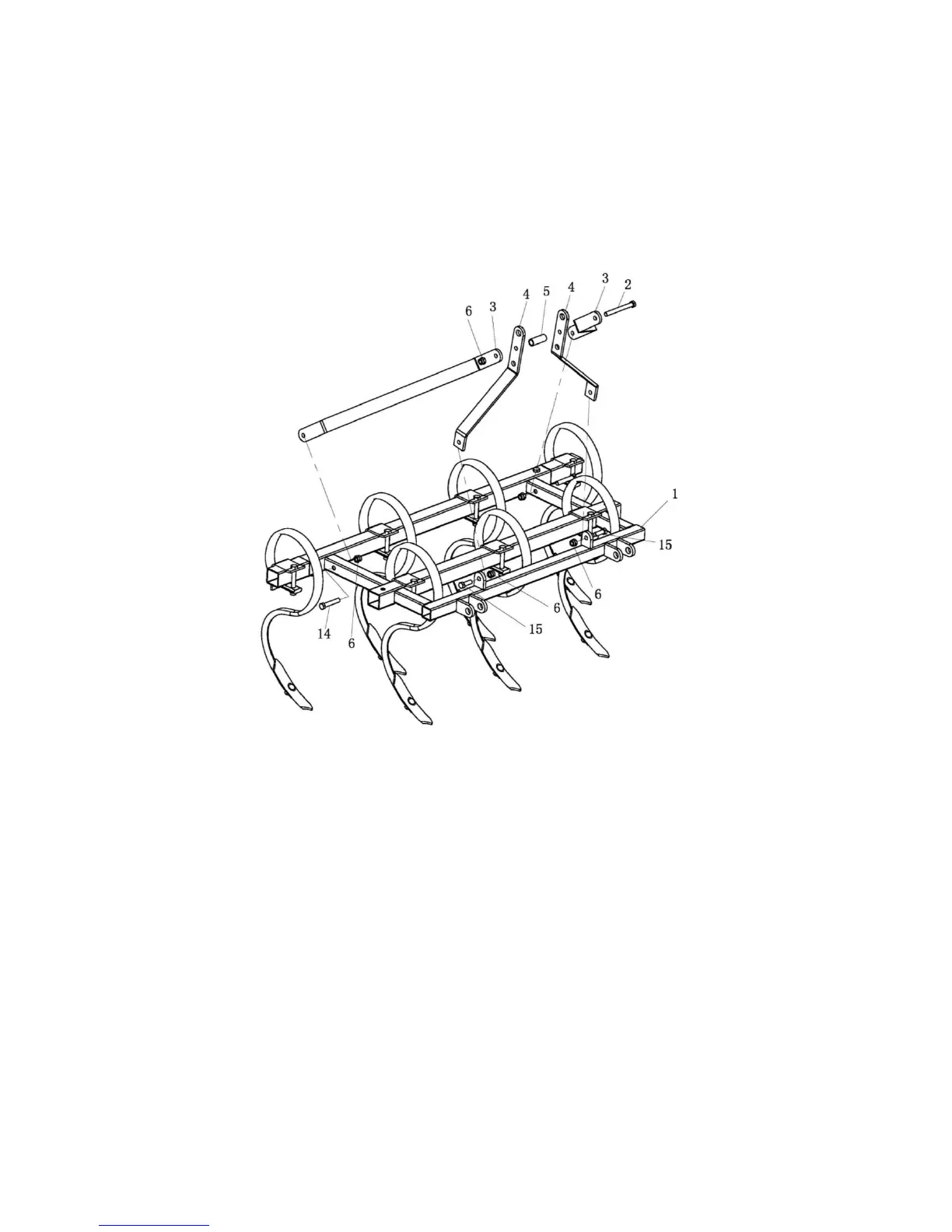

Step #3:
Attached two Long Support Brackets (#3) to the Frame (#1), using two Hex Bolts (#14) and two Hex
Lock Nuts (#6).
Step #4:
Attach two Short Support Brackets (#4) to the Frame (#1), using two Hex Bolts (#15) and two Hex
Lock Nuts (#6).
Step #5:
Connect the Long Support Brackets (#3) and the Short Support Brackets (#4), using one Hex Bolt
(#2), one Spacer (#5), and one Hex Lock (#6).
MAINTENANCE
• Maintain your Cultivator. It is recommended that the general condition of any Cultivator be
examined before it is used. Keep your Cultivator in good repair by adopting a program of
conscientious repair and maintenance. If any abnormal vibrations or noise occurs, have the
problem corrected before further use. Have necessary repairs made by qualified service
personnel.
