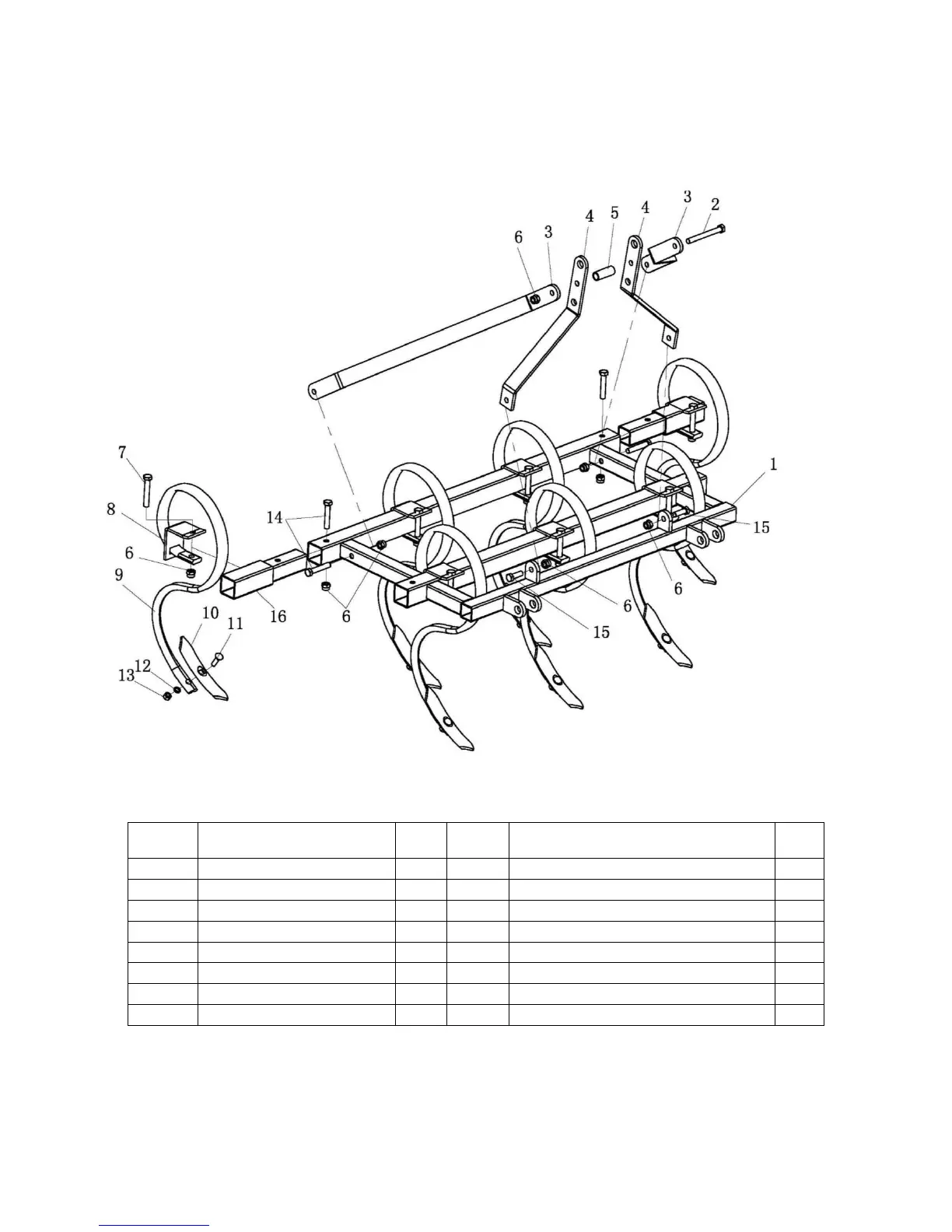

DIAGRAM & PARTS LIST
Part #
Description
Qty.
Part #
Description
Qty.
1
Frame
1
9
S-tine
7
2
Hex Bolt M12*110
1
10
Shovel
7
3
Long Support Bracket
2
11
Bolt M10*35
7
4
Short Support Bracket
2
12
Spring Washer
7
5
Spacer
1
13
Hex Nut M10
7
6
Hex Lock Nut M12
14
14
Hex Bolt M12*65
4
7
Hex Bolt M12*90
7
15
Hex Bolt M12*35
2
8
S-tine Bracket
7
16
Extension Tube
2
