Field Tuff FTF-CBP3PT - Adjusting Row Width

Ad
j
ustin
g
Row Width
1.To adjust the row width loosen the 4 hex bolts item 15, that fasten the planter
assembly to the rear frame assembly. Measuring from the middle of frame, move the
planter in or out to half the row width. I.e.24” row width measures 12” from middle
frame to the planter assembly. Repeat for opposite planter assembly. See figure 11.
j g
11

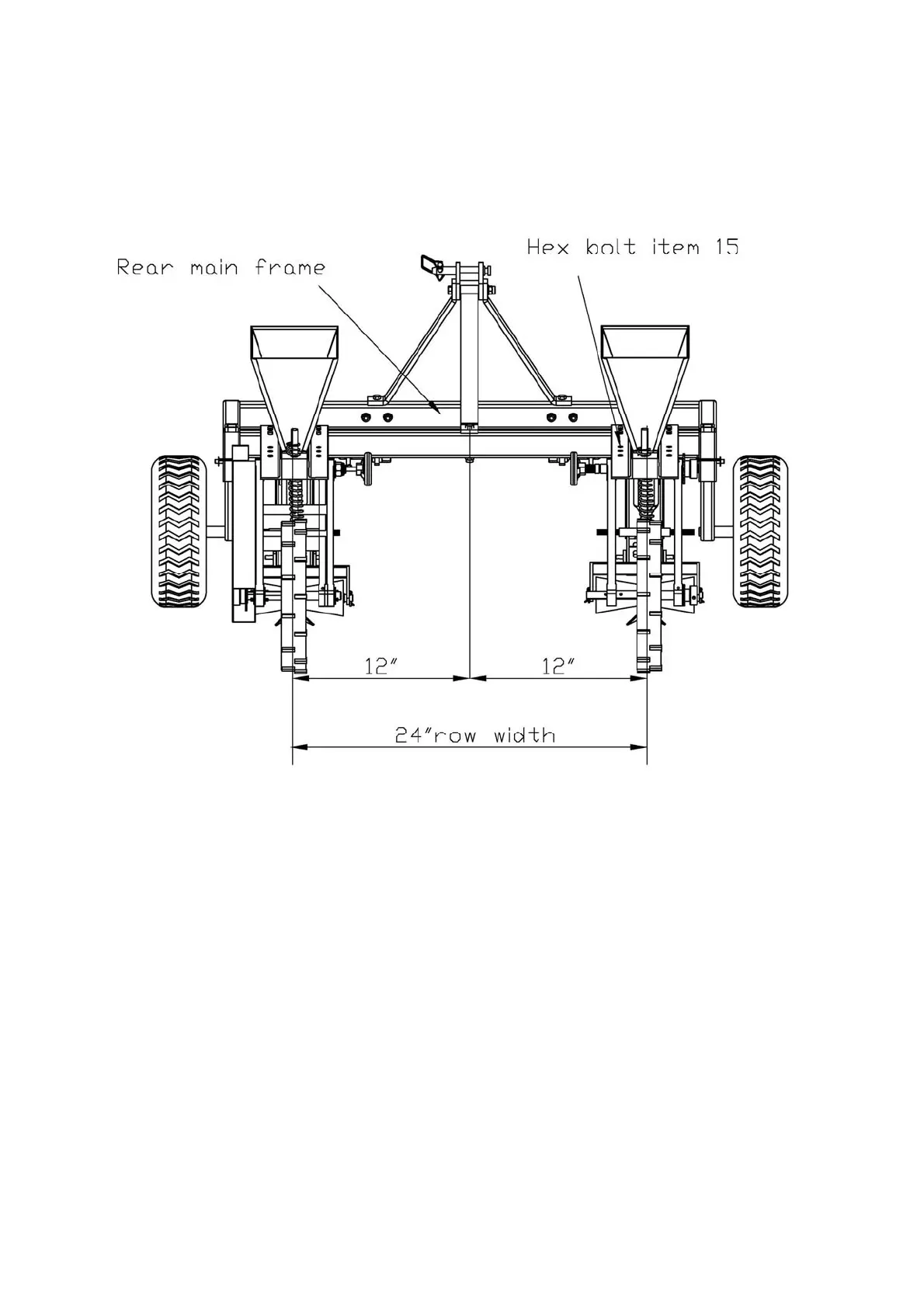

Figure 11
