Field Tuff FTF-CBP3PT - Setting Planter Seed Depth

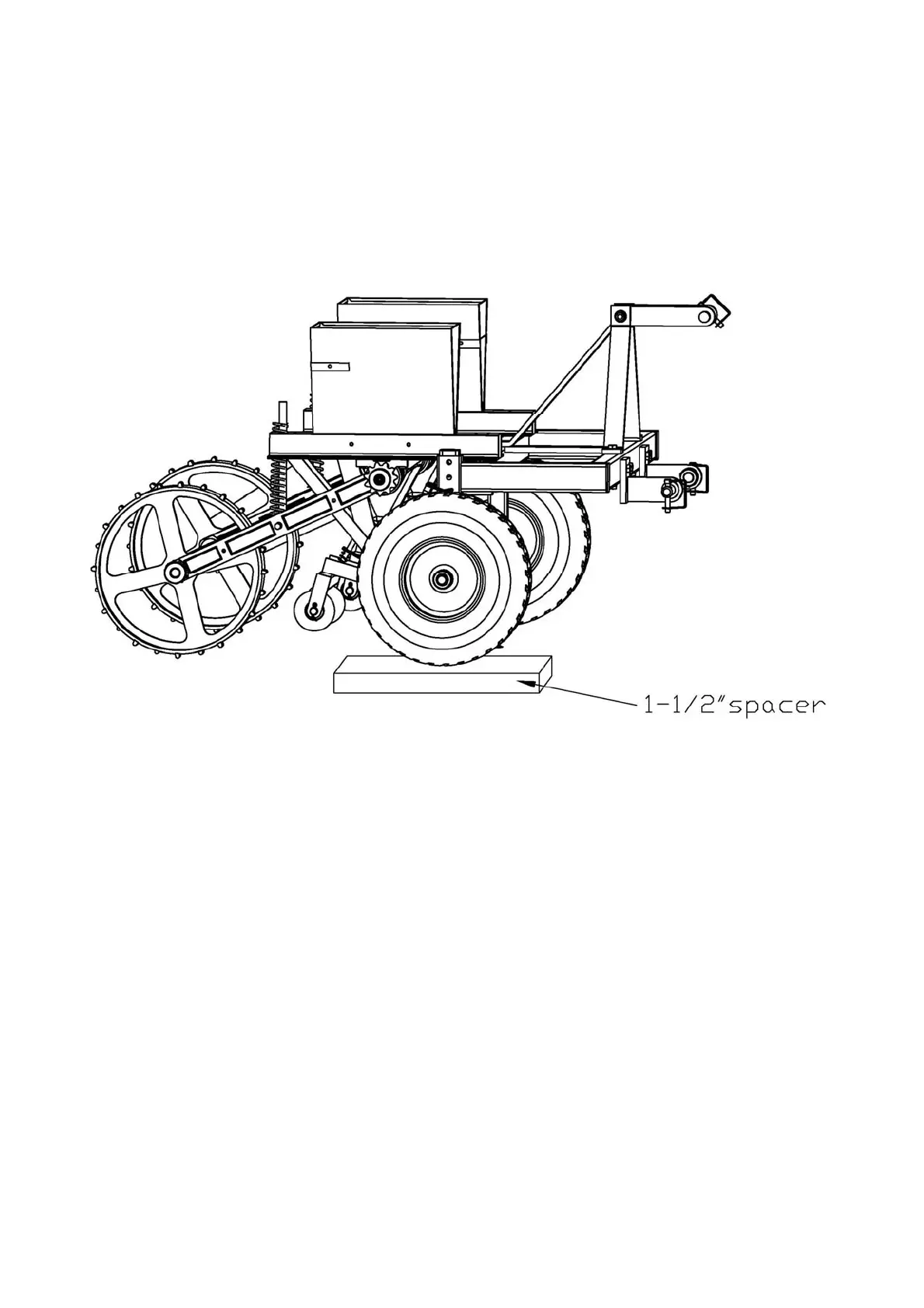

Figure 12
Setting Planter Seed Depth
1. Attach planter to the tractor with 3pt. Lower Planter to ground and adjust top link so that
planter is level.
2. Lower planter to ground so that coulters sit on flat level surface. See figure 13 of next
page.
3. Raise wheel assembly and place 1-1/2’’spacer under wheel. Install lock pin into the
closest holes in square tube.
Repeat for opposite side The planter is now set to plant at the 1
-
1/2
’’
depth
12
Repeat
for
opposite
side
.
The
planter
is
now
set
to
plant
at
the
1
1/2
depth
.
