STEP 1: Planter Assembly
Attach the right planter assembly and hopper bracket to
the ri
ht side of the frame assembl
usin
M10 x 85 Hex

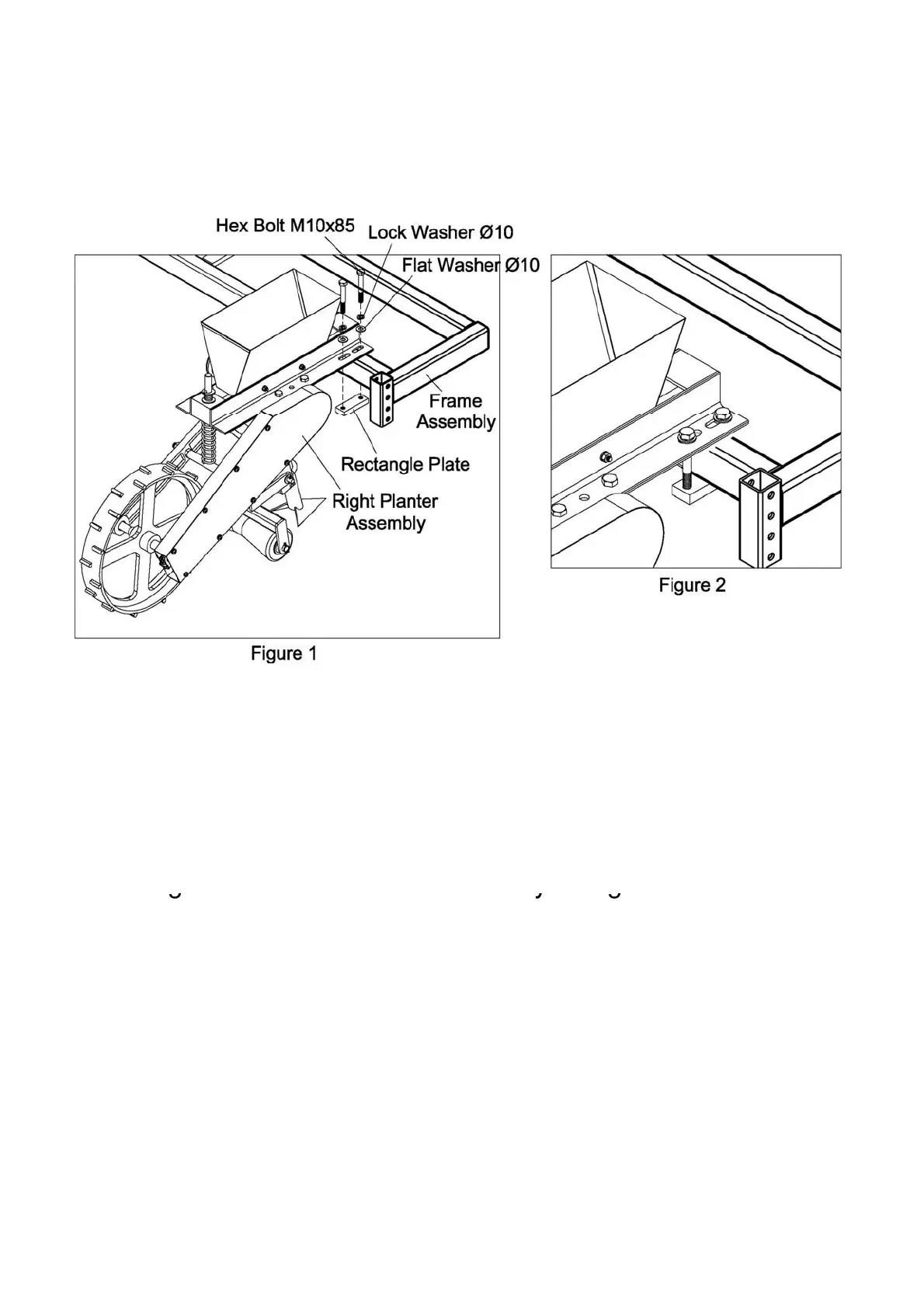

Bolt, lock washer Ø10, flat washer as shown in Figure 1.
Repeat above procedure for the left planter assembly.
Figure 2. shows the final assembly for this step.
