Field Tuff FTF-CBP3PT - Step 2: Tire;Wheel Assembly

STEP 2: Tire/Wheel Assembly

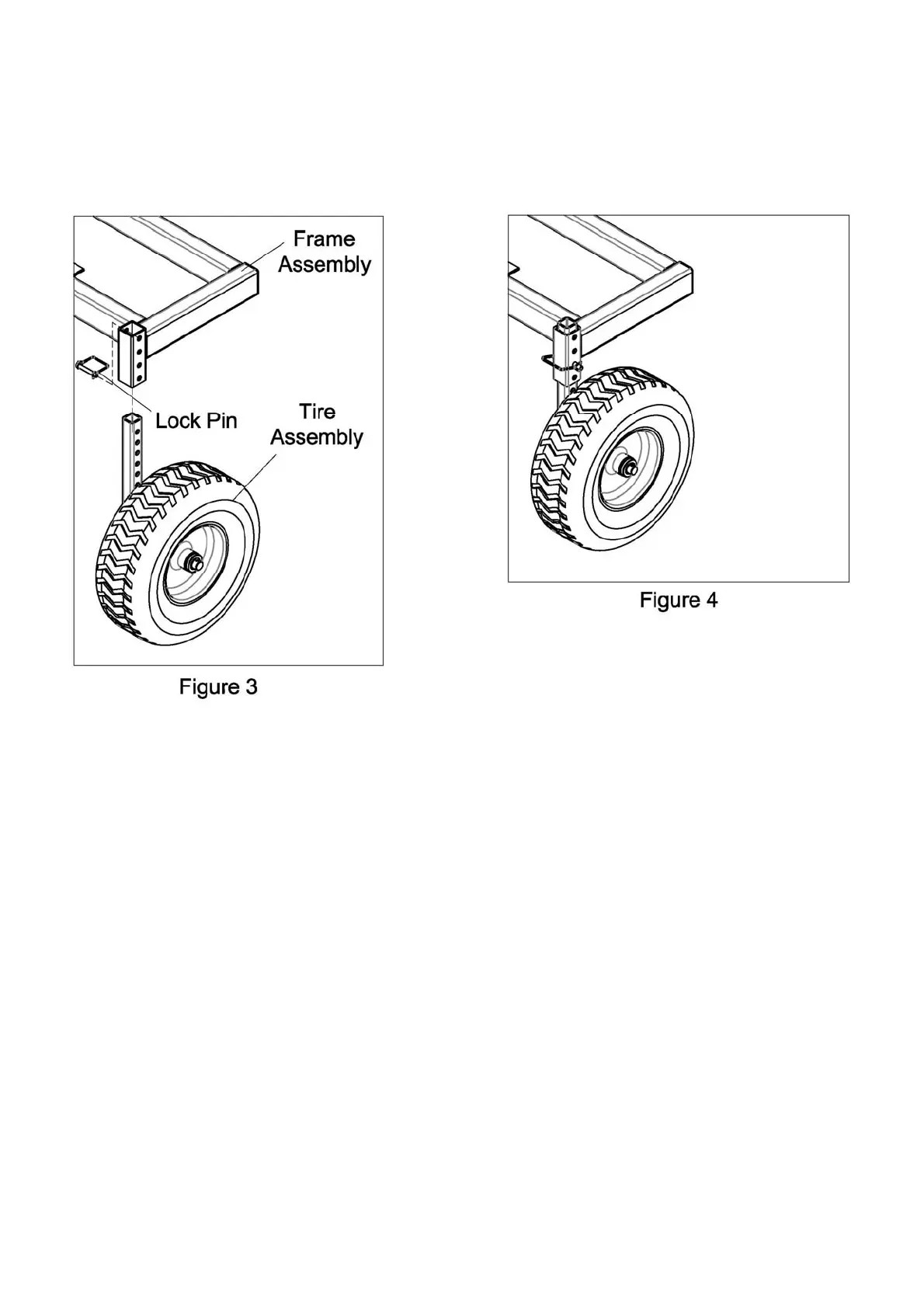

Insert the tire assembly into the right adjustable axle
receiver tube of the frame Assembly and install Lock pin.
(Shown in Figure 3)
(Shown
in
Figure
3)
Repeat above procedure for the left side.
Figure 4 shows completed step.
7
