STEP 3: Top Link Bracket and Middle Top Brace Assembly.

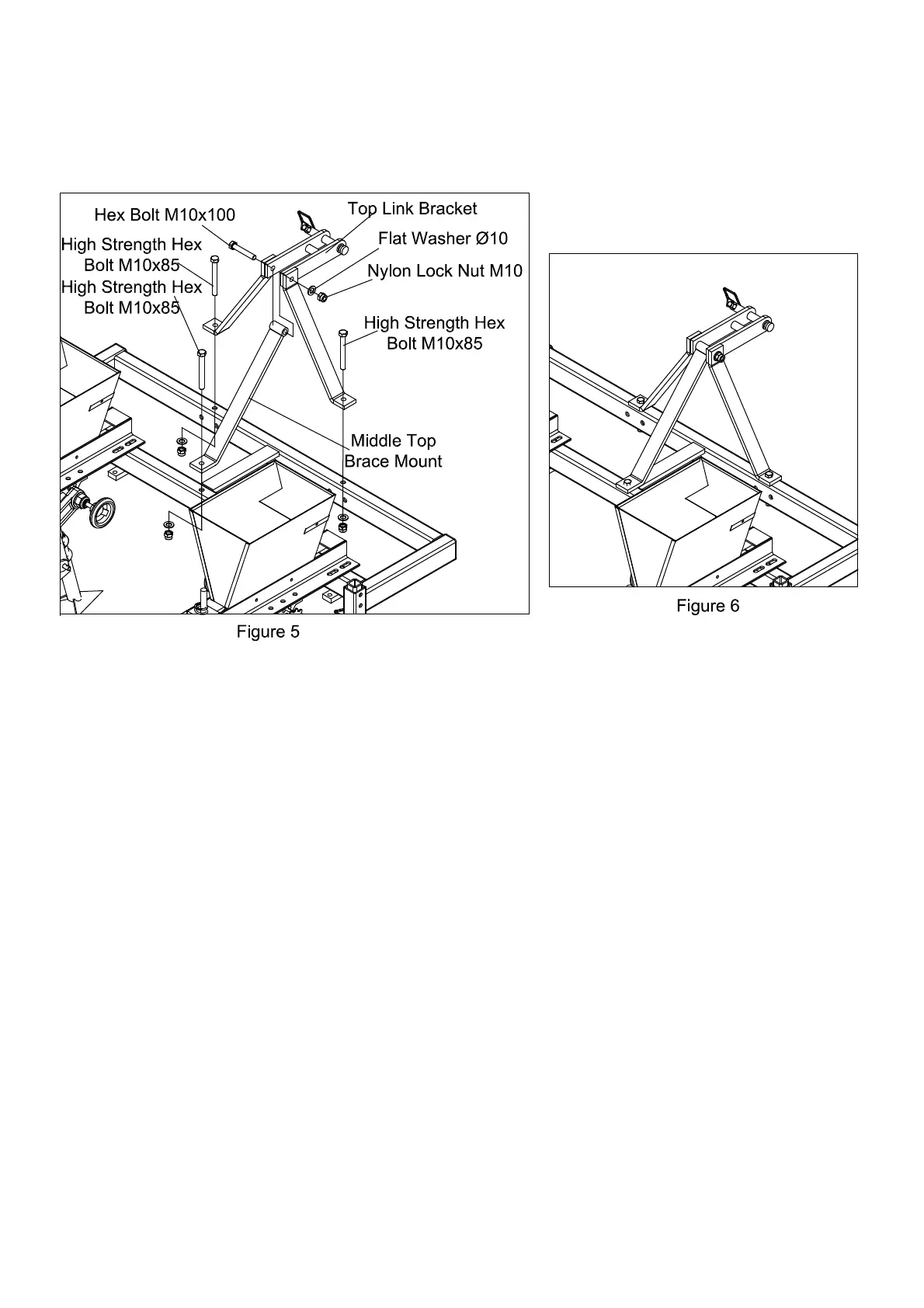

Connect top link bracket to the frame assembly using
M10x85 high strenght hex bolt, M10 lock nut, Ø10 flat washer
and tighten, then connect middle top brace to the t op link
strength hex bolt, M10 lock nut, Ø10 flat washer and tighten.
(Shown in figure 5)
Figure 6 shows the assembled step.
8
bracket and frame using M10x100 hex bolt, M10x85 high
