STEP 4: Lower Link Brackets Assembly

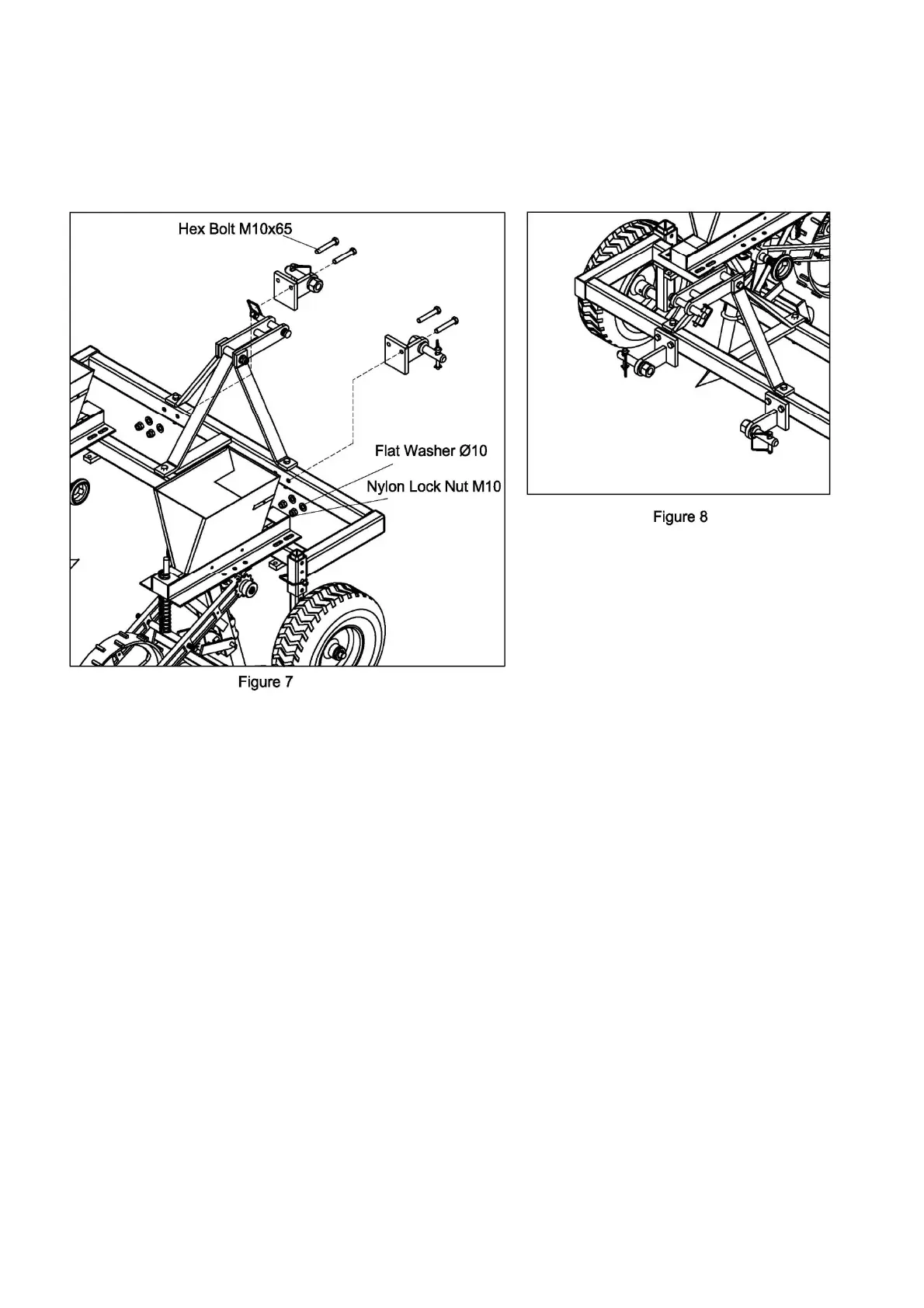

Install the Lower Link Bracket onto the frame assembly
using M10x65 hex bolt, M10 nylon lock nut,Ø10 flat
washer and tighten. (As shown in figure 7)
Figure 8 shows the assembled step
Figure
8
shows
the
assembled
step
.
9
