Assembling the lawnmower
5. ASSEMBLING THE LAWNMOWER
IMPORTANT INFORMATION: Carefully unfold the lawnmower handle, being careful not to pinch or
damage the lawnmower's control cables.
1. ASSEMBLING THE HANDLE
1. Insert the bottom part of the handle (Fig. 2 – point 1) into the respective hole on the lawnmower (see arrow)
and secure in place with 4 screws – two screws on each side of the handle.
2. Attach the top part of the handle (Fig. 2 – point 2) to the bottom part of the handle using the included screws
with the quick coupler and wing nuts (Fig.2 – point 3).
IMPORTANT NOTICE: After loosening the quick coupler, it is possible to comfortably adjust the height
of the handle and to select the most comfortable work position.

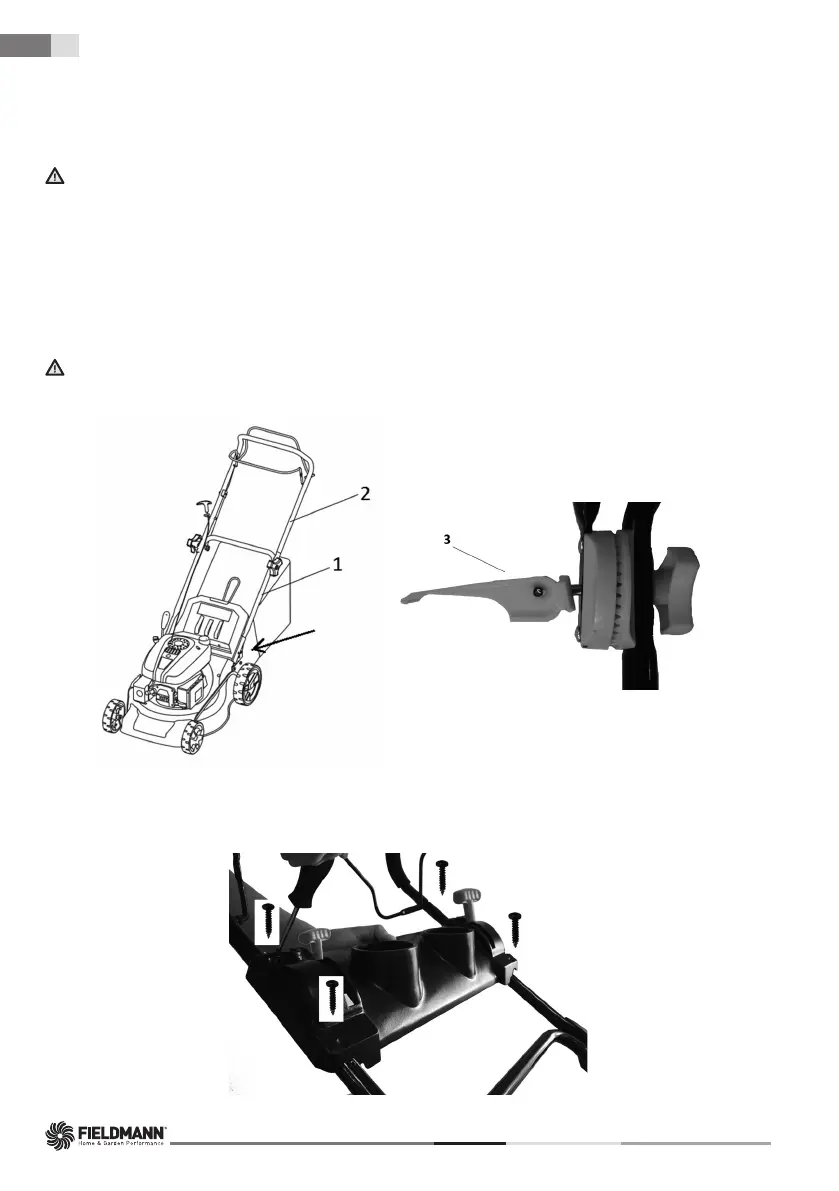

Fig. 2
2. INSTALLING THE HANDLE PANEL
Attach the plastic handle panel using the included screws (fi g. 3).
Fig. 3
