PETROL LAWNMOWER USER’S MANUAL
7
Description of the lawnmower | Assembly/Preparation

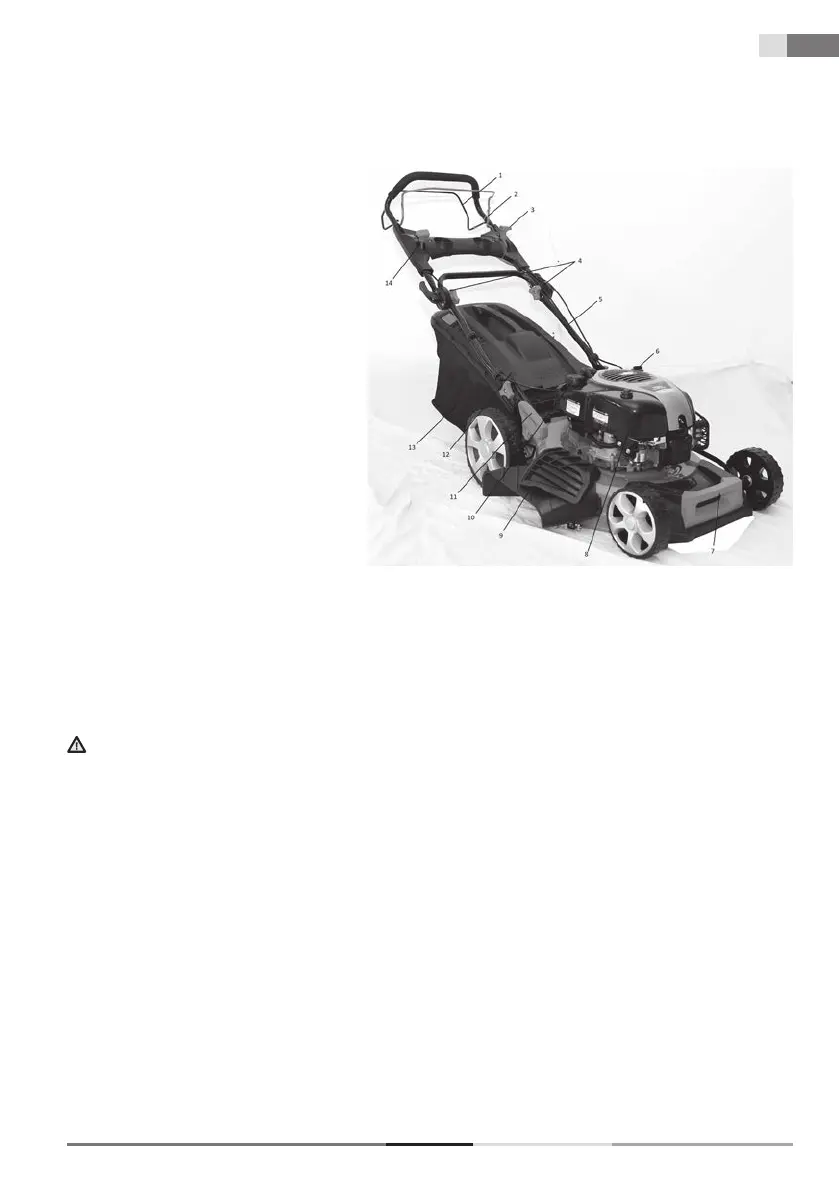

3. DESCRIPTION OF THE LAWNMOWER (Fig. 1)
1. Travel lever
2. Start / brake lever
3. Motor speed setting lever
4. Screws with quick couplers
5. Bottom part of the handle
6. Cap with oil dipstick
7. Front handle
8. Air filter cover
9. Side discharge deflector
10. Fuel tank cap
11. Mowing height adjustment lever
12. Grass catcher cover - rear deflector
13. Grass catcher
14. Travel speed control lever
Fig. 1
4. ASSEMBLY/PREPARATION
Before assembling and starting the petrol lawnmower, first carefully read the entire user's manual and the
instructions contained in it.
IMPORTANT INFORMATION: The lawnmower is supplied WITHOUT FUEL AND OIL in the engine.
Your new lawnmower was tested at the production plant meaning that a small amount of residual oil may
be in the engine.
TAKING THE LAWNMOWER OUT OF THE CARDBOARD PACKAGING
Take the lawnmower out of the cardboard packaging and check that no loose parts are left in the packaging.
