EN 8
FZR 5124 BV
Assembling the lawnmower
5. ASSEMBLING THE LAWNMOWER
IMPORTANT INFORMATION: Carefully unfold the lawnmower handle, being careful not to pinch or
damage the lawnmower's control cables.

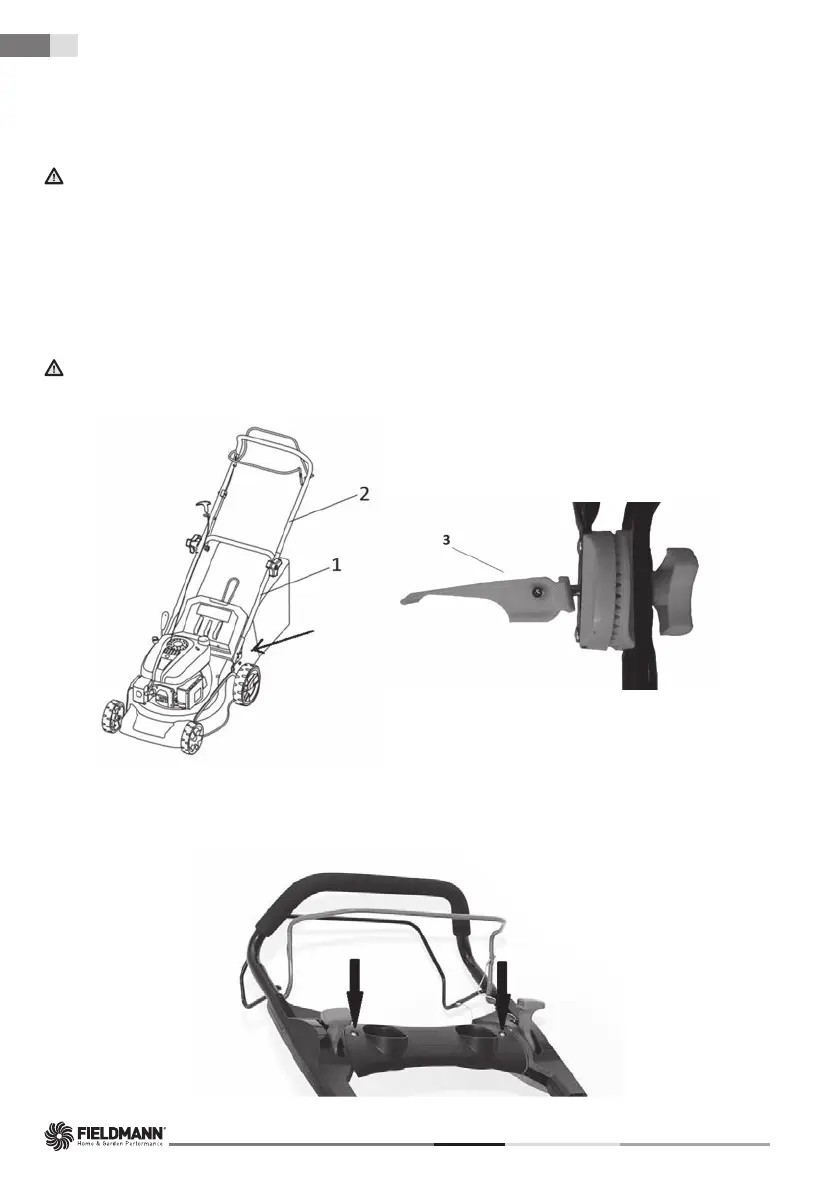

1. ASSEMBLING THE HANDLE
1. Insert the handle’s bottom part (Fig. 2 - point 1) in the relevant holes on the mower (see the arrow) and
secure with screw and nut.
2. Attach the top part of the handle (Fig. 2 – point 2) to the bottom part of the handle using the included screws
with quick coupler and wing nuts (Fig. 2 – point 3).
IMPORTANT: After loosening the quick coupler, it is possible to comfortably adjust the height of the
handle and to select the most comfortable work position.
Fig. 2
2. INSTALLING THE HANDLE PANEL
Attach the plastic handle panel using the included screws (Fig. 3).
Fig. 3
