Assembly of the cultivator
TAKING THE LAWNMOWER OUT OF THE CARDBOARD PACKAGING
Take the cultivator out of the cardboard packaging and check that no loose parts are left in the packaging.
6. ASSEMBLY OF THE CULTIVATOR
IMPORTANT INFORMATION: Carefully unfold the cultivator handle, being careful not to pinch or
damage the cultivator's control cables.

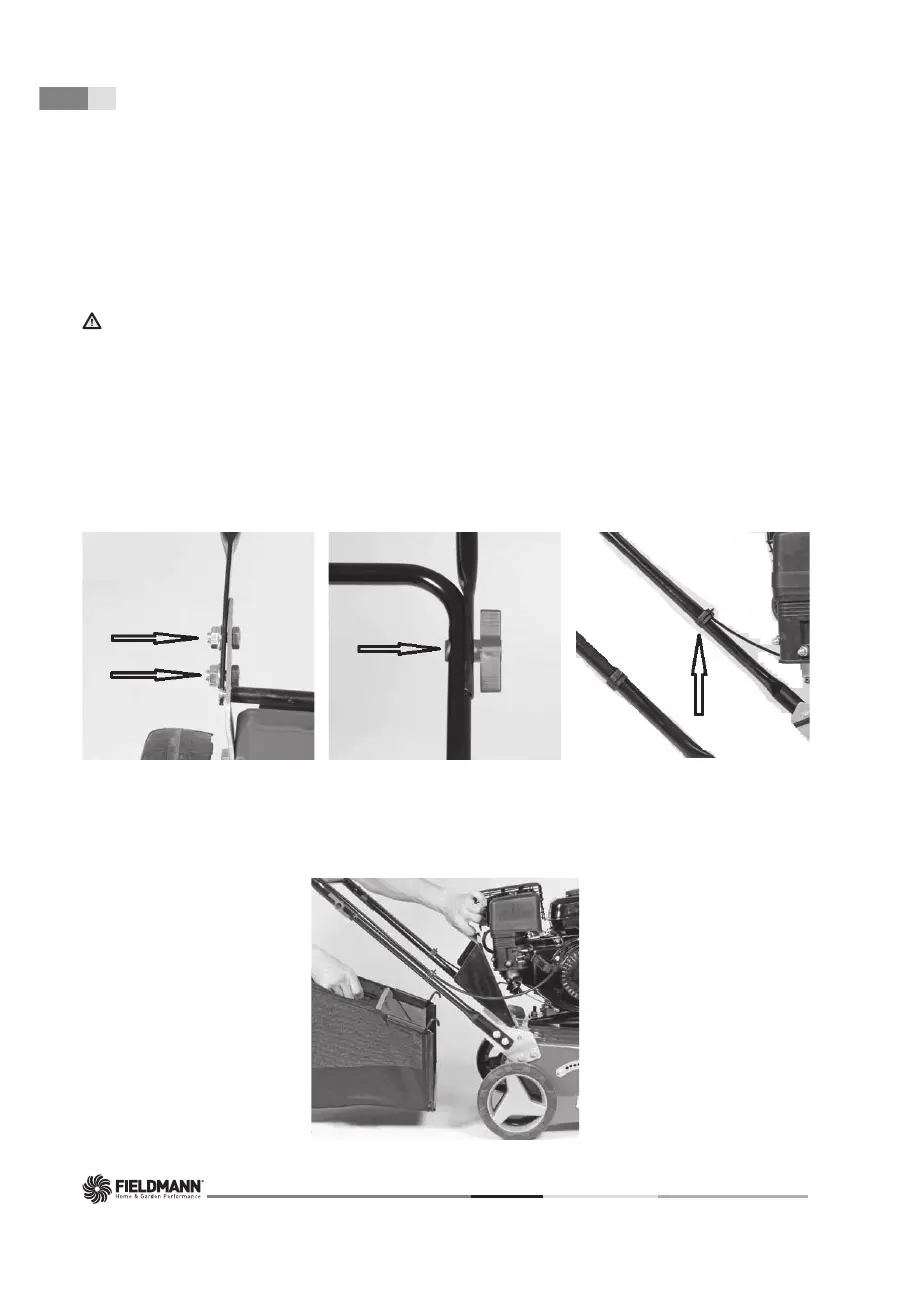

1. ASSEMBLY OF THE HANDLE
1. Attach the lower handrail to the cultivator with 2 nuts bolts on each side (Fig. 2a)
2. Attach the top part of the handle to the bottom part of the handle using the included screws with quick coupler
and wing nuts (Fig. 2b)
3. Attach the switch lever cable to the handle using the enclosed plastic clip
Fig. 2a Fig. 2b Fig. 2c
2. FITTING THE CATCHER
Lift the basket rear cover and attach the basket to the cover axis using the hooks.
Fig. 3
