Operator's Manual
String Mower M200
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
KEY PART # DESCRIPTION QT Y.
1 16903 NUTM10X1.5X14NYLOCHEXFLANGE 1
2 16595 PULLEYASSEMBLYSTRINGMOWER 1
3 19925 SPACER M17.5 X 23.5 X 6 1
4 19966 BEARING 17 X 40 X 12 MM 1
5 16317 HOUSINGJACKSHAFTSTRINGMOWER 1
6 16598 GREASE FITTING M6 X 1.0 1
7 19960 SPACERJACKSHAFTSTRINGMOWER 1
8 19959 BEARING 17 X 35 X 10 MM 1
9 16337 WEED WRAP STRING MOWER 1
10 16799 BOLT M5 X 0.08 X 20 HEX 3
11 19928 JACKSHAFTM10X1.5STRINGMOWER 1
12 19924 CUTTERHEADANDWRAPASSEMBLY 1
13 19923 HEIGHTGUIDEASSEMBLY 1
14 19919 BOLTM6X1.0X10SOCKETHEAD 2
15 21884 KITLINE0.155INCHSTRINGMOWER 1
KEY PART # DESCRIPTION QT Y.
1 16903 NUTM10X1.5X14NYLOCHEXFLANGE 1
2 16595 PULLEYASSEMBLYSTRINGMOWER 1
3 19925 SPACER M17.5 X 25.5 X 6 1
4 19966 BEARING 17 X 40 X 12 MM 1
5 16317 HOUSINGJACKSHAFTSTRINGMOWER 1
6 16598 GREASE FITTING M6 X 1.0 1
7 19960 SPACERJACKSHAFTSTRINGMOWER 1
8 19959 BEARING 17 X 35 X 10 MM 1
9 16337 WEED WRAP STRING MOWER 1
10 16799 BOLT M5 X 0.08 X 20 HEX 3
11 16321 JACKSHAFTSTRINGMOWER 1
12 16662 WEED HEAD TOP STRING MOWER 1
13 16849 KITLINE4MMSTRINGMOWER 1
14 16670 SPRING WEED HEAD STRING MOWER 4
15 16669 CAM WEED HEAD STRING MOWER 4
16 16663 WEED HEAD MID-LEVEL STRING MOWER 1
17 19945 BOLT M8 X 1.25 X 20 HEX 1
18 16664 WEED HEAD BOTTOM STRING MOWER 1
19 16817 BOLT M5 X 0.08 X 30 PHILIPS 4
20 16665 BUMPHEAD1STRINGMOWER 1
21 16666 BUMPHEAD2STRINGMOWER 1
22 16668 BUMPHEAD3STRINGMOWER 1

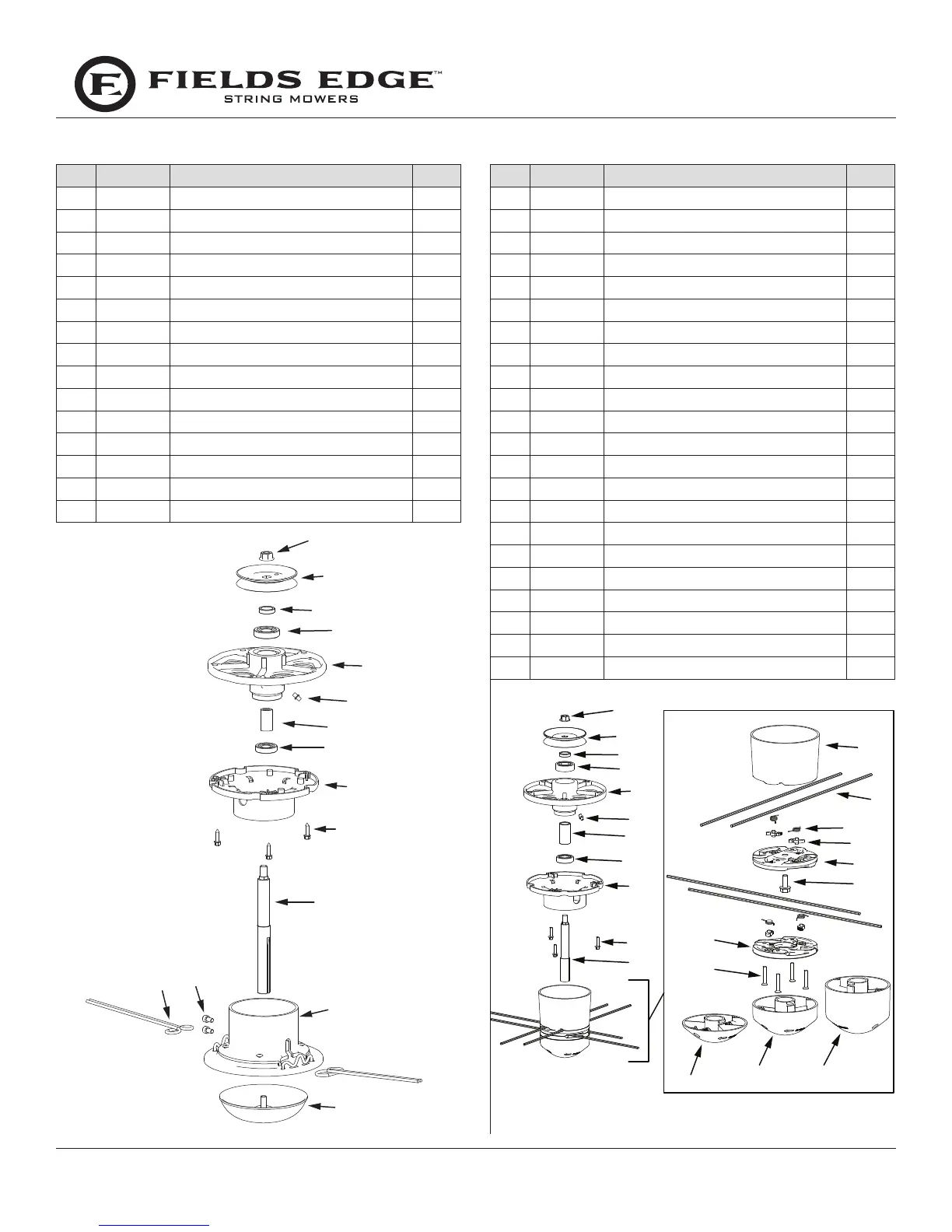

Mower Head - Standard Version Mower Head - Slide-Through Version
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
