19
Check for parts online at www.geteldsedge.com or call 800-345-6007 M-F 8-5
Operator's Manual
String Mower M220
KEY PART # DESCRIPTION QT Y.
1 19927 BOLT M10 X 1.5 X 60 HEX 4
2 16318 SPACER JACKSHAFT MOWER 1
3 19931 SCREW M5 X 3 X 15 PHILIPS 4
4 16903 NUT M10 X 1.5 X 13 NYLOC 1
5 16595 PULLEY ASSEMBLY STRING MOWER 1
6 19925 SPACER M17.5 X 23.5 X 6 1
7 19966 BEARING 17 X 40 X 12 MM 1
8 16317 HOUSING JACKSHAFT MOWER 1
9 16598 GREASE FITTING M6 X 1.0 1
10 19960 SPACER JACKSHAFT 1
11 19959 BEARING 17 X 35 X 10 MM 1
12 16337 WEED WRAP STRING MOWER 1
13 16779 BOLT M5 X 0.8 X 20 HEX 3
14 16321 JACKSHAFT STRING MOWER 1
15 16662 WEED HEAD TOP STRING MOWER 1
16 17897 KIT LINE 15 IN STRING MOWER 1
17 16670 SPRING WEED HEAD MOWER 4
18 16669 CAM WEED HEAD STRING MOWER 4
19 16663 WEED HEAD MID-LEVEL MOWER 1
20 19945 BOLT M8 X 1.25 X 20 HEX 1
21 16664 WEED HEAD BOTTOM MOWER 1
22 16817 BOLT M5 X 0.08 X 30 PHILIPS 4
23 16665 BUMP HEAD 1 STRING MOWER 1
24 16666 BUMP HEAD 2 STRING MOWER 1
25 16668 BUMP HEAD 3 STRING MOWER 1

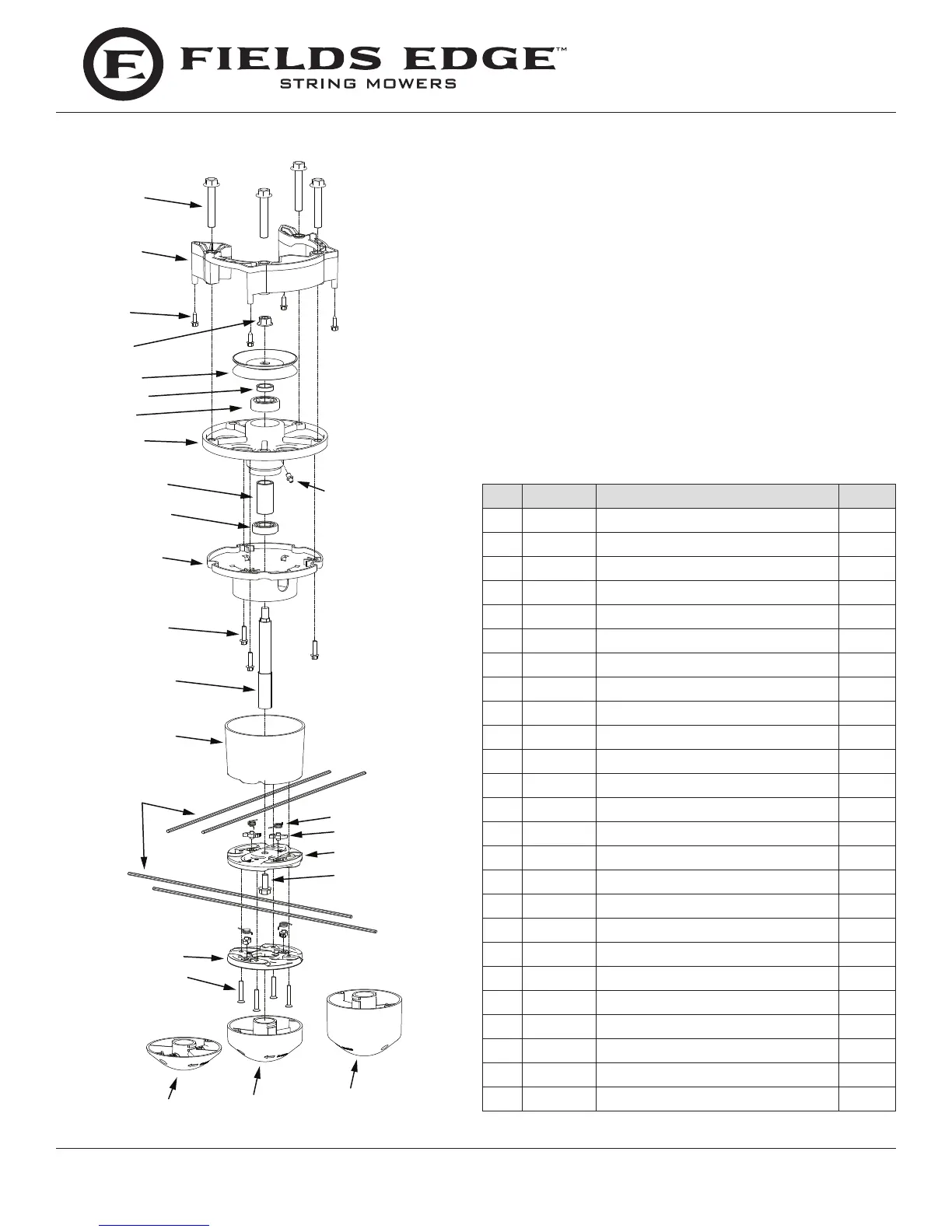

ILLUSTRATED PARTS BREAKDOWN  Mower Head
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
