String Mower M220
ILLUSTRATED PARTS BREAKDOWN

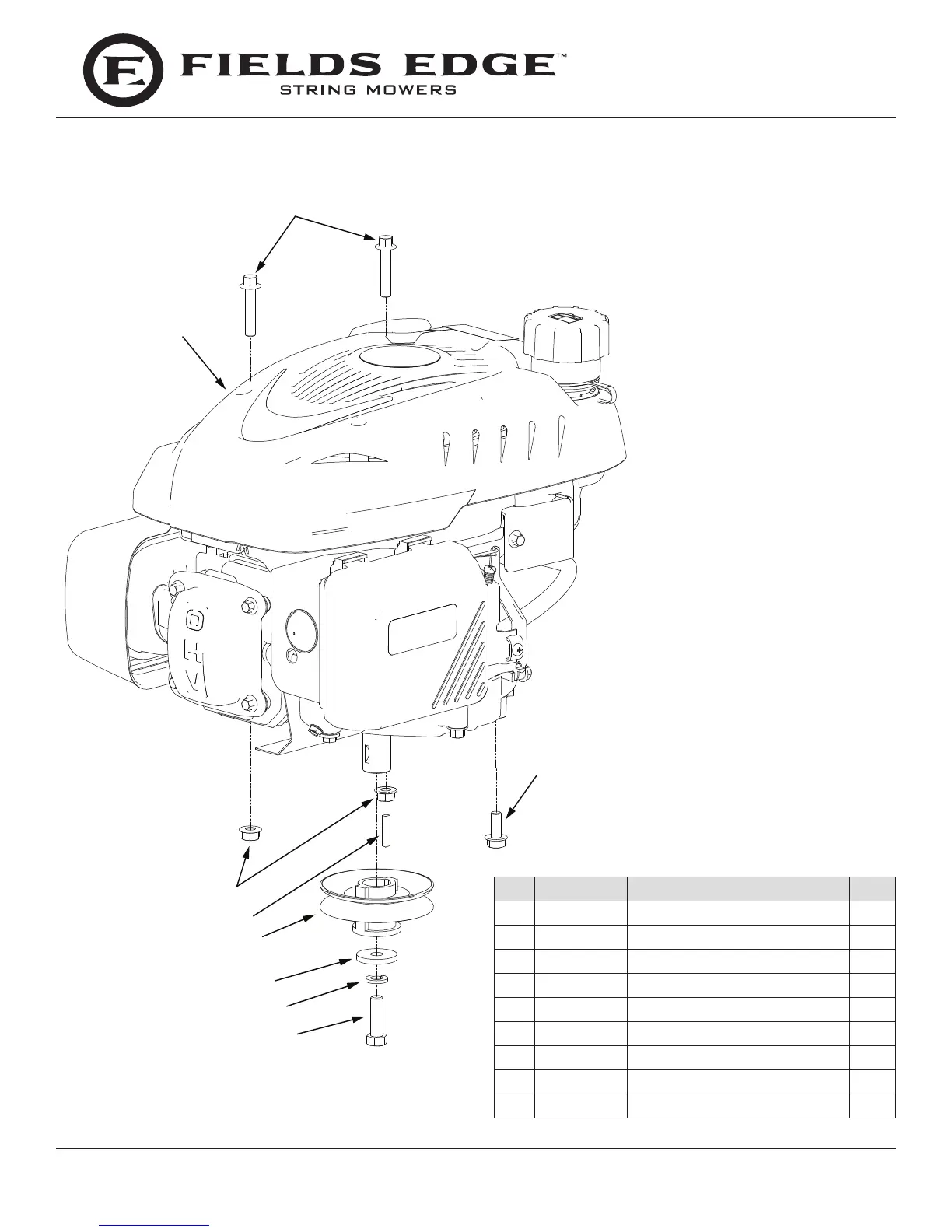

Engine and Pulley Attachment
KEY PART # DESCRIPTION QT Y.
1 19922 BOLT M8 X 1.25 X 40 HEX 2
2 186000 ENGINE 173CC VIPER VERTICAL 1
3
W1265V0900
NUT M8 X 1.25 NYLOC 2
4 16602 KEY 4 X 5 X 25 MM 1
5 60005013 ENGINE PULLEY 1
6 331040 FLAT WASHER 10 X 32 X 4 MM 1
7 1916965 WASHER 3/8 INCH SPRING LOCK 1
8 1426 BOLT 3/8-16 X 1-1/4 HEX 1
9 19945 BOLT M8 X 1.25 X 20 HEX 1
1
2
3
4
5
6
7
8
9
