Fields Edge M220 - Illustrated Parts Breakdown

18
Check for parts online at www.geteldsedge.com or call 800-345-6007 M-F 8-5
Operator's Manual
String Mower M220

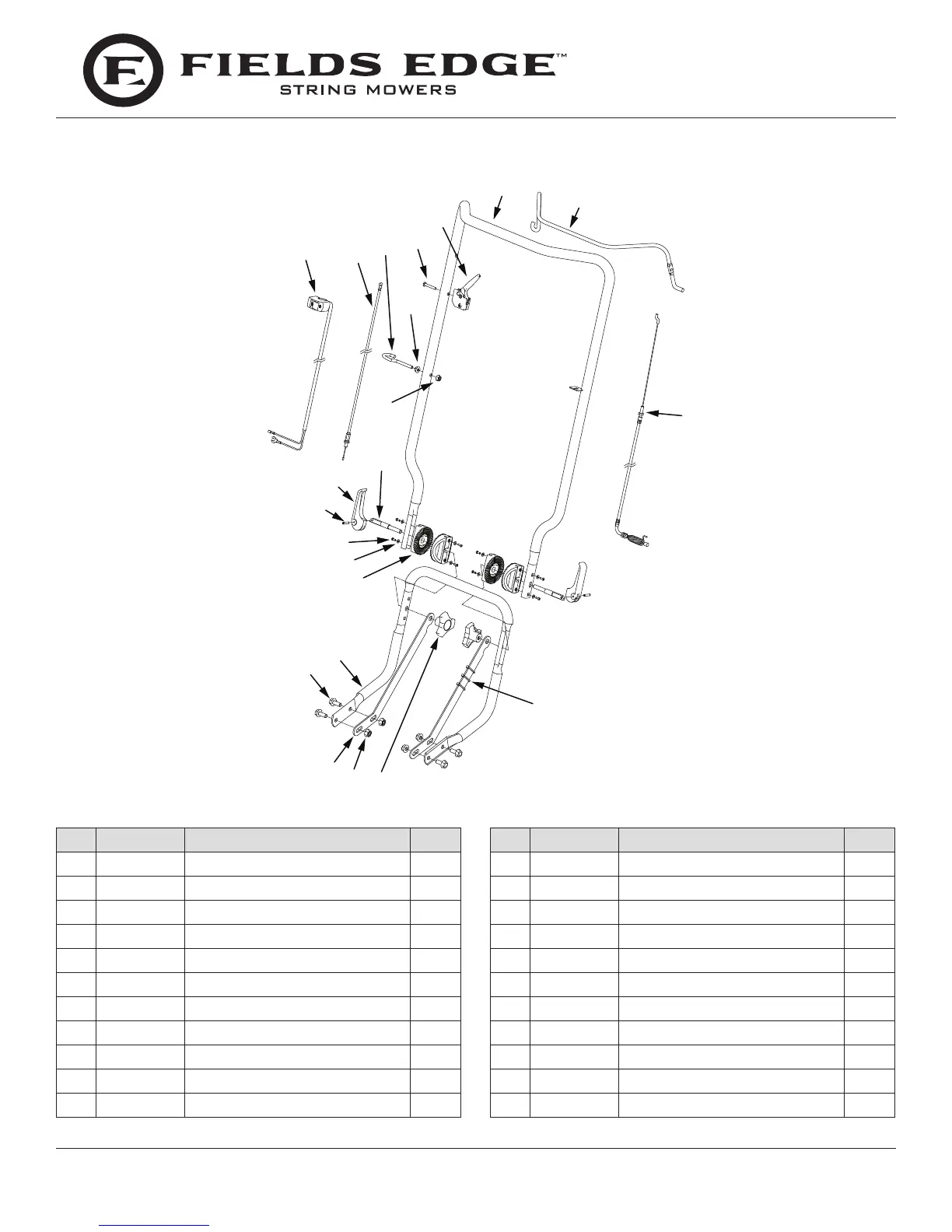

ILLUSTRATED PARTS BREAKDOWN  Handlebars
KEY PART # DESCRIPTION QT Y.
1 17471 ON/OFF SWITCH STRING MOWER 1
2 14178 THROTTLE CABLE 1
3 19902 ROPE GUIDE M6 X 1.0 OPEN EYE 1
4 19939 NUT M6 X 1.0 HEX 1
5 4814 BOLT 10-24 X 1-1/4 PHILIPS 1
6 4819 TRIGGER ASSEMBLY 1
7 17043 HANDLEBAR WITH VINYL 1
8 19160 CONTROL BAIL STRING MOWER 1
9 17527 CLUTCH CABLE STRING MOWER 1
10
W1265V0913
NUT M6 X 1.0 NYLOC 1
11 16311 HANDLE ADJUST BOLT M8 2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
KEY PART # DESCRIPTION QT Y.
12 19972 CAM LEVER BLACK 2
13 19973 RIVET M4 X 20 2
14 16397 SCREW M3 X 10 PHILIPS 8
15 16360 WASHER M3 X 0.8 THICK 8
16 19912 HANDLE PIVOT BLACK 4
17 19941 LOWER HANDLEBAR 1
18 19945 BOLT M8 X 1.25 X 20 HEX 4
19 18893 HANDLEBAR BRACE MOWER 2
20 64132 NUT M8 X 1.25 4
21 13601 KNOB M8 THREE STAR BLACK 2
22 106 ZIP TIE 5.75 INCH BLACK 3
