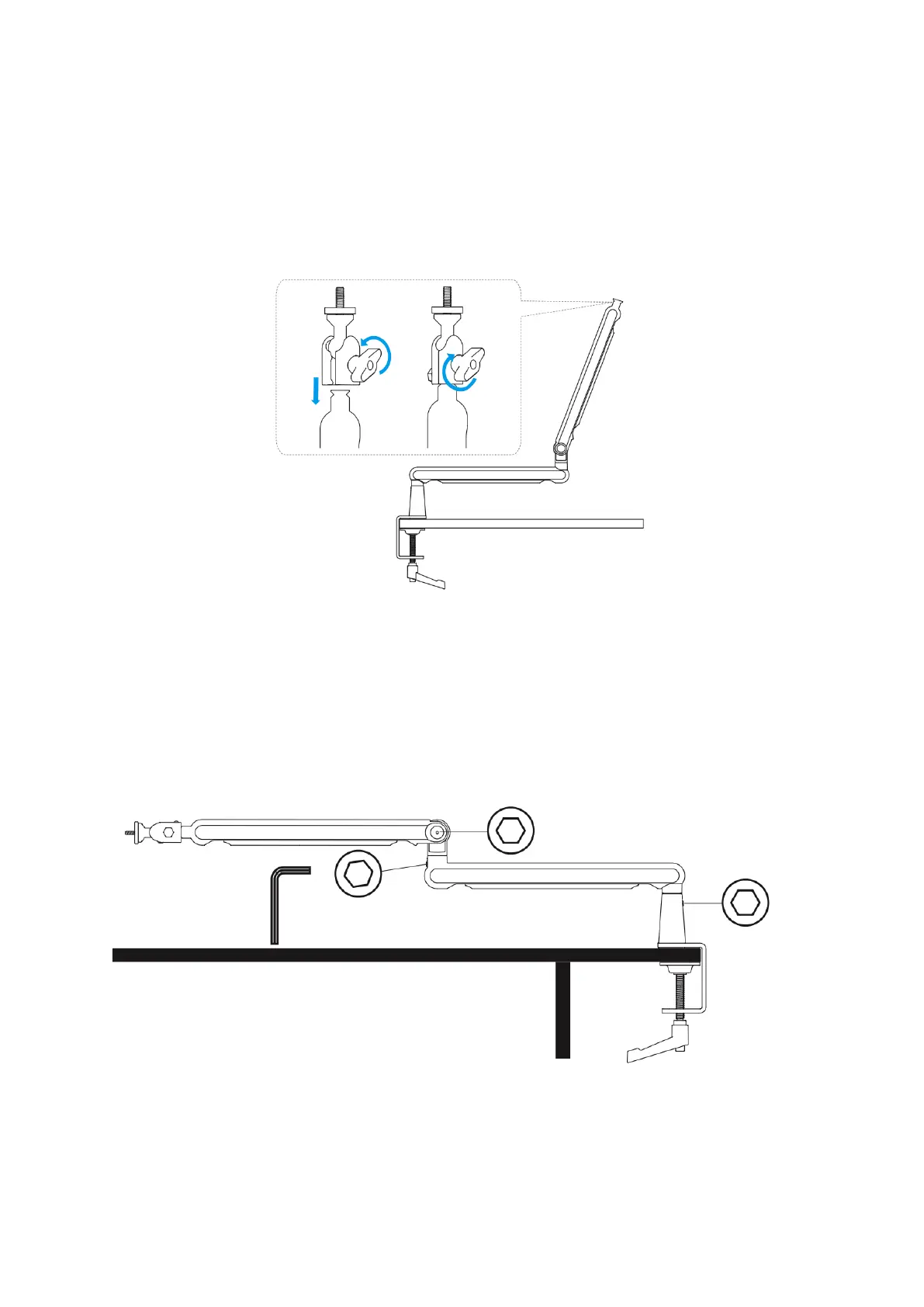

3. To install rotatable ball head begin by loosening the knob in a counterclockwise
direction. This will provide enough room to fit the rotatable ball-head onto the boom
arm. Carefully align the ball-head with the designated attachment point on the boom
arm. Once properly positioned, tighten the knob by turning it clockwise. This action
ensures a firm and secure connection between the ball-head and the boom arm.
Confirm that the knob is securely tightened to prevent any unwanted movement.
4. To adjust boom arm use an allen wrench, turn the screw counterclockwise to loosen
it. This will allow you to adjust the boom arm to the desired angle. Carefully position the
boom arm to a suitable angle that meets your needs. Once you have set the desired
angle, turn the screw clockwise using the allen wrench to tighten it. This will secure the
boom arm in place at the adjusted angle. Ensure that the screw is firmly tightened to
maintain stability and prevent any unintended movement.
