2.1 Installation guide

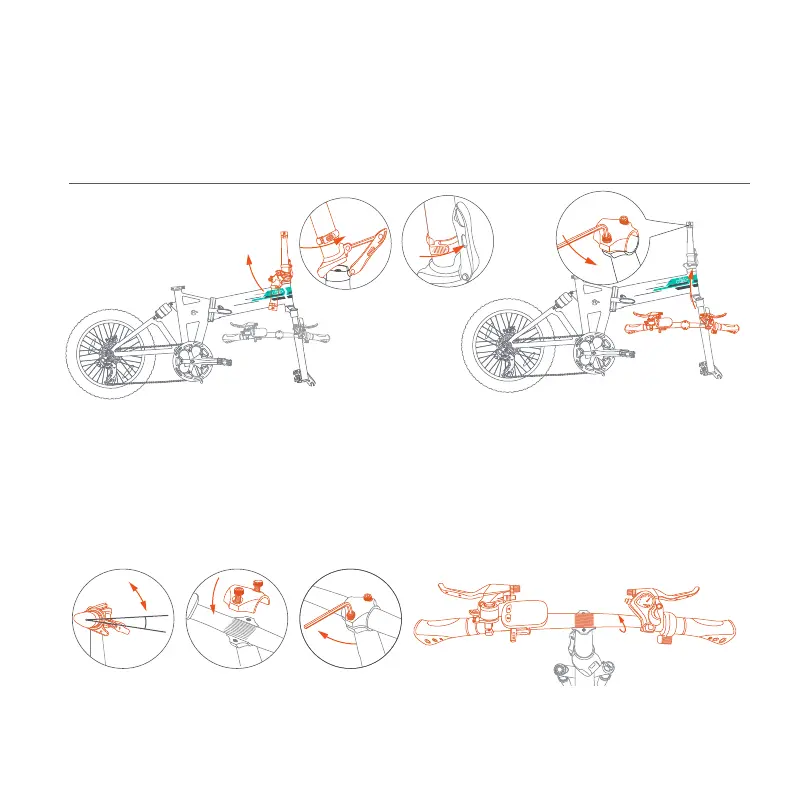

Install the handlebar
The basic installation of the bike has been completed before leaving the factory. After receiving the bike, you only need
to install the handlebar, front wheel and front light for complete installation.
① Lift the stem from bottom to top, open the stem
clamp, and close the safety hook.
③ Adjust the handlebar direction, to make it at an angle of 15°-20° with the horizontal line, then close the quick release
and fully lock the screws,to complete the installation of the handlebar.
② Unscrew the riser cover, hang the handlebar
and keep the center of the handlebar in the stem, and
fasten the riser cover and lock the screws evenly.
( Do not tighten the screw completely at this time)
15°-20°
7
