▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬ PACKAGING MACHINE WITH SEALING BAR MSD
TECHNICAL SPECIFICATIONS

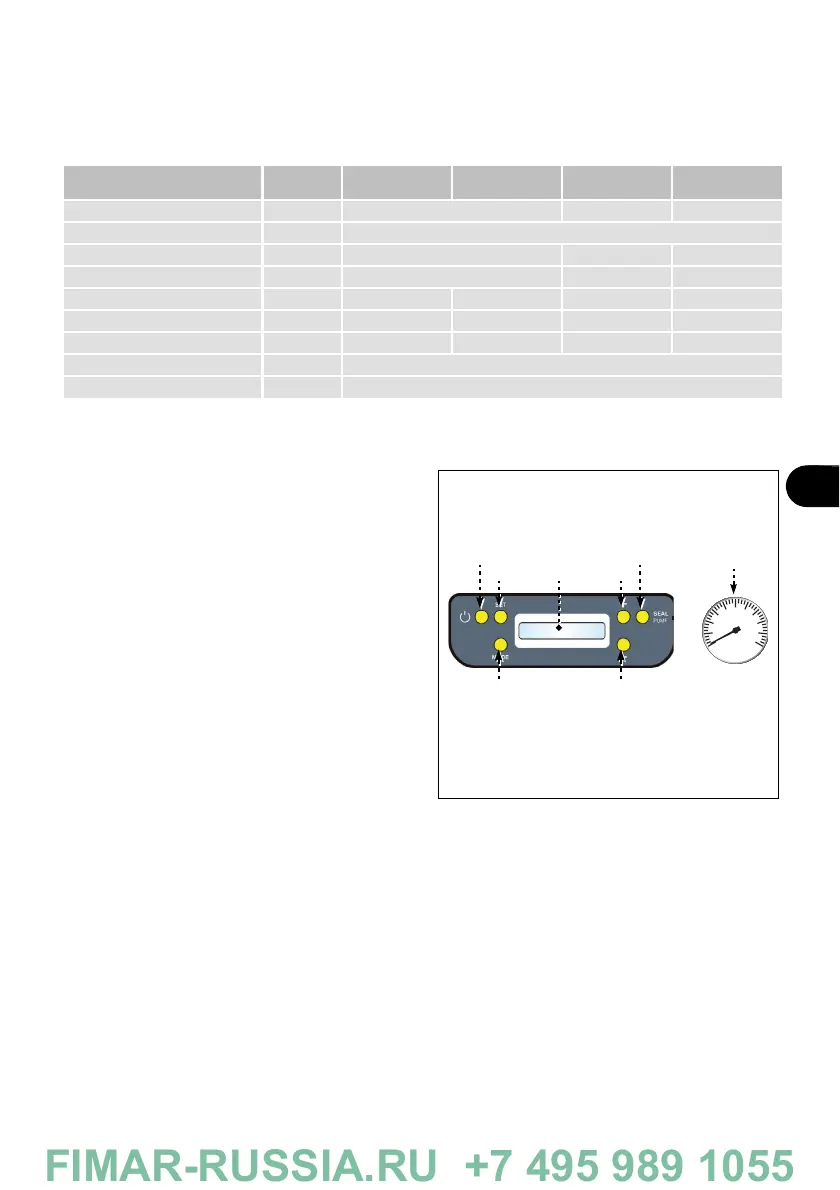

CONTROL DESCRIPTIONS
The appliance is equipped with the listed
control devices, required to run its main func-
tions.
A) Display: it displays warning messages
and working parameters.
B) Button: it activates and deactivates the
equipment operation.
C) Button (SET): it enables the setting up of
the temperature level (from 0 to 10) of
sealing bar.
By pressing button , while display (A)
keeps showing the welcome message,
the working language can be changed.
D) Button (+): used to increase the value of
the selected parameter.
E) Button (-): to decrease the value of the selected parameter.
F) Button (MODE): it selects the working mode of equipment.
Press button repeatedly until the desired mode is shown on display.
– Automatic
– Manual
– Vacuum only
Table 1: Technical appliance specifications
Description
Unit of
measure
MSD/300P MSD/300 MSD/400 MSD/500
Power kW 0,49 0,7 0,8
Power supply V/Ph/Hz 230V/1N/50-60Hz
Length of sealing bar mm 320 420 520
Flow rate of vacuum pump m³/h 0,9 1,8 3
Appliance dimensions mm 390x310x140 390x310x200 560x290x210 600x450x250
Packaging dimensions mm 420x350x190 420x360x260 610x340x270 700x640x490
Net weight kg 4,5 7 13 26
Installation type Counter installation
Noise level dB (A) < 70
