Page 4
DFT8 Reverse Osmosis Filter
Preparation and Installation

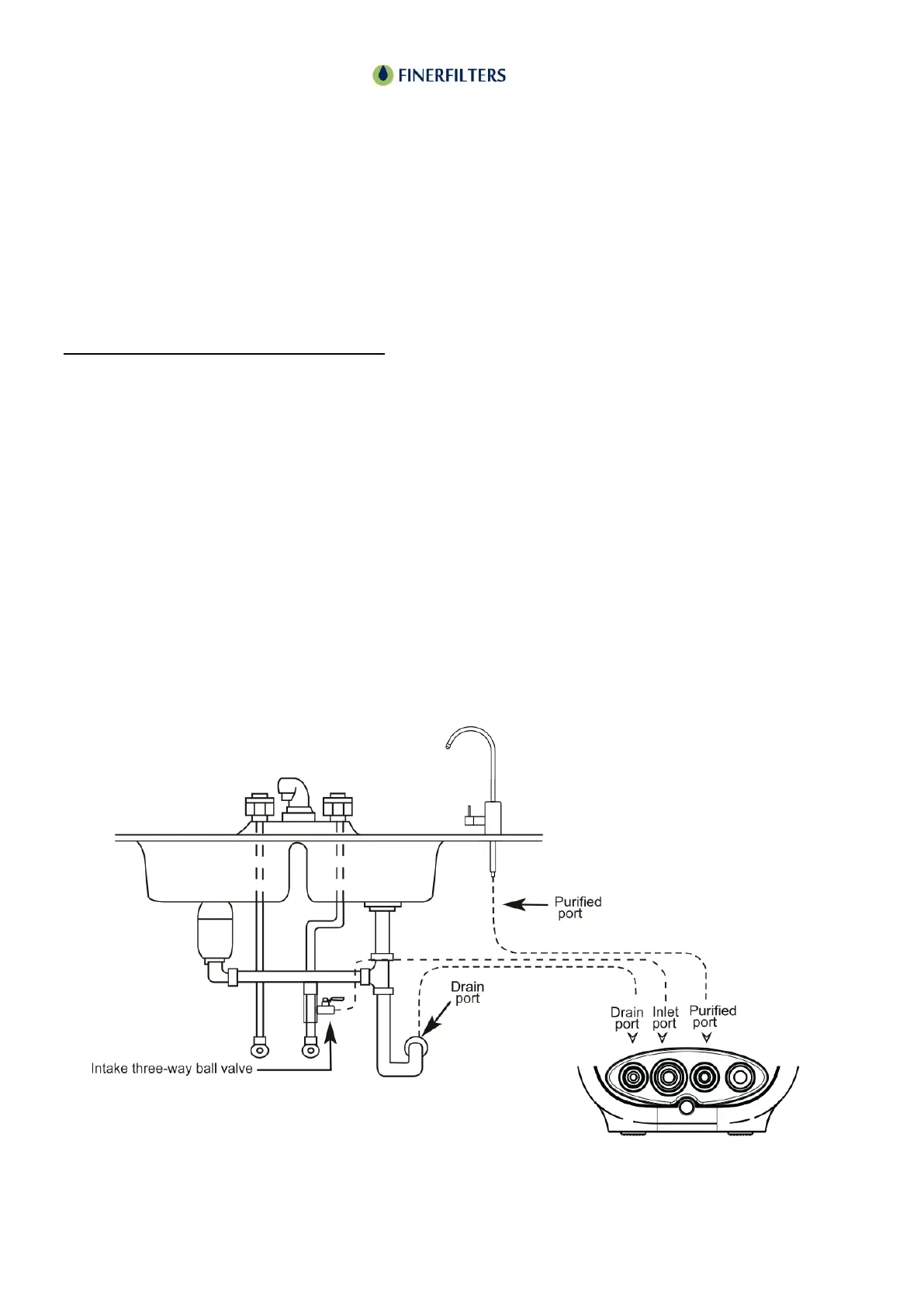

Position the RO unit where it is to be installed. The diagram below shows the various
connections that will need to be made on the back of the unit. To remove the protective plugs
push the collet ring back and at the same time pull out the plug. A video is available on our
“Finerfilters LTD” YouTube channel – “How to remove tubing from a Pushfit water filter –
Finerfilters” for a visual representation.
Recommended Tools for Installation
Variable Speed Drill: Utilized for drilling various-sized holes as needed.
3mm Drill Bit: For creating a pilot hole for the wastewater outlet.
6mm Drill Bit: For drilling the actual hole for the wastewater outlet.
25mm Hole Saw: For drilling the hole for the tap.
Pliers: For gripping and tightening components.
Phillips Screwdriver: For screwing and unscrewing components.
Utility Knife: For cutting tubing to the desired length.
