Finex FX200 - Parts

SHARPE: P.O. Box 1441 Minneapolis, MN 55440-1441
1-800-742-7731, www.sharpe1.com
310746 4/2004, Rev. F 5/2007
FINEX HVLP AND CONVENTIONAL SPRAY GUNS
Parts
FX200 and FX300
Model
No.
Part No. Description
Includes:
Repair KitAir Cap (1) Nozzle (2) Gun Body (5) Needle (18)
FX200 248753 Conventional Air Spray, 1.4 15E423 15E424 15E428 15E441 248762
FX200 248754 Conventional Air Spray, 1.8 15E423 15E425 15E428 15E442 248762
FX300 248755 HVLP, 1.3 15E450 15E451 15E453 15E454 248762
FX300 248756 HVLP, 1.4 15E450 15E424 15E453 15E441 248762
FX300 248757 HVLP, 1.5 15E450 15E452 15E453 15E455 248762
FX300 248758 HVLP, 1.8 15E450 15E425 15E453 15E442 248762
Ref. No. Part No. Description Qty. Ref. No. Part No. Description Qty.
1 see above Air Cap 1 16* Air Valve Spring 1
2 see above Fluid Nozzle 1 17 15E440 Air Valve Fitting 1
3* Needle Packing 1 18 see above Fluid Needle 1
4 15E427 Needle Packing Seat 1 19* Needle Spring 1
5 see above Gun Body 1 20 15E444 Fluid Adjustment Knob 1
6 15E429 Fluid Inlet Fitting 1 21 15E445 Air Inlet Fitting 1
7 15E430 Pattern Adjustment Knob
1
22 15E446 Air Adjustment Valve
1
8 15E431 Air Valve Shaft
1
23 15E447 Trigger
1
9* Packing Holder
2
24 15E448 Gasket
2
10* O-ring
3
25 15E417 Trigger Pin
1
11* Gasket
1
26* Retaining Ring
1
12 15E435 Air Valve Seat
1
27 15E419 Gun Wrench
1
13* O-ring
2
28 15E420 Brush
1
14 15E437 Air Valve Piston
1
29 15E421 Fluid Filter
1
15* O-ring
2
30 15E449 Cup
1

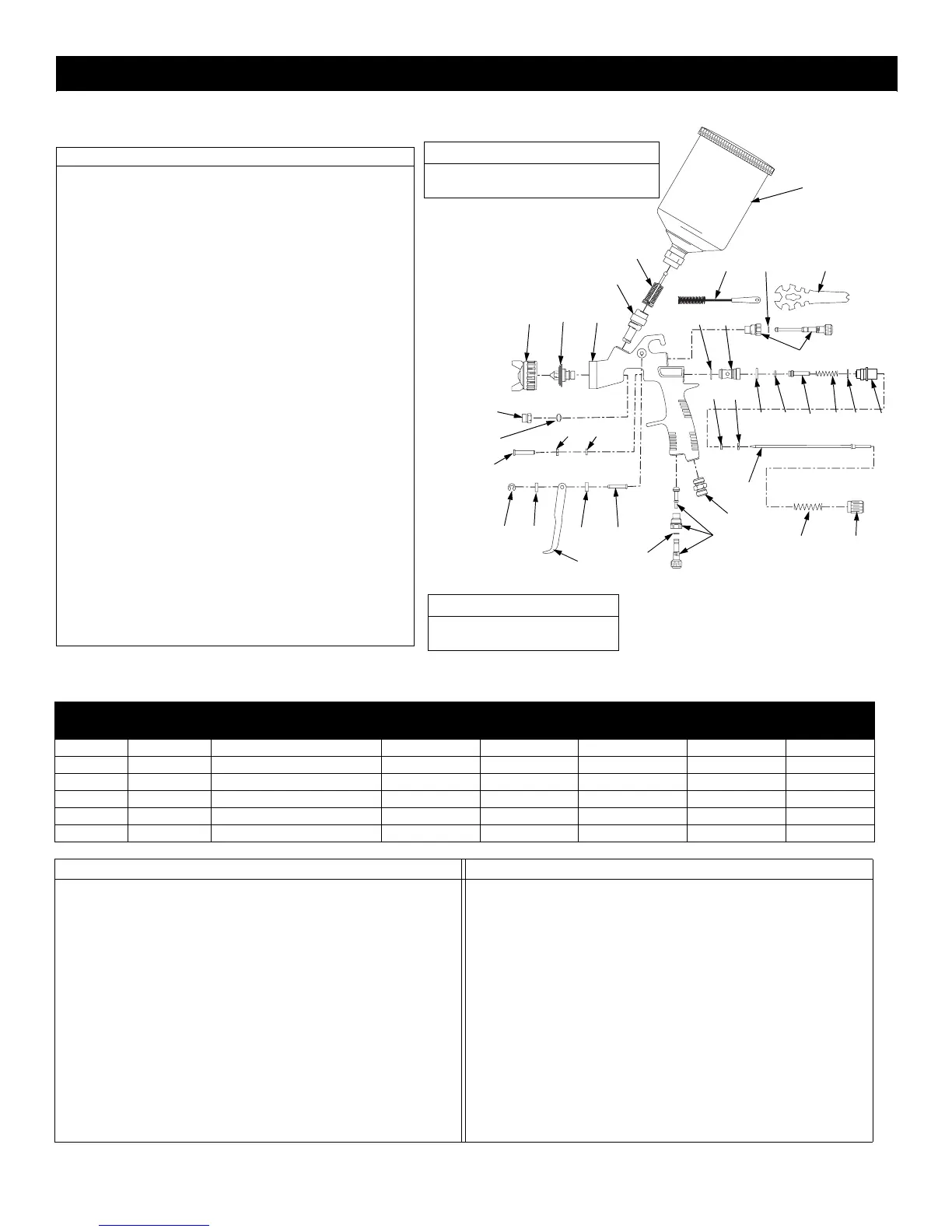

7
19*
9*
10*
11* 12
13* 10* 14 16* 17
10*
9*
18
20
2524
23
2426*
8
3*
4
21
5
* Parts included in Repair Kit
Gun Model Repair Kit
FX100 248761
FX200/300 248762
FX100 - Part No. 248752
Ref. No. Part No. Description Qty.
1 15E392 Air Cap 1
2 15E393 Fluid Nozzle, 1.0 1
3* Needle Packing 1
4 15E395 Needle Packing Seat 1
5 15E396 Gun Body 1
6 15E397 Fluid Inlet Fitting 1
7 15E398 Pattern Adjustment Knob
1
8 15E399 Air Valve Shaft
1
9* Packing Holder
2
10* O-ring
3
11* Gasket
1
12 15E403 Air Valve Seat
1
13* O-ring
2
14 15E405 Air Valve Piston
1
15* O-ring
2
16* Air Valve Spring 1
17 15E408 Air Valve Fitting 1
18 15E409 Fluid Needle
19* Needle Spring 1
20 15E412 Fluid Adjustment Knob 1
21 15E413 Air Inlet Fitting 1
22 15E414 Air Adjustment Valve
1
23 15E415 Trigger
1
24 15E416 Gasket
2
25 15E417 Trigger Pin
1
26* Retaining Ring
1
27 15E419 Gun Wrench
1
28 15E420 Brush
1
29 15E421 Fluid Filter
1
30 15E422 Cup 1
TI5088B
6
29
30
28 27
21
22
15*
13*
15*
Lid Kits (include 5 lid gaskets)
Gun Model Lid Lid Gasket
FX100 15F402 253418
FX200/300 15F403 253417
