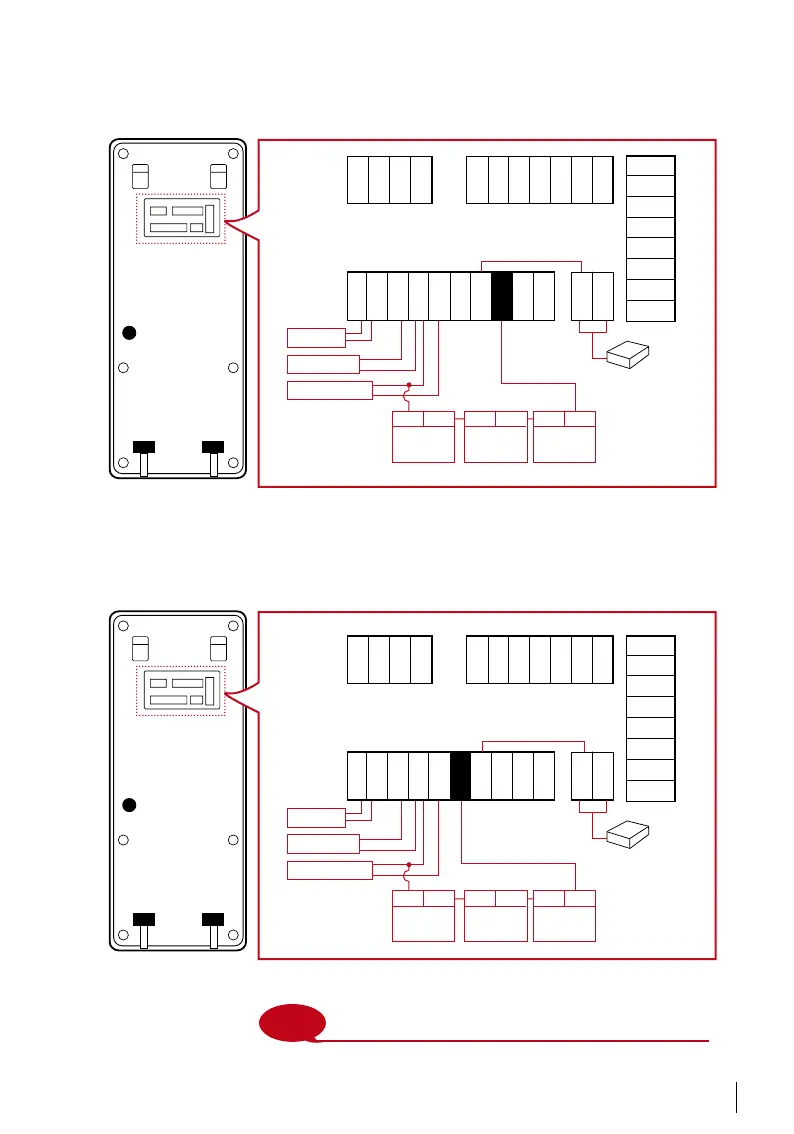

FingerTec R3 - NC (NORMALLY CLOSED) DOOR LOCK SYSTEM; NO (NORMALLY OPEN) DOOR LOCK SYSTEM

13
RJ45-1 RJ45-2 RJ45-3 RJ45-4
BEEP
GLED
RLED
INWD0 INWD1
GND
+12V
+12V
GND
WD0
WD1
GND
RXD
TXD
GND
485+
485
_
DC12V
Power Supply
Doorbell
Door sensor
Release button
Key switch
(NC)
C A
Emergency
break glass
(NC)
3 2
EM lock
(NC)
_
+
RJ45-1 RJ45-2 RJ45-3 RJ45-4
BEEP
GLED
RLED
INWD0 INWD1
GND
+12V
BEL+
BEL
_
SEN
GND
BUT
NO
COM
NC
ALM
_
ALM+
+12V
GND
WD0
WD1
GND
RXD
TXD
GND
485+
485
_
DC12V
Power Supply
Doorbell
Door sensor
Release button
Key switch
(NO)
C A
Emergency
break glass
(NO)
3 2
EM lock
(NO)
_
+
BEL+
BEL
_
SEN
GND
BUT
NO
COM
NC
ALM
_
ALM+
NOTE
Please refer to Installer Guide if you are using AdapTec Plus.
NC (NORMALLY CLOSED) DOOR LOCK SYSTEM
NO (NORMALLY OPEN) DOOR LOCK SYSTEM
