OUTPUT MODE
The M9.02 ow monitor and transmitter features 2 solid state relays and 1
mechanical relay in addition to an analog output 4-20mA.
PROCEDURE FOR OUTPUTS SETTING
- go to the “Options” menu
- enter into the “Outputs activation” sub menu
- enable output(s)
- go to the “Outputs” menu
- set the operating mode for each enabled output

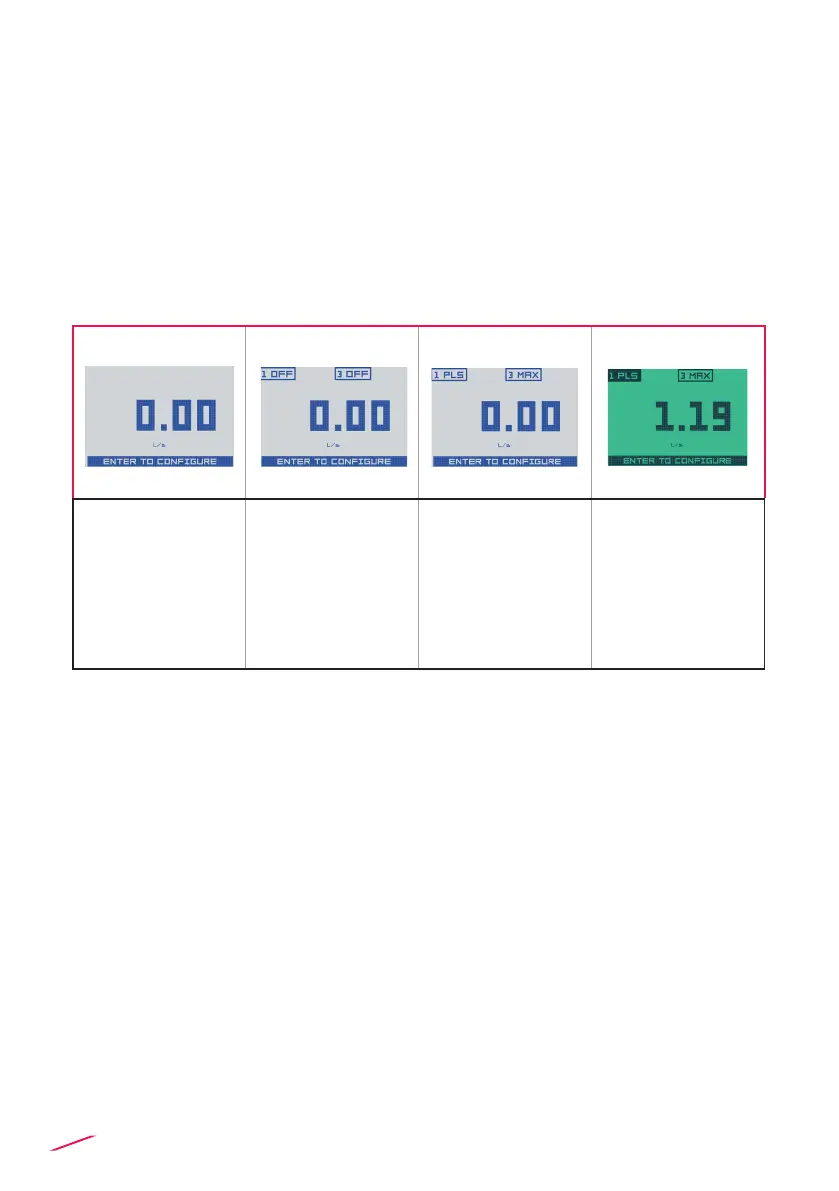

Monitor without digital
output activated
In case a digital output
is enabled, a icon will
appear
In case a digital output
is set, icon reports the
operating mode
In case set digital
output is activated, the
icon will turn to black
(display turns green in
case output is set to
manage an external
device, red to indicate
a activated output as
alarm)
