Firecraft FBK-100 - Wiring and Final Assembly

To Next Page

To Previous Page

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Step 9. Plug the blower cord into the top receptacle.

Step 10. Elite-2 Series Gas Fireplaces - Reinstall the modesty panel.

Reinstall the modesty panel carefully, so that none of the wires become

loose or disconnected.

Step 11. Gas fireplaces -

Reinstall the bottom panel or louver assembly.

Wood-burning fireplaces -

Reinstall the bottom louver panel or grille.

Step 12. Restore the electrical power to the unit.

Figure 7

IMPORTANT: Ground lead must be connected to the green screw

located on the junction box. Failure to do so will prevent the

appliance from operating. The appliance must be electrically

grounded in accordance with local codes or, in the absence of local

codes, the National Electrical Code, ANSI/NFPA 70-(latest edition).

(In Canada, the current CSA C22-1 Canadian Electrical Code.)

Step 13. Start the fireplace by following the procedure indicated in

the lighting instructions section of the Homeowner’s Care and Oper-

ating Instructions manual supplied with the fireplace.

Step 14. Check the start up and shutdown, and the running operation of

the blower. If the variable speed control is being used, check its operation.

JUNCTION BOX

Factory Wired

Field Wired

NEUTRAL SIDE OF RECEPTACLE

HOT SIDE OF RECEPTACLE

Tab intact

120 VAC BLACK

NEUTRAL WHITE

GROUND GREEN

Black

Red

BLOWER

Green Ground Screw

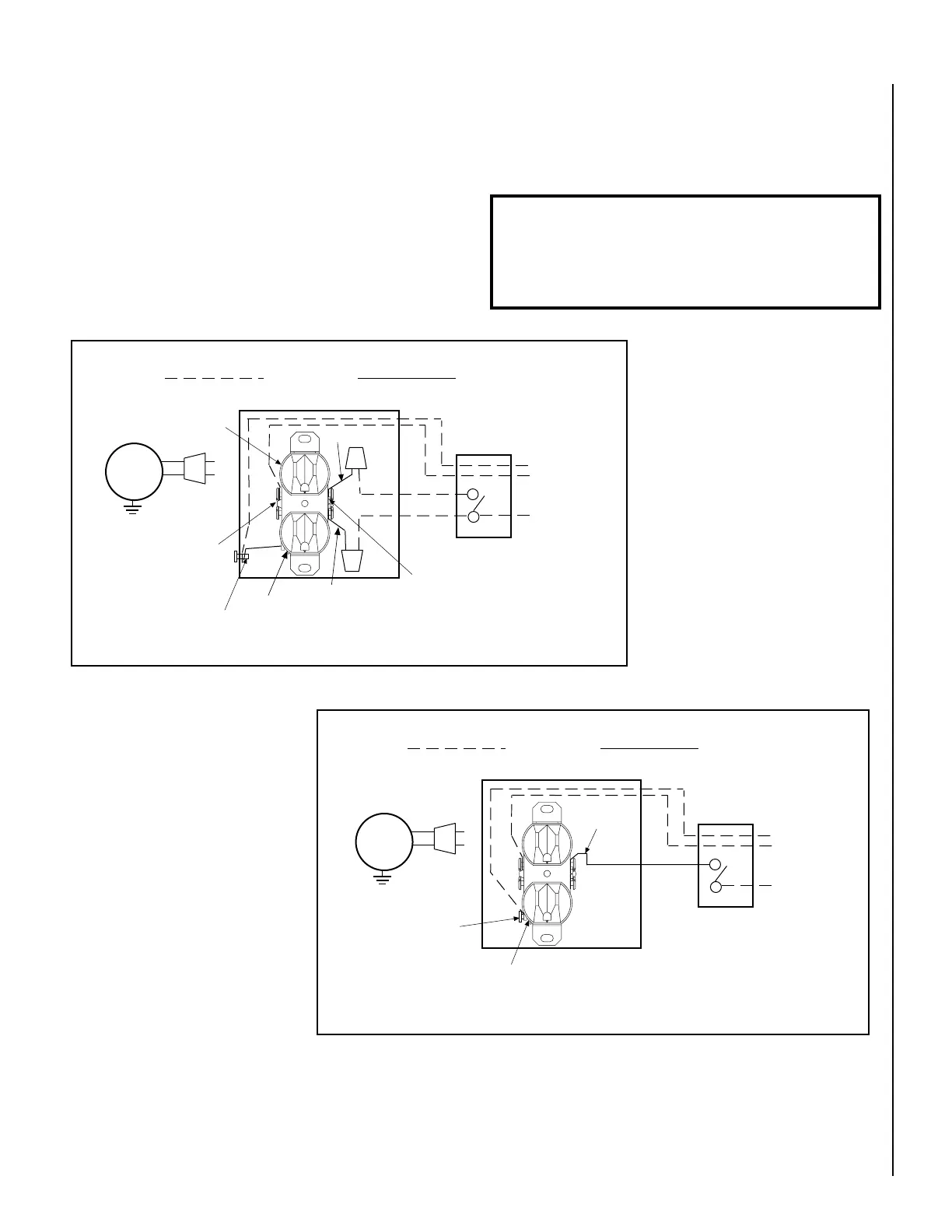

120V, 60HZ, 1PH BLOWER CONTROL CIRCUIT WIRING (Direct Vent Appliances)

Plug blower into top receptacle

BOTTOM RECEPTACLE

If any of the original wire as supplied must be replaced, it must be replaced with type AWM 105 degree C - 14 gauge wire.

*Wall-mounted ON/OFF Blower Switch

or Speed Control

*ON/OFF Blower Switch is field provided when using

FBK-100 kit;Speed Control is provided in FBK-200 kit.

Break Tab Off

TOP RECEPTACLE

Figure 8
