Mount and fix the L shape legs on the wall and on the unit respectively, using the M8×13
bolts and nuts and the washers as shown in (Figure-3) and tighten by using the wrench
supplied.
Figure-4

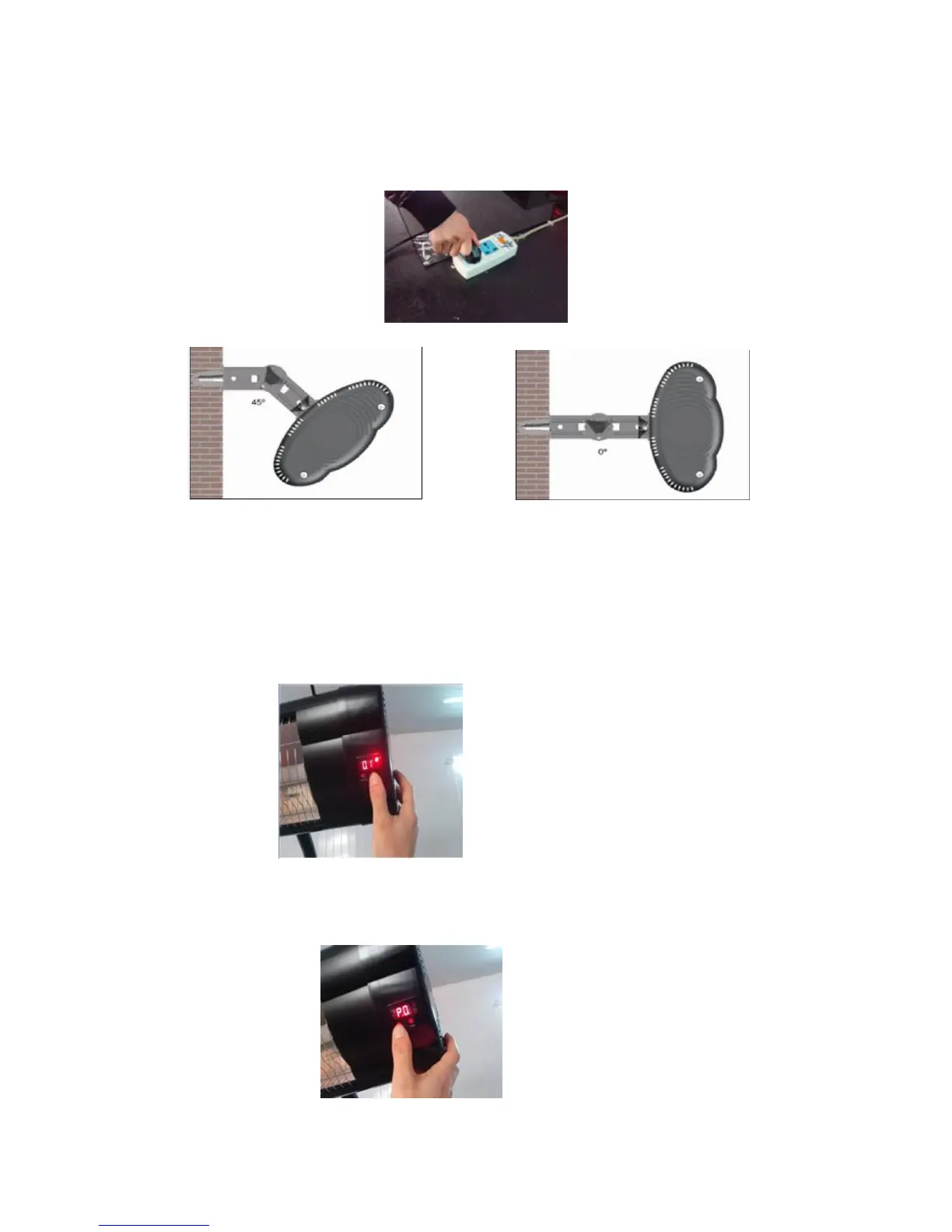

Depending on the area to be heated the angle of the unit can be adjusted between 0-45
degrees by the help of M8 Bakelite head bolt and nut fixture.
Before operating the unit joints should be checked once again.
4. Using steps
Step 1：Connect the power line and the power strip
Step 2：Press Open/Close once，the digital screen shows P.0
