Firefly YASBP-25HL User Manual

Hot Water Series

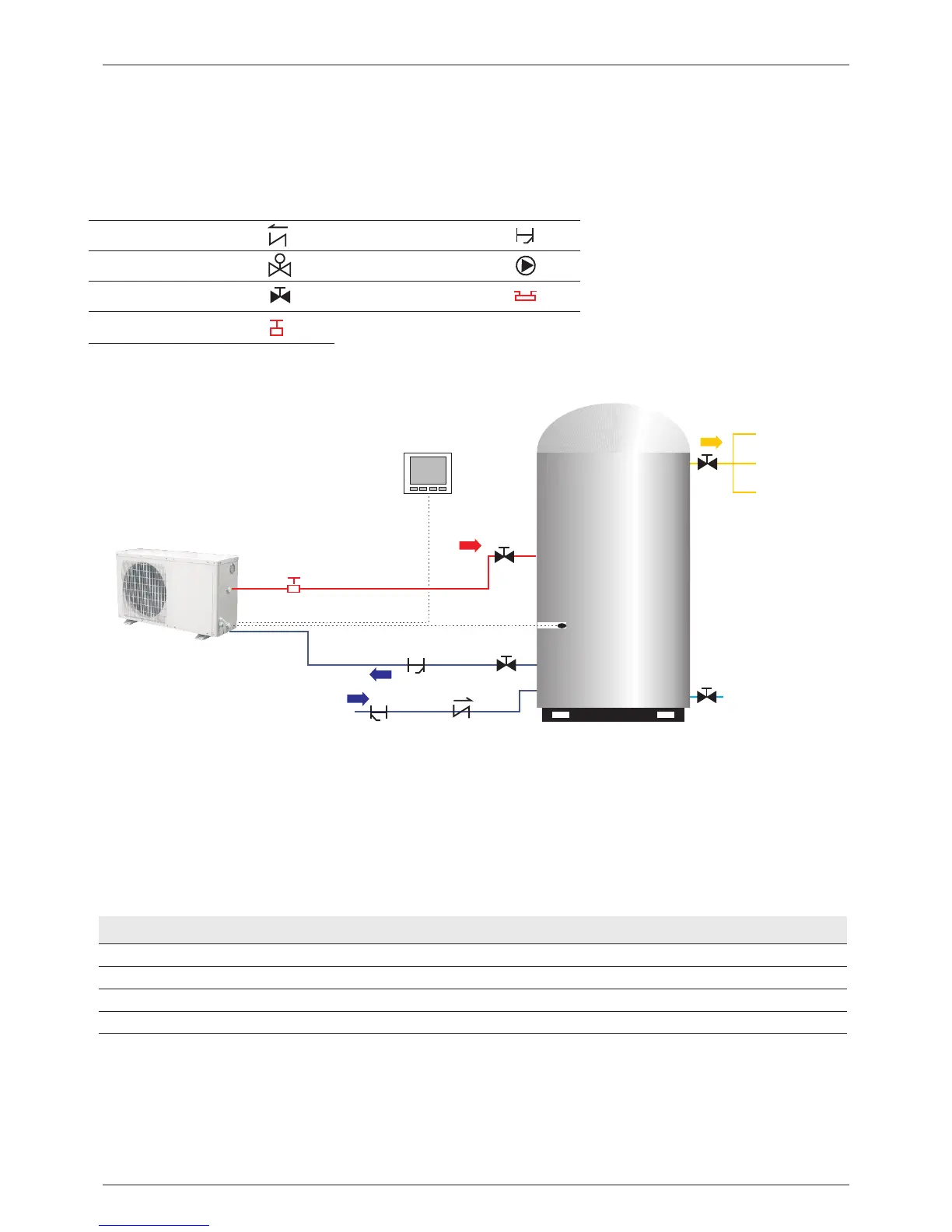

Heat pump Installation
Shut Off Valve
Solenoid Valve
Check Valve
Elec Heater
Water Pump
Y-Shape Filter
12
Flow Switch
Heat Pump
Controller
Heat Pump
Dinning Hall
Filter
Filter
Flow Switch
(can omit)
Guest Room
Sauna Room
Drainage
Water Tank
Check Valve
Water tank
temp. sensor
5.3 Power Source Installation
Recommended wire specification
2
3x1.5mm
Power Cable
LCD controller
SensorModel Water Pump
YASBP-25HL
YASBP-38HL
YASBP-56HL
2
3x1.5mm
2
3x2.5mm
2
3x0.75mm
2
3x0.75mm
2
3x0.75mm
2
3x0.35mm
2
3x0.35mm
2
3x0.35mm
2
2x0.35mm
2
2x0.35mm
2
2x0.35mm
NOTE: the above specification is the lowest one we recommend. Please choose bigger wires if additional
power is required under installation.
YASBP-90HL
2
3x2.5mm
2
3x0.75mm
2
3x0.35mm
2
2x0.35mm
NOTE:
Before installing the heat pump unit, please read this manual carefully and keep it for future reference.

Firefly YASBP-25HL Specifications

General

Brand	Firefly
Model	YASBP-25HL
Category	Heat Pump
Language	English
