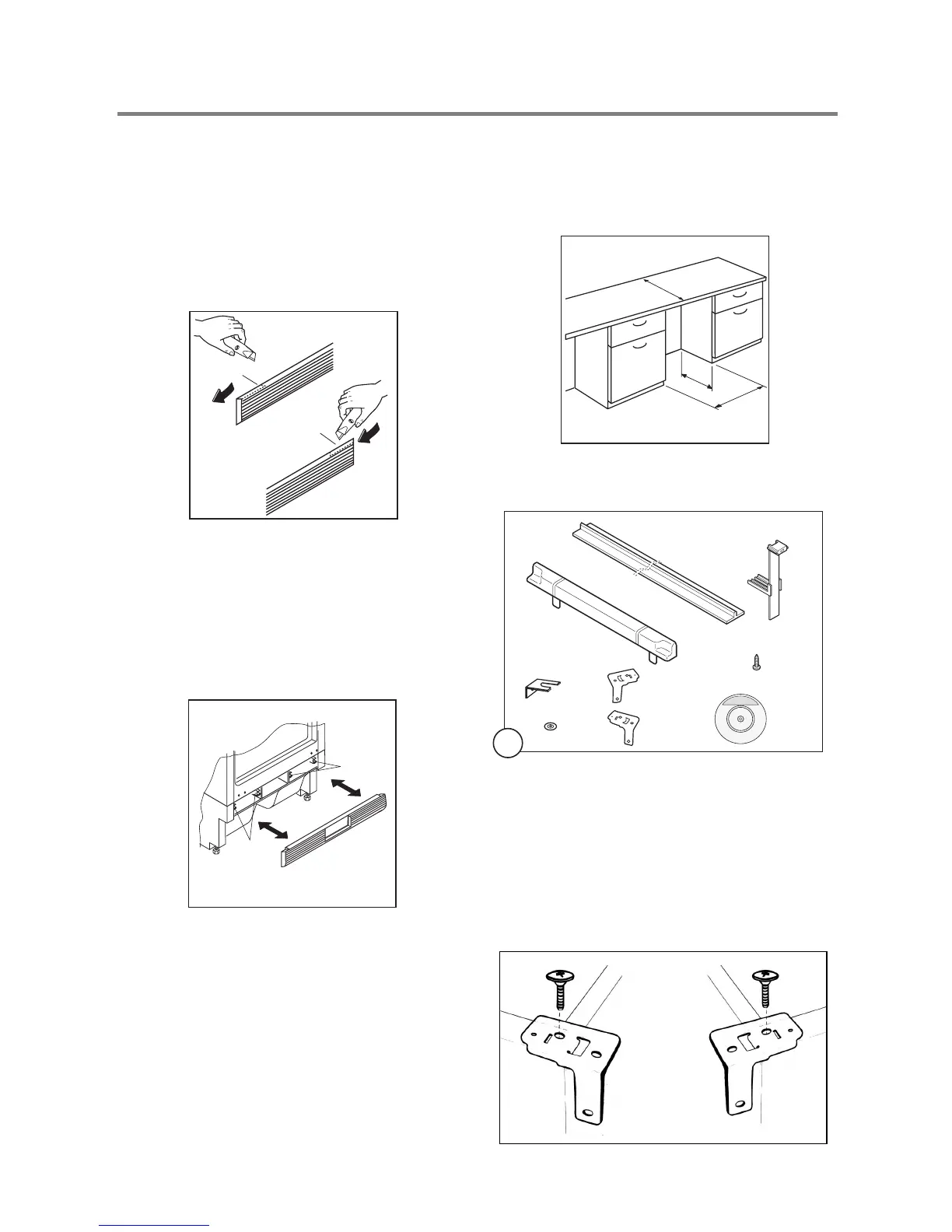

Building-in instructions
Before carrying out any work, remove the plug from
the power socket.
Grid preparation
Left door opening:
Remove the left side (A) of the grid cutting it from the
rear (see figure).
Right door opening:
Remove the right side (B) of the grid cutting it from
the rear (see figure).
To position the grid on the appliance proceed as
follows:
Apply the grid to the base of the appliance by
pushing on to the clasps (a) until they click.
Building in the appliance under a
worktop
The dimensions of the recessed installation area
must correspond with those indicated in the figure.
DO002/2
A
B
DO001
a
a
DO013
600
550
min.
600
Installation kit
1
1xA
12
1xB
2xC
2
2
1
1
2
1. Two cabinet securing brackets are supplied with
the installation pack. They need to be assembled
onto the cabinet prior to cabinet being pushed into
the Kitchen aperture.
- To fit these brackets remove the two screws at the
top left and right hand front corners of the cabinet.
- Position the two brackets as shown in the figure
and replace the two securing screws.
Left hand
bracket
Right hand
bracket
