Firenzi FLF140 - Fitting the plinth

16

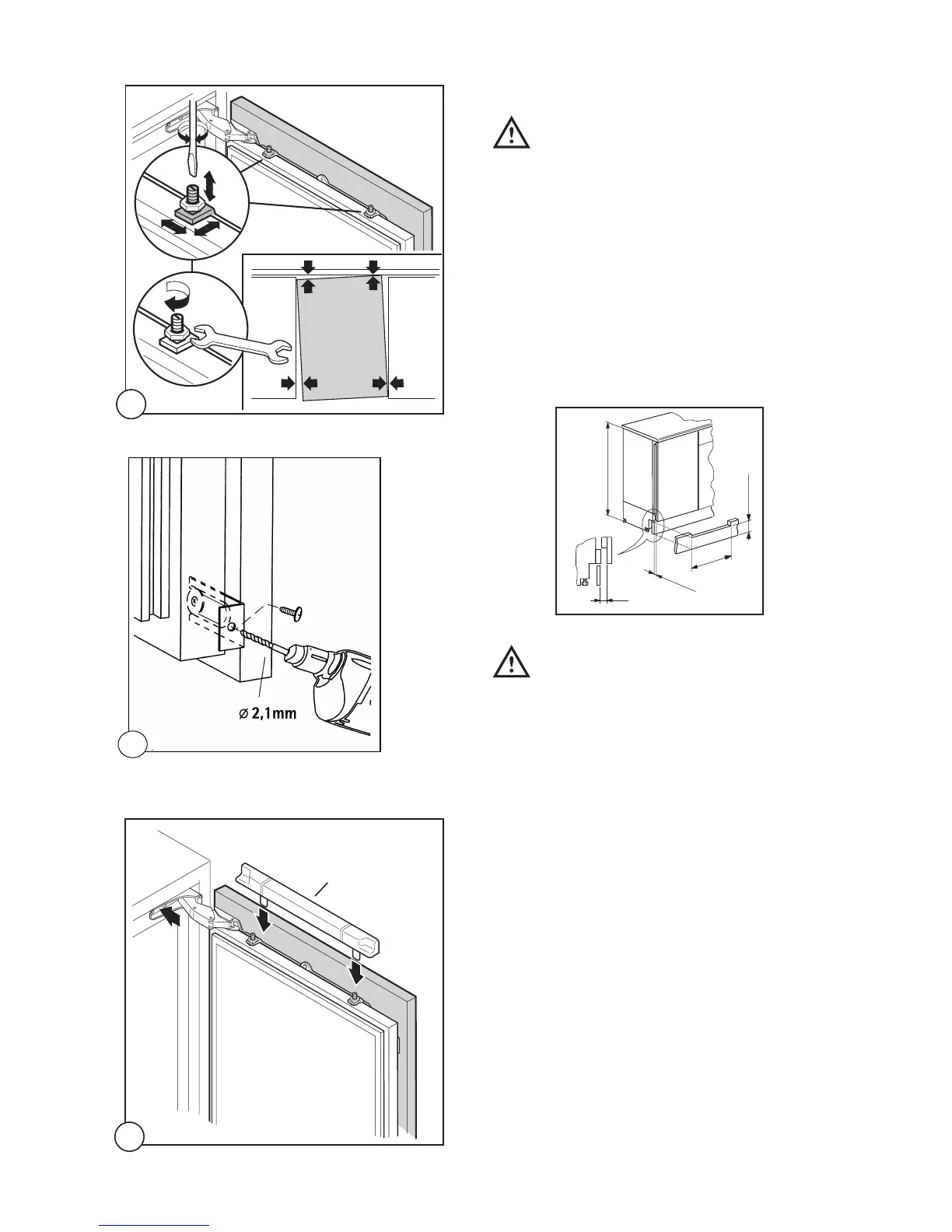

Fitting the plinth
Important
For the efficient operation of the appliance, it is
important that the original ventilation grid is
used.
¥ For an opening height dimension A=820 mm and a
plinth height dimension a=100 mm, the plinth may
be fitted without adjustments. The same applies to
an opening height dimension B=870 mm and a
plinth height dimension b=150 mm.
¥ For plinth heights greater than a=100 mm, b=150
mm, a cut should be made in the plinth, 580 mm
wide, in the centre of the appliance position,
leaving a remaining height of a=100 mm, b=150
mm.
¥ Attach plinth to the kitchen units.
Important
The plinth must be positioned at a minimun
distance of 25 mm from the door.
DO008
580
a = 100
b = 150
25 - 80
A = 820
B = 870
25
7. Refit the covering strip.
11
=
=
10
12
13
A
