4.3 Firepro Generators connections FIREPRO GEN1. TO FIREPRO GEN4.
These terminals are for the connection of FirePro Aerosol Generators. Test lamps are
provided in the terminals to allow testing of the system before connecting the FirePro
generators. These test lamps should be removed from the terminals if a FirePro Aerosol
Generator is to be fitted.
Any FirePro generator outputs that are not being used should be left with test lamps
fitted.
+ - + -
24V in 24V outDETECT
FIREPRO AEROSOL
GENERATOR
+ -
Firepro
Gen1
Firepro
Gen2
Firepro
Gen3
Firepro
Gen4
TEST LAMPS

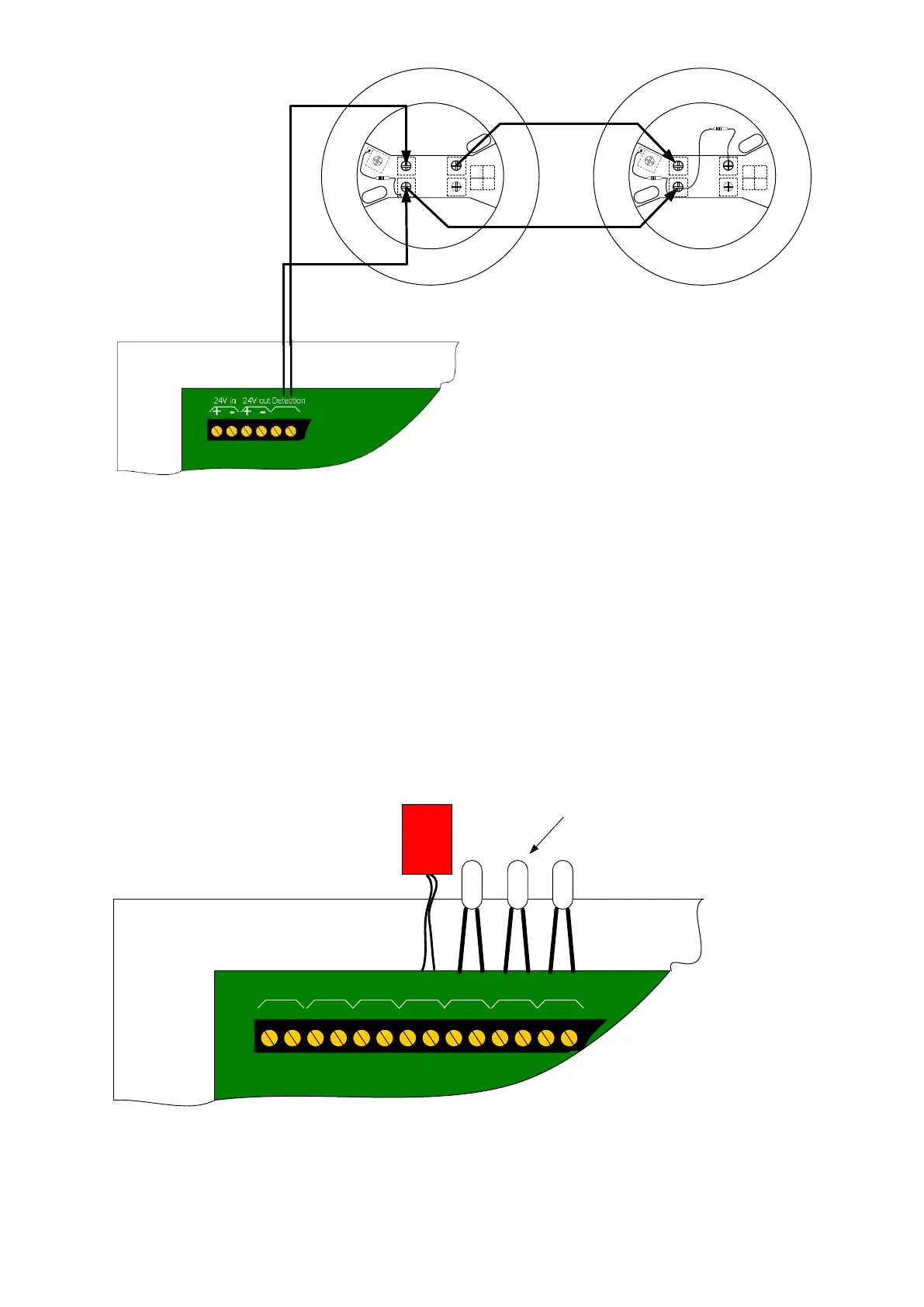

Figure 6- Connection to Aerosol Generator
