ASSEMBLY
9

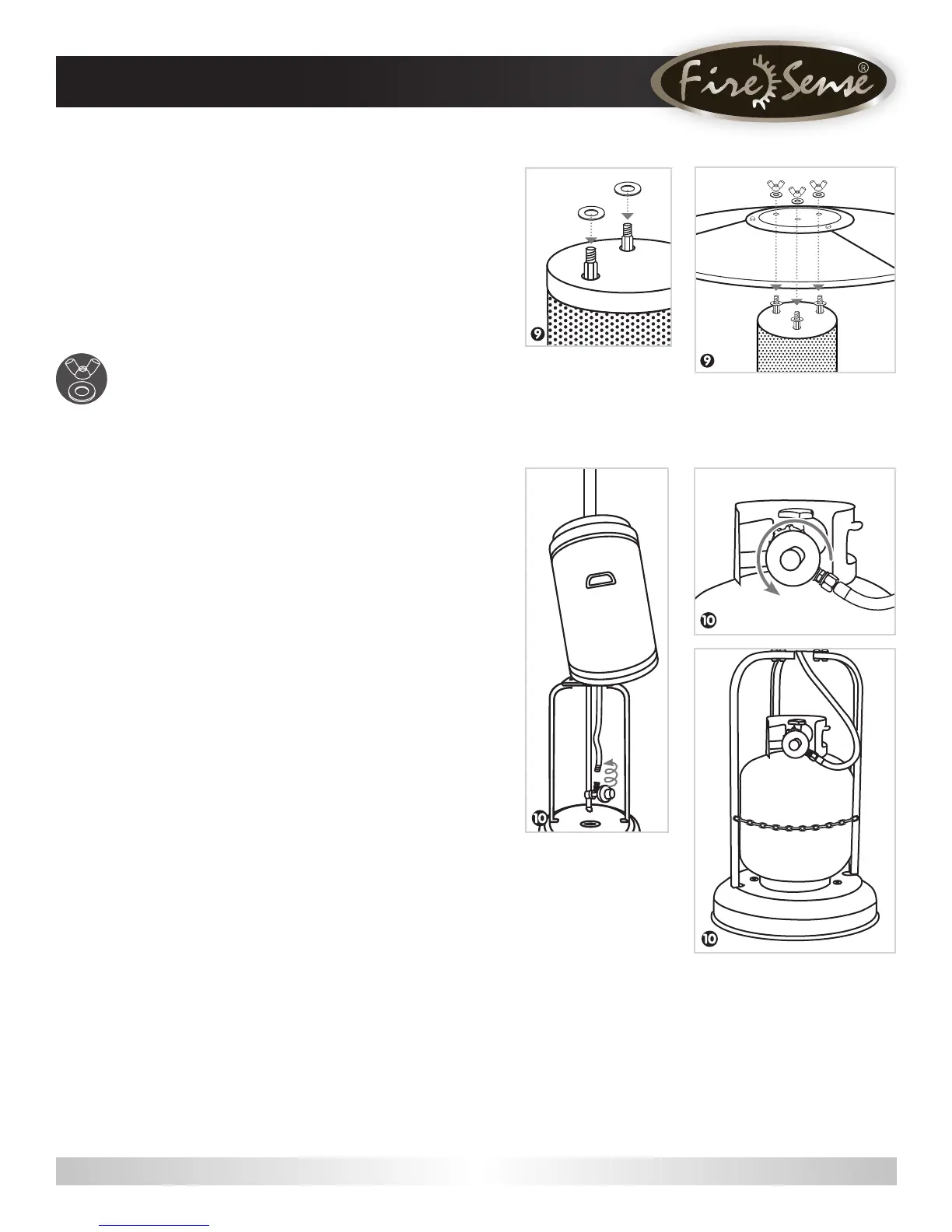

While supporting heater, tilt the Head Assembly
C
and slide 3 Large Flat Washers
R
over the
Studs
W
. Place the reector assembly onto the
and slide 3 Large Flat Washers over the and
onto the . Secure with 3 Wing Nuts.
Once you have tightened the Wing Nuts, return the heater
to an upright position.
Hardware Used: 6x Large Flat Washer
B
3x Wing Nut
V
10
Connect the hose and regulator to the LP cylinder.
The LP cylinder is sold separately. Use a standard
9.07 kg / 20 lb propane cylinder only. Lift the Tank Housing
D
up and rest it on the top of the assembled Post Supports
I
.
Screw Regulator
H
onto Gas Hose
E
. Do not cross thread.
Hand tighten securely then tighten with the Wrench. Attach
the Regulator to the valve on the LP cylinder and hand tighten
securely. Place LP tank onto base of heater. Secure the
LPG tank by attaching the Chain
L
onto the post supports.
Lower the Tank Housing.
NOTE: Use this heater only with a propane vapor withdrawal
supply system. See chapter 5 of the standard for storage and
handling of liqueed petroleum gas, ANSI/NFPA 58. Your local
library or re department should have this book.
