Firex CUCIMAX CBTG180A - 3.3 Operating Parts Identification

02
-
CBT.A
-
TOUCH
-
01
-
EN
DESCRIPTION OF THE MACHINE
14

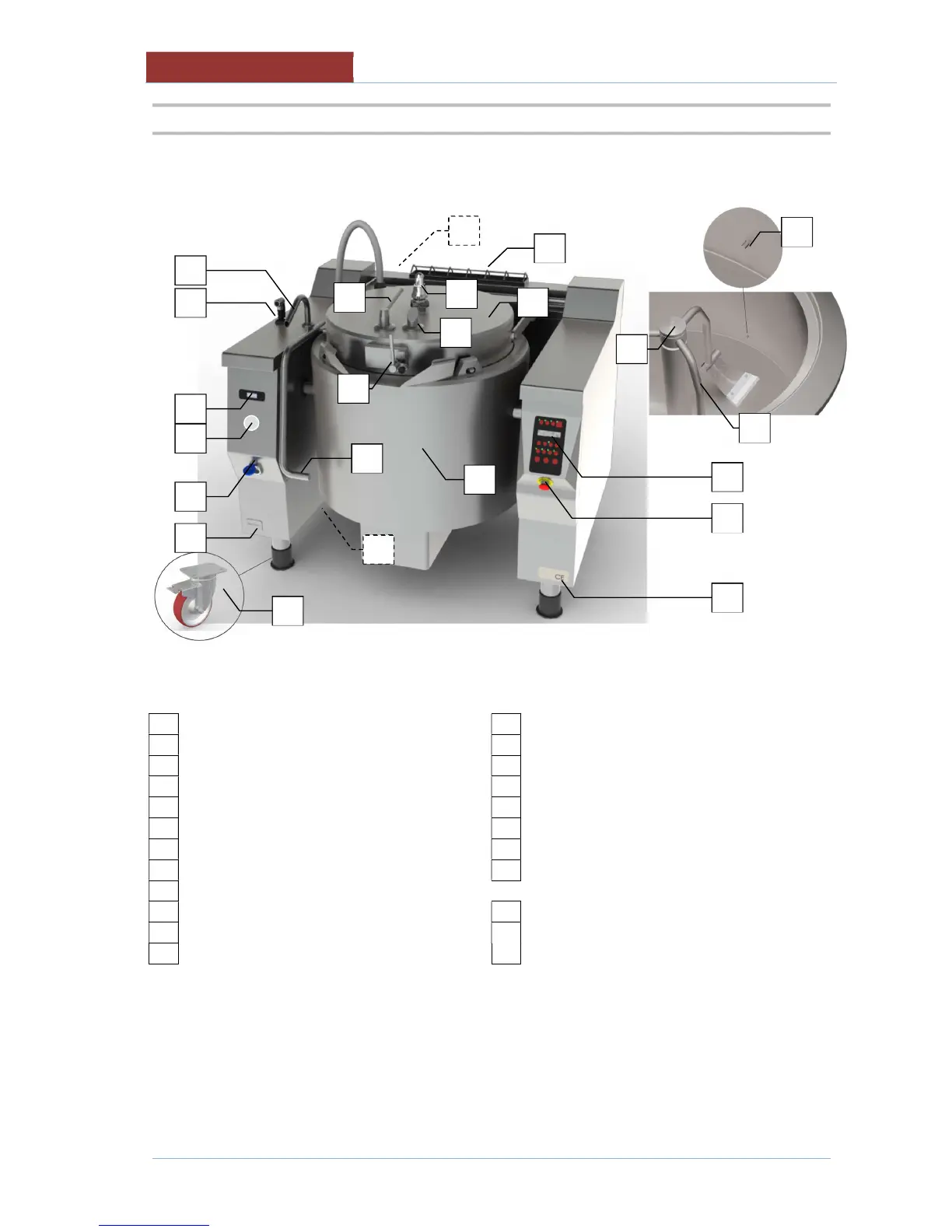

3.3 OPERATING PARTS
01
Technical Data Plate
13
Safety valve
02
Plate serial no.
14
Condensate drain
03
Emergency button
15
Sensor
in the pan
04
Control panel
16
Mixer
05
Cooking pan
17
Mixer locking ring
06
Fill tap
18
Steam vent (mod.CBTG)
07
Lid
19
Steam pressure gauge (mod.CBTV)
08
Lid handle
20
Steam safety valve (mod.CBTV)
09
Lid closing lever
OPTIONAL
10
Lid lock lever
21
Plug socket
11
Pressure switch
22
Shower
12
Steam outlet vent
23
Castors
