Firman T09371 - Control Panel

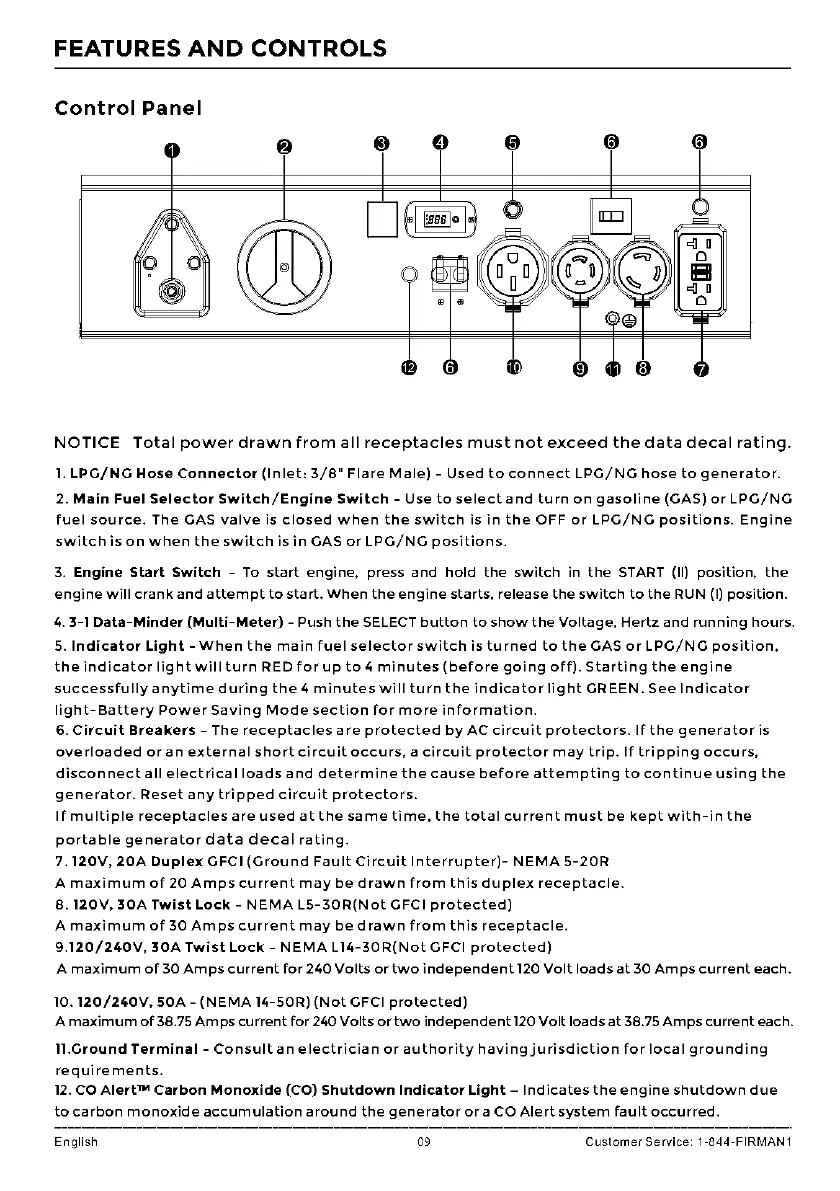

FEATURES AND CONTROLS
Control Panel
NOTICE Total power drawn from all receptacles must not exceed the data decal rating.
1. LPC/NC Hose Connector (Inlet: 3/8" Flare Male) - Used to connect LPG/NG hose to generator.
2. Main Fuel Selector Switch/Engine Switch - Use to select and turn on gasoline (GAS) or LPG/NG
fuel source. The GAS valve is closed when the switch is in the OFF or LPG/NG positions. Engine
switch is on when the switch is in GAS or LPG/NG positions.
3. Engine Start Switch - To start engine, press and hold the switch in the START (II) position, the
engine will crank and attempt to start. When the engine starts, release the switch to the RUN (I) position.
4. 3-1 Data-Minder (Multi-Meter) - Push the SELECT button to show the Voltage, Hertz and running hours.
5. Indicator Light -When the main fuel selector switch is turned to the GAS or LPG/ NG position,
the indicator light will turn RED for up to 4 minutes (before going off). Starting the engine
successfully anytime during the 4 minutes wi II turn the indicator light GREEN. See Indicator
light-Battery Power Saving Mode section for more information.
6. Circuit Breakers - The receptacles are protected by AC circuit pr otectors. If the generator is
overloaded or an external short circuit occurs, a circuit protector may trip. If tripping occurs,
disconnect all electrical loads and determine the cause before attempting to continue using the
generator. Reset any tripped circuit protectors.
If multiple receptacles are used at the same time, the total current must be kept with-in the
portable gene r ator data decal rating.
7. 120V, 20A Duplex CFCI (Ground Fault Circuit Interrupter)- NEMA 5-20R
A maximum of 20 Amps current may be drawn from this duplex receptacle.
8. 120V, 30A Twist Lock - NEMA L5-30R(Not GFCI protected)
A maximum of 30 Amps current may bed rawn from this receptacle.
9.120/240V, 30A Twist Lock - NEMA L14-30R(Not GFCI protected)
A maximum of 30 Amp s curren t for240Volts or two independent 120 Volt loads at 30 Amps current each.
10.
120/240V, S0A- (NEMA 14-50R) (Not GFCI protected)
A maximum of 38.75 Amps current for 240 Volts or two independent 120 Volt loads at 38.75 Amps current each.
11.Cround Terminal - Con s ult an electrician or authority having jurisdiction for loca I grounding
re qui re men ts.
12. CO Alert™ Carbon Monoxide (CO) Shutdown Indicator Light - Indi c ates the engine shutdown due
to carbon monoxide accumulation around the generator or a CO Alert system fault occurred.
