First Alert ReadyGuard Quick Start Guide

Page 3
7.
Set RF House ID in the wireless keypads as follows:
If using a 5827 wireless keypad, set the keypad’s DIP switches to the RF House ID programmed in field
*24. If using a 5804BD button key or 5827BD keypad, set the RF House ID per its instructions.
If using Powerline Carrier Devices, set their House ID to “A,” (programmed as “0”) or use field *25 to
change the ID to avoid conflicts with existing installations.
8.
Set the Real-Time Clock as follows:
Enter time/date setting mode by entering the Installer Code + [63].
The hour prompt is displayed. Enter the correct hour, then press [*] to accept and advance.
For each subsequent prompt, enter the correct value, then press [*].
You will exit this mode automatically after entering the year, or if no keys are pressed for 1 minute.
9.
Test the system as follows:
After installation and programming, enter Installer Code + [5].
To exit Test mode, enter Installer Code + OFF.
10.
Assign desired User Codes by following the procedures on the next page and in the User Guide.
Show the user how to perform the various system functions.
11.
Perform site-initiated downloader session (to load central station ID) by Installer Code + [#] + [1].
BELL
6-14VDC
120mA max.
(e.g., WAVE2EX)
HANDSET
PHONE
LINE
}
INCOMING
PHONE
LINE
}
EARTH
GROUND
2k OHMS
EOLR
INCOMING
PHONE
LINE
TO HANDSET
PHONE
LINE
PIEZO
6-14VDC
30mA max.
HARD
WIRED
ZONE
1
2
3
4
8
9
65
11
7
10
12
15
16
13
14
EARTH GROUND
PHONE ZONE
N/U SOUNDERS
PLCD
AC
9VAC
15VA
TO 24HR 110VAC
UNSWITCHED
OUTLET
RJ11
8
POSITION
JACK
WARNING:
TO PREVENT
RISK OF
SHOCK,
DISCONNECT
TELEPHONE
LINE AT TELCO
JACK BEFORE
SERVICING
THIS UNIT.
THIS DEVICE COMPLIES WITH PART 15 OF FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY
INTERFERENCE RECEIVED, INCLUDING INTERFERENCE
THAT MAY CAUSE UNDESIRED OPERATION.
FCC ID: CFS8DLLYNX
CANADA: 17481021165A
COMPLIES WITH FCC RULES, PART 68
FCC REGISTRATION No. 5GBUSA-25623-AL-E
RINGER EQUIVALENCE: 0.6B
THIS EQUIPMENT SHOULD BE INSTALLED
IN ACCORDANCE WITH THE NATIONAL
FIRE PROTECTION ASSOCIATION’S STAN-
DARD 72, CHAPTER 2 (NATIONAL FIRE
PROTECTION ASSOC., BATTERYMARCH
PARK, QUINCY, MA 02269). PRINTED
INFORMATION DESCRIBING PROPER
INSTALLATION, OPERATION, TESTING,
MAINTENANCE, EVACUATION PLANNING
AND REPAIR SERVICE IS TO BE PROVIDED
WITH THIS EQUIPMENT.
PL513
POWERLINE INTERFACE
LOCAL SOUNDER
DISABLE JUMPER
CUT = DISABLE
WEEKLY TESTING IS
REQUIRED TO ENSURE
PROPER OPERATION
OF THIS SYSTEM.
ALL OUTPUT CIRCUITS
ARE POWER LIMITED.
TIP RING
TIP RING
(+) ( ) ( )
(+) ( )
(+)
SYNC
IN
DATA
OUT
POWERLINE
CARRIER DEVICES
PLUG-IN
TRANSFORMER
(e.g., ADEMCO 1332)
CANADA USE 1332CN
NOTE: BACKUP BATTERY IS REQUIRED. USE
SINGLE 9V ALKALINE BATTERY (e.g., DURACELL
PC1604 PROCELL) OR SIX 1.5V ALKALINE “AA”
BATTERIES (e.g., DURACELL MN1500).
REPLACE BATTERY AT LEAST EVERY YEAR.
1 2 3 4
BLACK
YELLOW
RED
GREEN
4-WIRE MODULAR
PHONE CORD WITH
FLYING LEADS

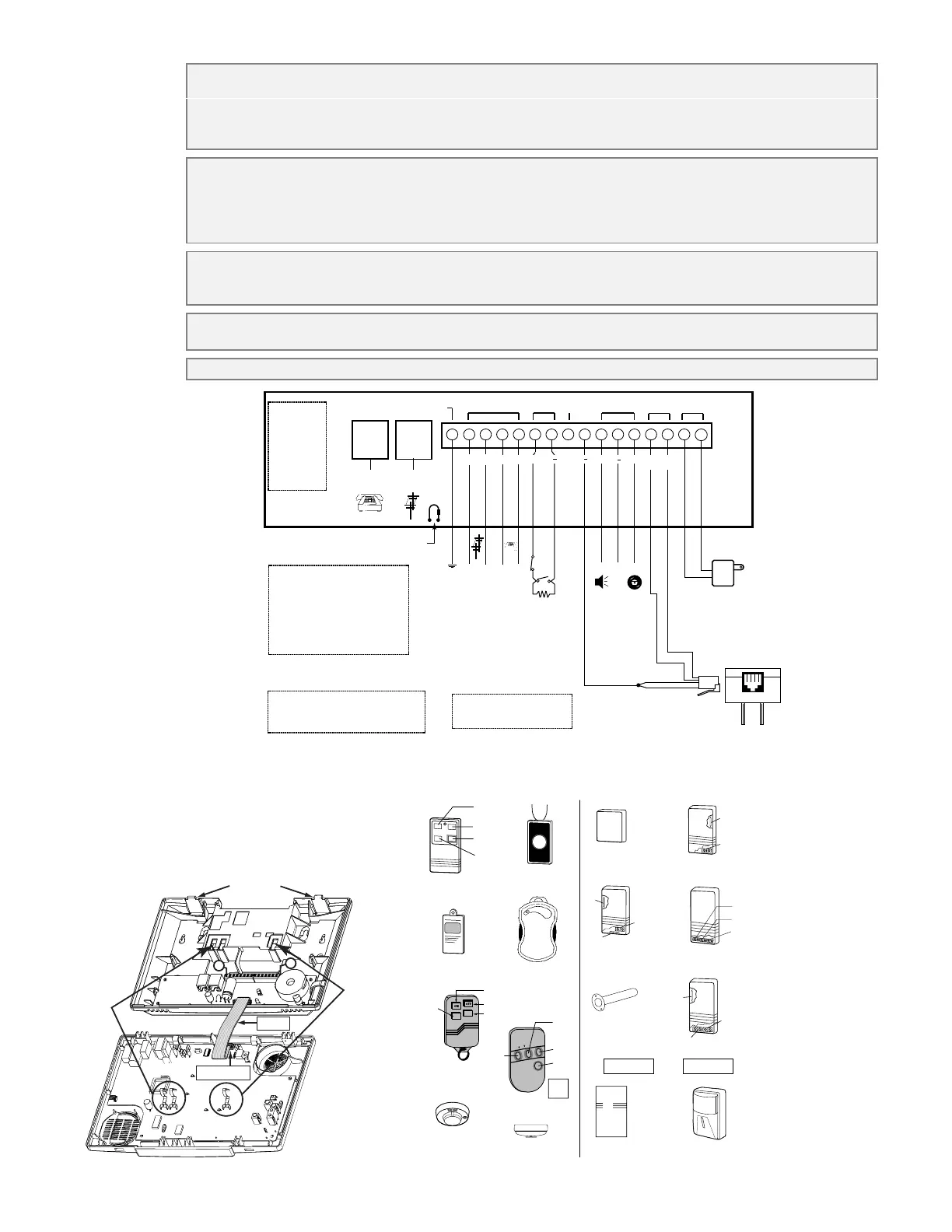

ReadyGuard WIRING CONNECTIONS
5800 Series Transmitter Loop Numbers: The following illustration shows the compatible
transmitters and their associated input types and loop designations.
RED WIRE
MARKING
1
16
LOCKING TABS
DISCONNECT
THIS END ONLY!
NOTE:
MAKE SURE BATTERY
CLIPS ENTER SLOTS
WHEN SNAPPING
FRONT ASSEMBLY
TO BACKPLATE
BATTERY CLIPS
5801
ENROLL AS "UR" OR "RF"
LOOP
1
5802/5802CP
ENROLL AS "BR"
LOOP
1
5802MN
ENROLL AS "UR" OR "RF"
LOOP
1
5806/5807/5808
(5806 SHOWN)
ENROLL AS "RF"
5817
ENROLL AS "RF"
LOOP
1
(PRIMARY)
2
(AUX. CENTER)
3
(AUX. RIGHT)
5818
ENROLL AS "RF"
LOOP
1
5849
ENROLL AS "RF"
LOOP
1
(SOUND)
LOOP
1
(MOTION)
5890
ENROLL AS "RF"
5816
ENROLL AS "RF"
LOOP
2
(REED)
LOOP 1
(TERMINALS)
5827
SET HOUSE CODE
5827BD
SET HOUSE CODE
5816MN
ENROLL AS "RF"
LOOP
2
(REED)
LOOP 1
(TERMINALS)
5819
ENROLL AS "RF"
LOOP
2
(REED)
LOOP 1
(TERMINALS)
ALTERNATE
POSITION
FOR LOOP 2
LOOP 3
(TERMINALS)
YOU MUST
ENROLL
THIS
BUTTON
LOOP 3
LOOP 1
LOOP 2
LOOP 4
5804
ENROLL AS "BR"
5804BD
ENROLL AS "BR"
LOOP 3
LOOP 1
LOOP 2
LOOP 4
SET
HOUSE
CODE
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
YOU MUST
ENROLL THIS
BUTTON
LOOP 3
LOOP 1
LOOP 2
LOOP 4
YOU MUST
ENROLL THIS
BUTTON
5802MN2
ENROLL AS "UR" OR "RF"
LOOP
1
LOOP
1
5809
ENROLL AS "RF"
5814
ENROLL AS "RF"
LOOP
1
(REED)
