Step 5 - Install MEL Motor Drive assembly

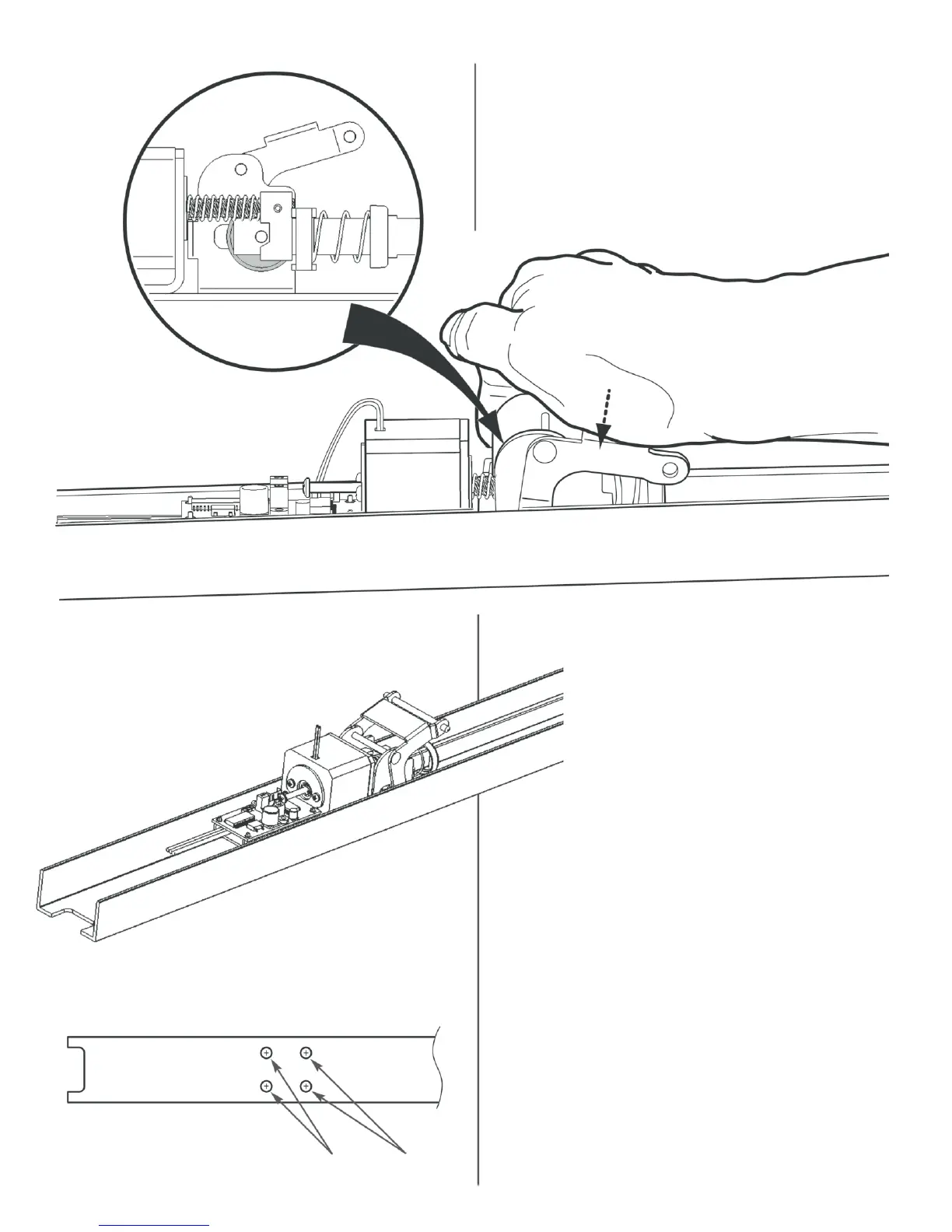

5.1 - Position MEL assembly behind rear
activating bracket. While pressing rear activating
bracket down, position MEL dogging bracket over
connecting rod and hook around rear axle pin.
5.2 - Place entire assembly into channel and
mount both MEL assembly and activating bracket
to channel using 4X screws and holes. Activation
brackets should move freely when pressed down.
Step 5.1 – Hook MEL dogging bracket around rear axle pin
Step 5.2 – Screw identification MEL Activating
Motor drive bracket
