4x

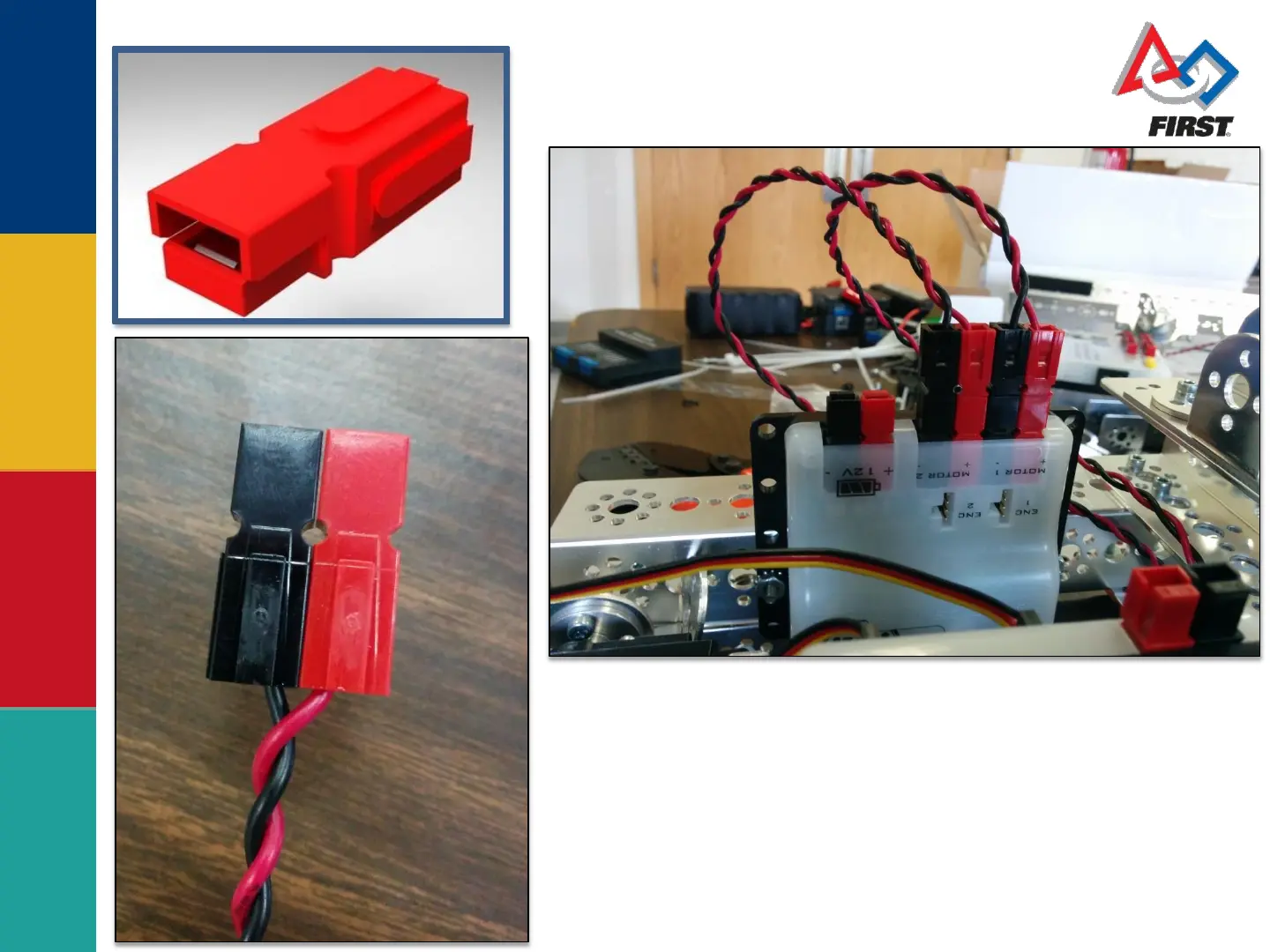

Crimp on two Anderson Powerpole®
connecters, of the corresponding colors, to
the ends of the motor cables. Then attach
them to the Modern Robotics motor
controller. Slot one is for the left motor and
slot two is for the right.
