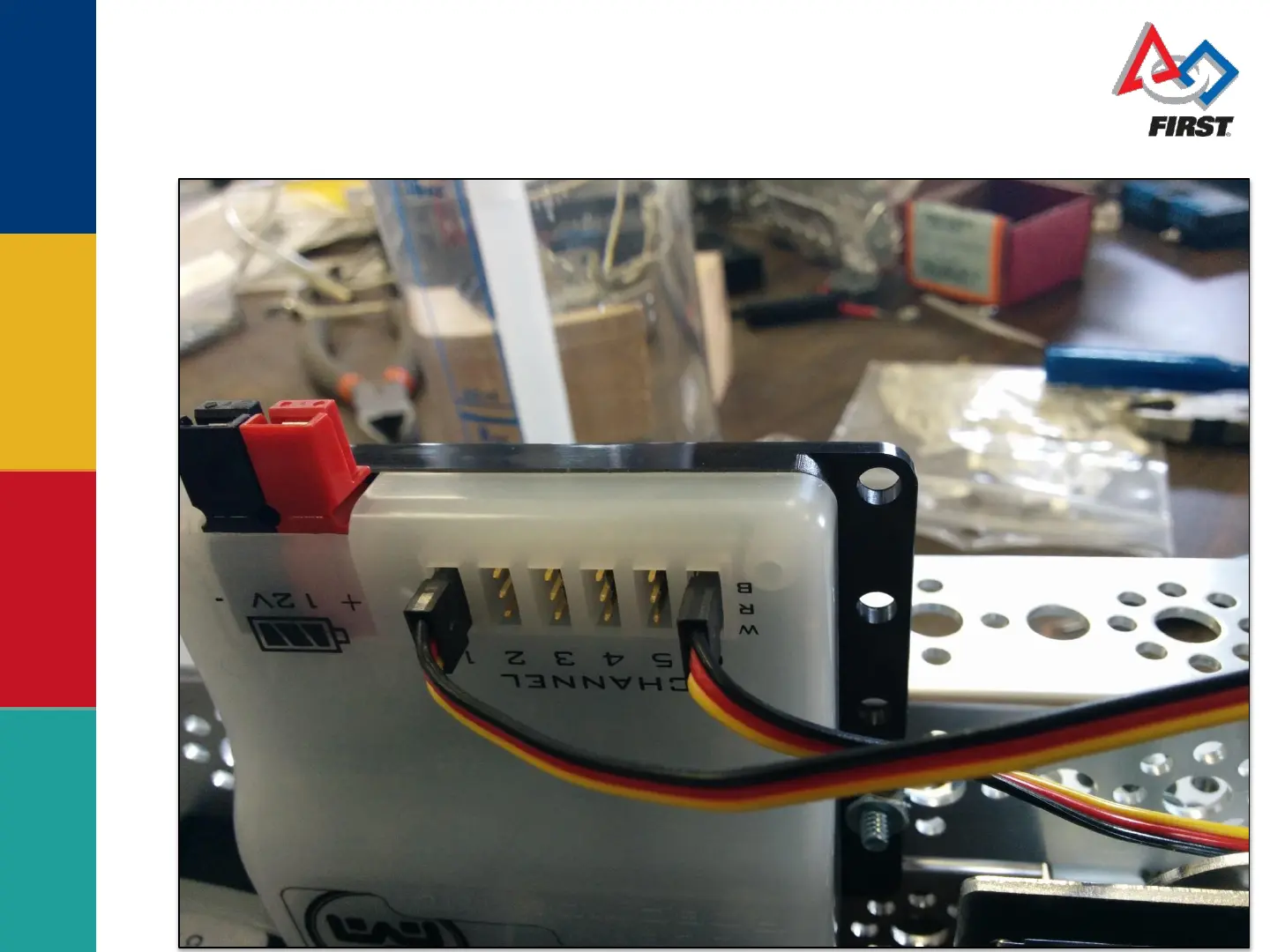

Plug the servo cables into the Modern Robotics servo controller. The
bottom servo that controls the arm should go into channel one. The
top servo that controls the claw should be plugged into channel six.
