FISCH LS 8000 - Parts List

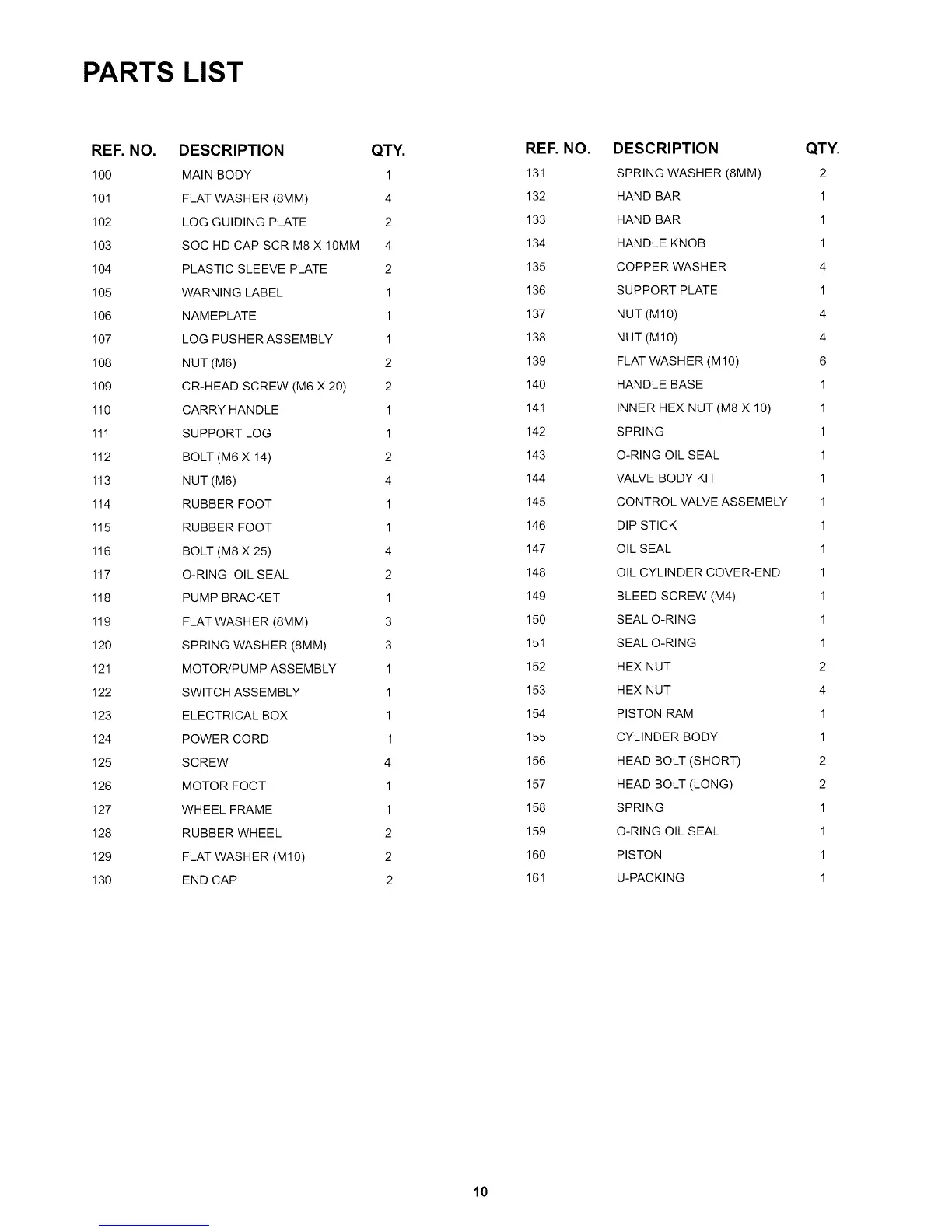

PARTS LIST
REF. NO.
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
DESCRIPTION QTY.
MAIN BODY 1
FLAT WASHER (8MM) 4
LOG GUIDING PLATE 2
SOC HD CAP SCR M8 X 10MM 4
PLASTIC SLEEVE PLATE 2
WARNING LABEL 1
NAMEPLATE 1
LOG PUSHER ASSEMBLY 1
NUT (M6) 2
CR-HEAD SCREW (M6 X 20) 2
CARRY HANDLE 1
SUPPORT LOG 1
BOLT (U6 X 14) 2
NUT (M6) 4
RUBBER FOOT 1
RUBBER FOOT 1
BOLT (M8 X 25) 4
O-RING OIL SEAL 2
PUMP BRACKET 1
FLAT WASHER (8MM) 3
SPRING WASHER (8MM) 3
MOTOR/PUMP ASSEMBLY 1
SWITCH ASSEMBLY 1
ELECTRICAL BOX 1
POWER CORD 1
SCREW 4
MOTOR FOOT 1
WHEEL FRAME 1
RUBBER WHEEL 2
FLAT WASHER (M10) 2
END CAP 2
REF. NO.
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
DESCRIPTION QTY.
SPRING WASHER (8MM) 2
HAND BAR 1
HAND BAR 1
HANDLE KNOB 1
COPPER WASHER 4
SUPPORT PLATE 1
NUT (M 10) 4
NUT (M 10) 4
FLAT WASHER (M10) 6
HANDLE BASE 1
INNER HEX NUT(M8 X 10) 1
SPRING 1
O-RING OIL SEAL 1
VALVE BODY KIT 1
CONTROL VALVE ASSEMBLY 1
DIP STICK 1
OIL SEAL 1
OIL CYLINDER COVER-END 1
BLEED SCREW (M4) 1
SEAL O-RING 1
SEAL O-RING 1
HEX NUT 2
HEX NUT 4
PISTON RAM 1
CYLINDER BODY 1
HEAD BOLT (SHORT) 2
HEAD BOLT (LONG) 2
SPRING 1
O-RING OIL SEAL 1
PISTON 1
U-PACKING 1
10
