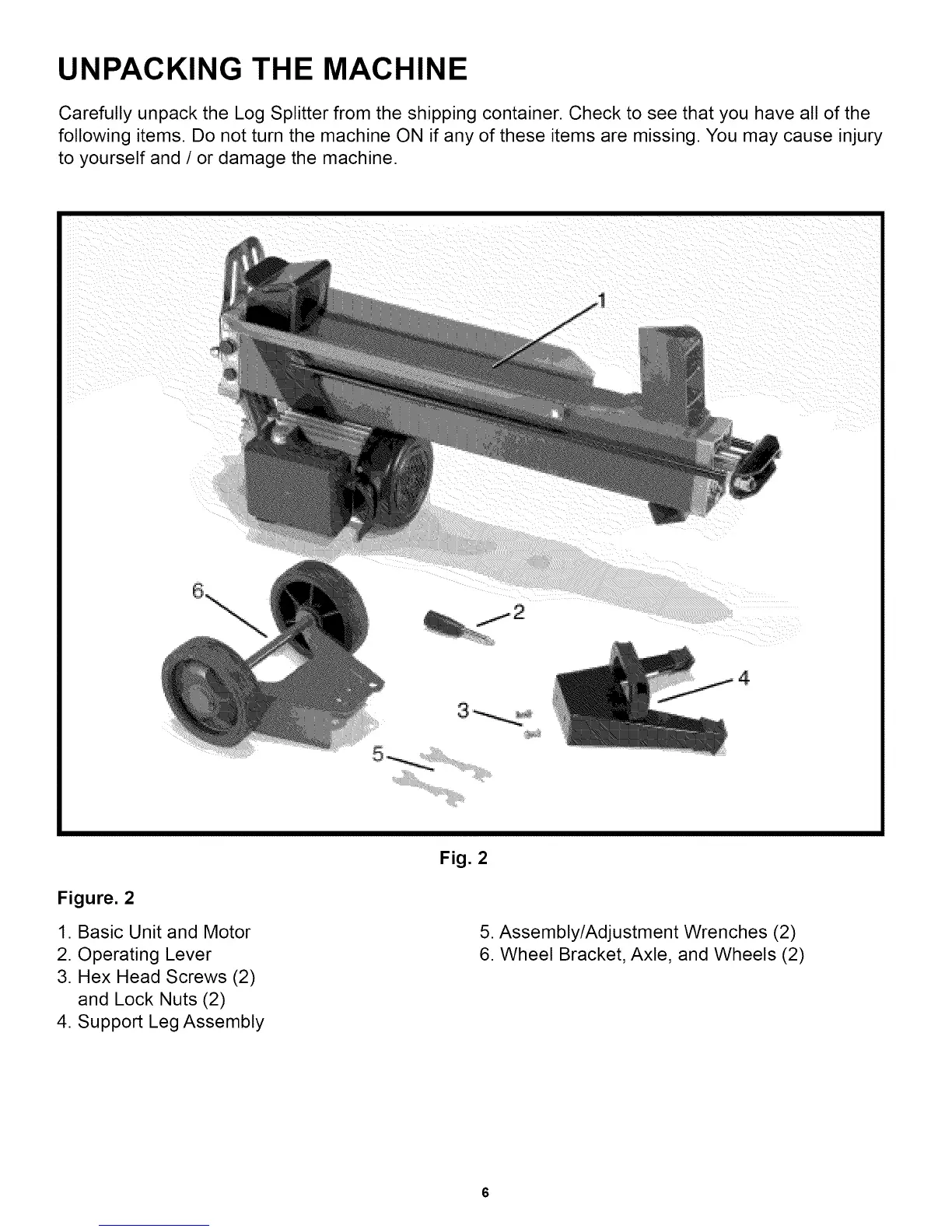

UNPACKING THE MACHINE
Carefully unpack the Log Splitter from the shipping container. Check to see that you have all of the
following items. Do not turn the machine ON if any of these items are missing. You may cause injury
to yourself and / or damage the machine.
4
Figure. 2
1. Basic Unit and Motor
2. Operating Lever
3. Hex Head Screws (2)
and Lock Nuts (2)
4. Support Leg Assembly
Fig. 2
5. Assembly/Adjustment Wrenches (2)
6. Wheel Bracket, Axle, and Wheels (2)
