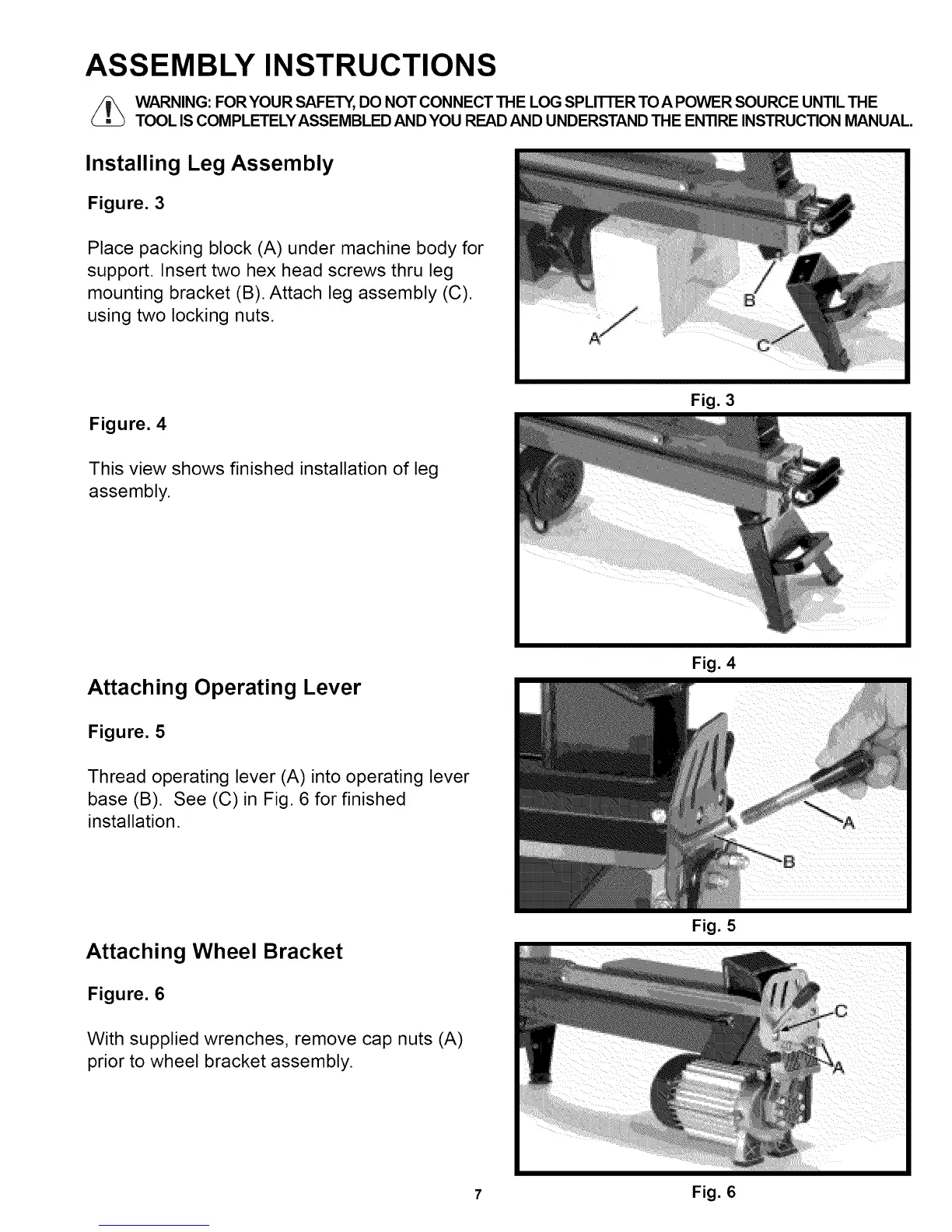

ASSEMBLY INSTRUCTIONS
_ WARNING:FORYOUR SAFETY,DO NOTCONNECTTHE LOGSPLI'I-I'ERTOA POWERSOURCEUNTILTHE
TOOLIS COMPLETELYASSEMBLEDANDYOU READAND UNDERSTANDTHE ENTIREINSTRUCTIONMANUAL.
Installing Leg Assembly
Figure. 3
Place packing block (A) under machine body for
support. Insert two hex head screws thru leg
mounting bracket (B). Attach leg assembly (C).
using two locking nuts.
Figure. 4
This view shows finished installation of leg
assembly.
Fig. 3
Attaching Operating Lever
Figure. 5
Thread operating lever (A) into operating lever
base (B). See (C)in Fig. 6 for finished
installation.
Fig. 4
Attaching Wheel Bracket
Figure. 6
With supplied wrenches, remove cap nuts (A)
prior to wheel bracket assembly.
Fig. 5
7 Fig. 6
