4150K and 4160K Series
34

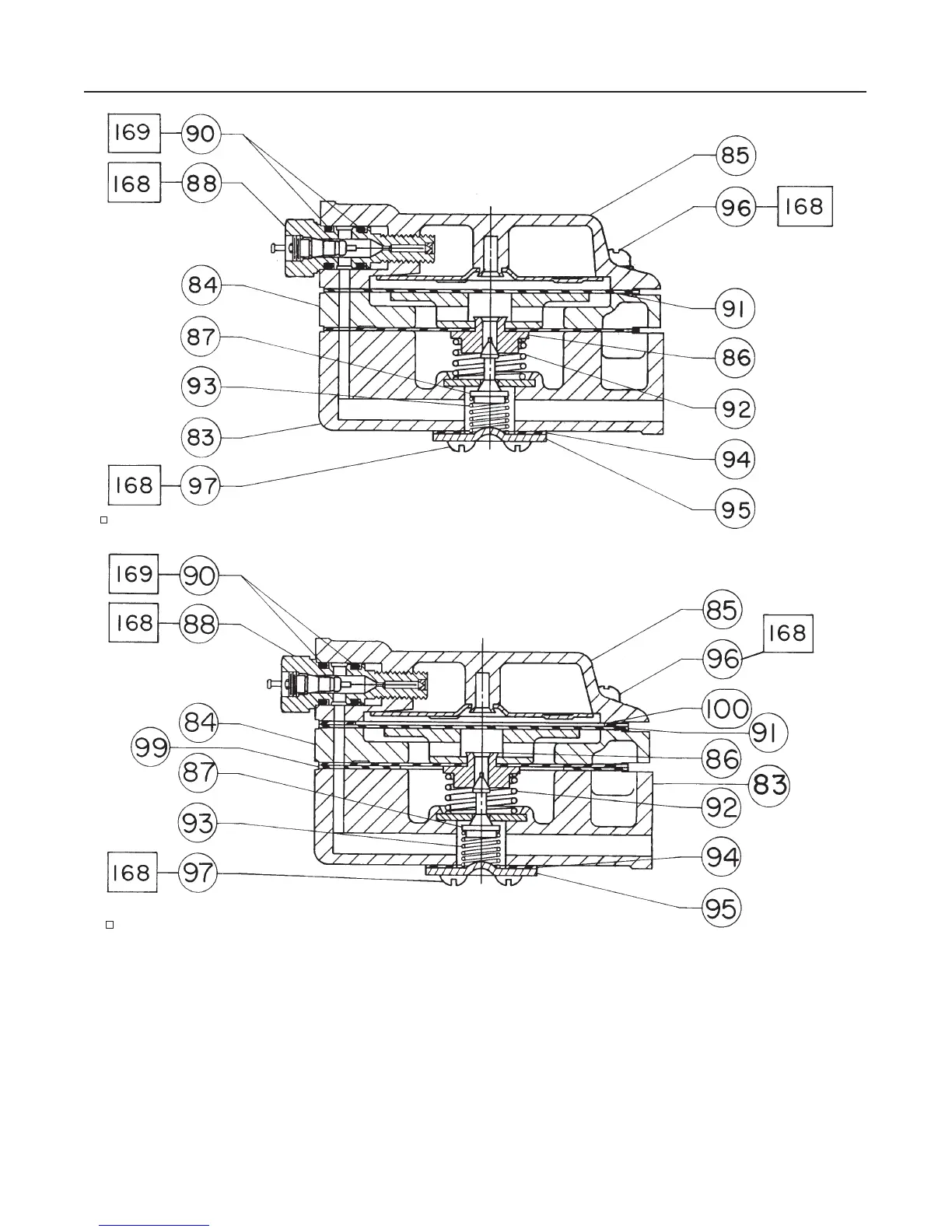

Figure 23. Relay Assemblies
22B0463-C / DOC
APPLY LUB
22B0462-C / DOC
APPLY LUB
Key Description Part Number
228 Spacer Spool, steel (specify quantity req’d)
Types 470, 472, 480, 513, 656, 657, 667,
pipe stand 1051, 1052 & 1061 1F9067 24092
Type 115
W/o regulator or w/one regulator 1K1534 24092
W/two regulators 1K4144 24092
Type 115C 1K6547 24092
Key Description Part Number
229 Cap Screw, steel pl (not shown) (specify quantity req’d)
Type 115
W/o regulator or w/one regulator 1F9603 24052
W/two regulators 1C8702 24052
Type 115C 1D7704 24052
Types 126 & 127 1B2275 24052
Types 1051 & 1052 casing-mounted controller 1A5828 24052
