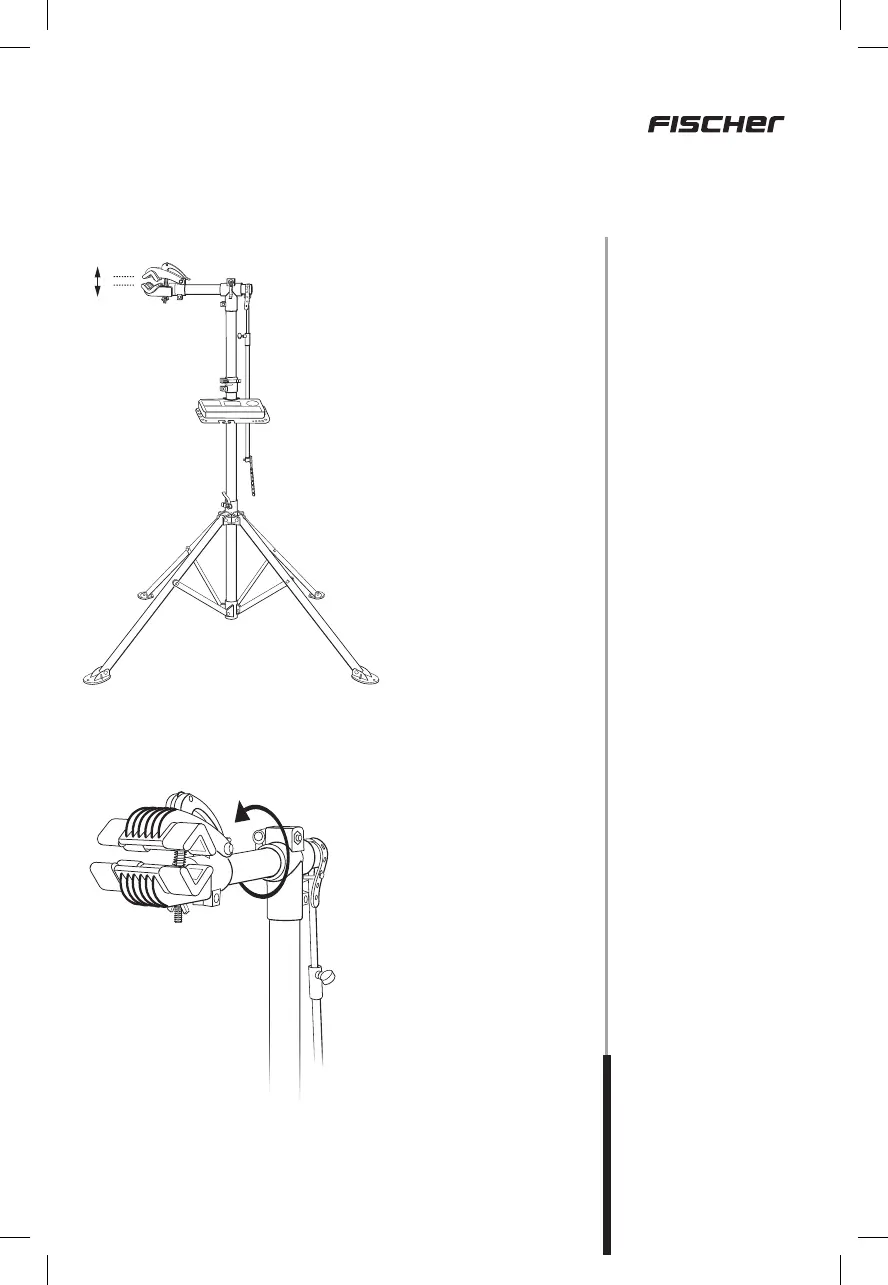

• Open the lever on the extension
tube connector (1) and move the
extension tube (2) up or down to
adjust to desired height. Close
the lever to lock the position.
• Open the clamp assembly (3) and
turn the nut beneath the clamp
assembly until the clamping jaws
encircle the bicycle frame.
Use the lever on the clamping
jaws (3) to fasten the clamp on
the frame. In order to avoid
damaging your bicycle, do not
tighten the nut too tightly.
• Remove the bike from the clamp
assembly (3) in the reverse
order.
• The clamp can be rotated 360°,
allowing easy access to any
parts of the bicycle. To adjust
the angle of the clamp, slightly
loosen knob located on the other
side of the clamp. After adjusting
the angle, fasten the knob again.
Caution! To avoid unintentional
angle change make sure the
knob it always fastened.
Use
