Fisher & Paykel 5 Series User Manual

13

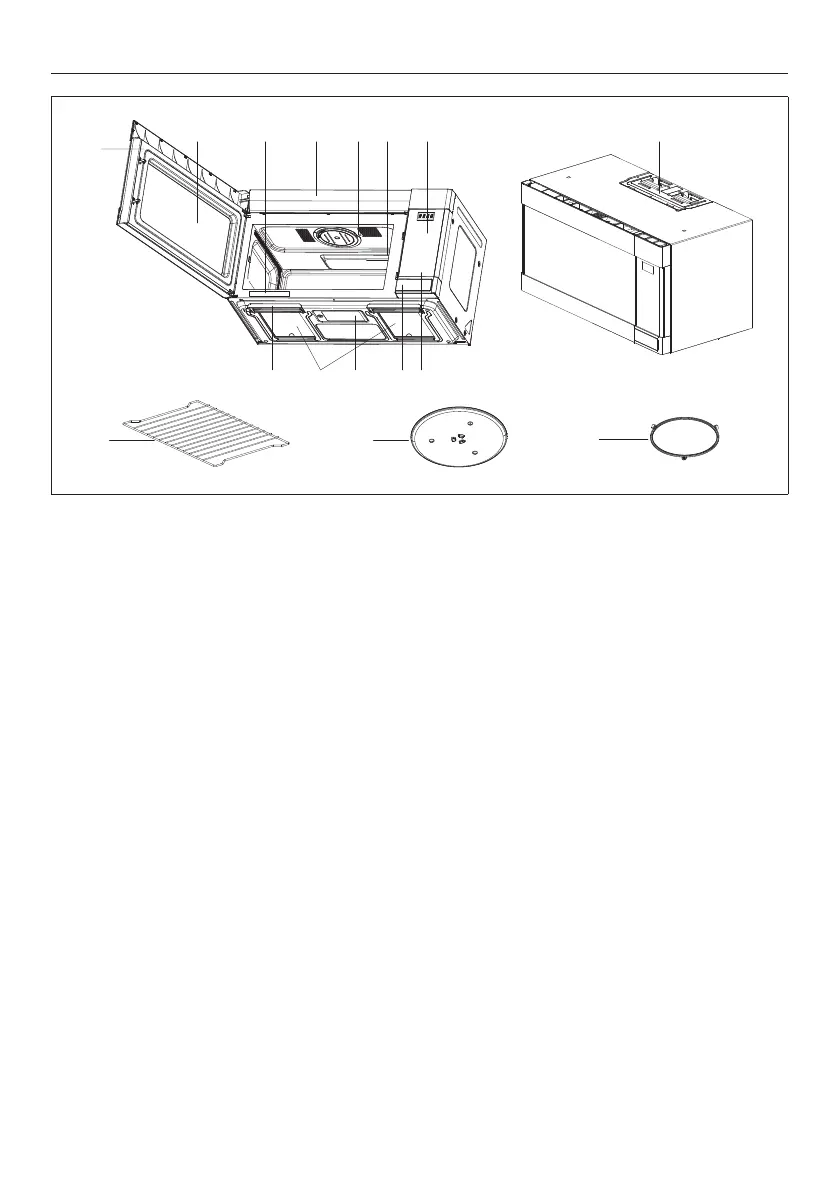

FIRST USE
1
2 3 4 5 6 7
13
12 11 10
9 8
14
15
16
1 DOOR LATCHES
2 WINDOW with METAL SHIELD - Screen
allows cooking to be viewed while
keeping microwaves confined in oven.
3 MODEL NUMBER PLATE - Located on
the front wall of the microwave oven.
4 CHARCOAL FILTER (behind Vent Grille)
5 OVEN LIGHT
6 WAVEGUIDE COVER - Protects the
microwave outlet from splashes of
cooking foods.
7 TOUCH CONTROL PANEL and DIGITAL
DISPLAY - For detailed information on
each feature, see Features Diagram
section.
8 HOOD CONTROLS
Vent Fan - Press Turbo, High, Low or
Off.
Light - Press On or Off
9 DOOR BUTTON - To open the door
push the door open button.
10 COOKTOP LIGHT
11 GREASE FILTERS
12 HANDLE FILTERS - Use to insert Grease
Filters.
13 VENTILATION MOTOR - Your microwave
oven is designed for adaptation to the
following three types of ventilation.
(Recirculation ventilation system, Vertical
ventilation system, Horizontal ventilation
system)
See Installation Guide to select the
type of ventilation required for your
installation.
14 METAL RACK - Use for extra space when
cooking with more than one container at
the same time.
15 TURNTABLE / GLASS TRAY - Composed
of glass tray and roller guide. The roller
guide is placed first in the bottom of the
microwave and supports the glass tray.
Both parts must be in place when using
the microwave oven.
16 Guide Roller Ring
