• there is adequate flow of fresh air from outside the cabinetry to the base of the cooktop if the cooktop is installed
directly above an oven or its base is accessible through a cupboard or drawer space after installation, a thermal
protection barrier is installed below the base of the cooktop (see below)
• the isolating switch is easily accessible by the customer
• you complete the ‘Final checklist’ at the end of these installation instructions.
The thermal protection barrier must be:
• removable
• heat-resistant
• made from low thermal conductivity material
• at least 20 mm below the base of the cooktop to ensure adequate ventilation

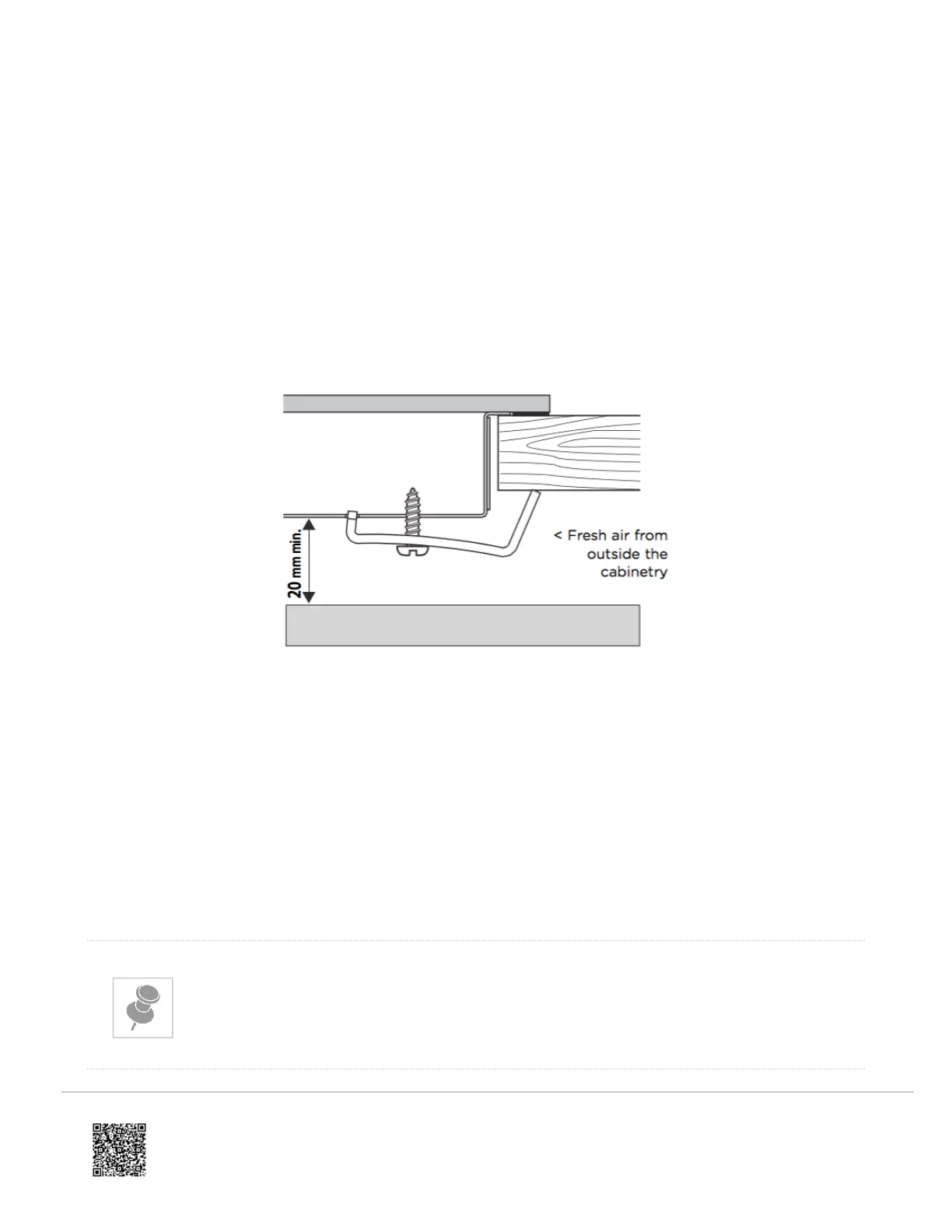

Thermal protection barrier
Fastening the cooktop to the bench
1. Turn the cooktop upside down and place it on a soft surface.
2. Spread the seal around the edges of the ceramic glass with the adhesive side facing down, making sure that
the whole perimeter is sealed. Cut off any excess material.
3. Mount the supplied clamps (A) and screws (B) onto the cooktop, as shown (without tightening the screws).
4. Place the cooktop into the cutout, then tighten the screws to clamp the cooktop securely to the bench.
5. Using a sharp cutter or trimmer knife, trim the excess sealing material around the edge of the cooktop. Take
care not to damage the benchtop.
If your bench is thicker than 40 mm, recess the underside to between 30 and 40 mm.
