Installation instructions

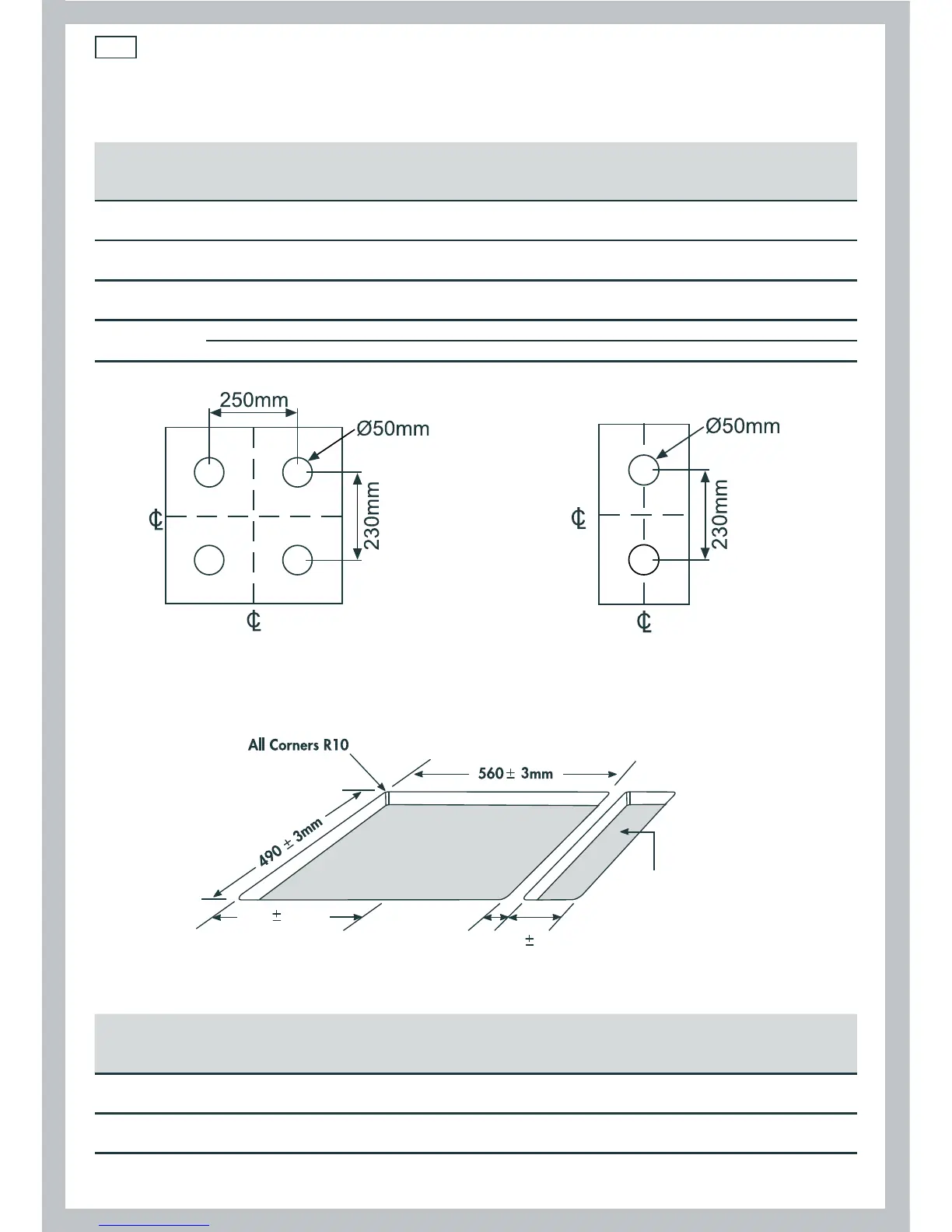

Fig. 1 Thermal protection barrier - Dimensions and locations of ventilation holes
Dimensions and clearances
Models Product Width
(side to side)
Product Depth
(front to back)
Product Height
(below benchtop)
CT560C 578 mm 511 mm 60 mm
CT5602F 578 mm 511 mm 60 mm
CT2802 289 mm 511 mm 55 mm
CT6551S
(cooktop) 578 mm 511 mm 45 mm
(controls) 88 mm 511 mm 63 mm
270 3mm
(CT2802
COOKTOP)
CT6551S
(CONTROL
PANEL)
Cutout for
CT6551S only
70 3mm
25mm
(min)
CT560C, CT5602F, CT6551S
Fig. 2 Cutout dimensions
Minimum clearance
(below benchtop)
CT560C 70 mm CT2802 60 mm
CT5602F 70 mm CT6551S 65 mm
CT560C, CT5602F, CT6551S CT2802
